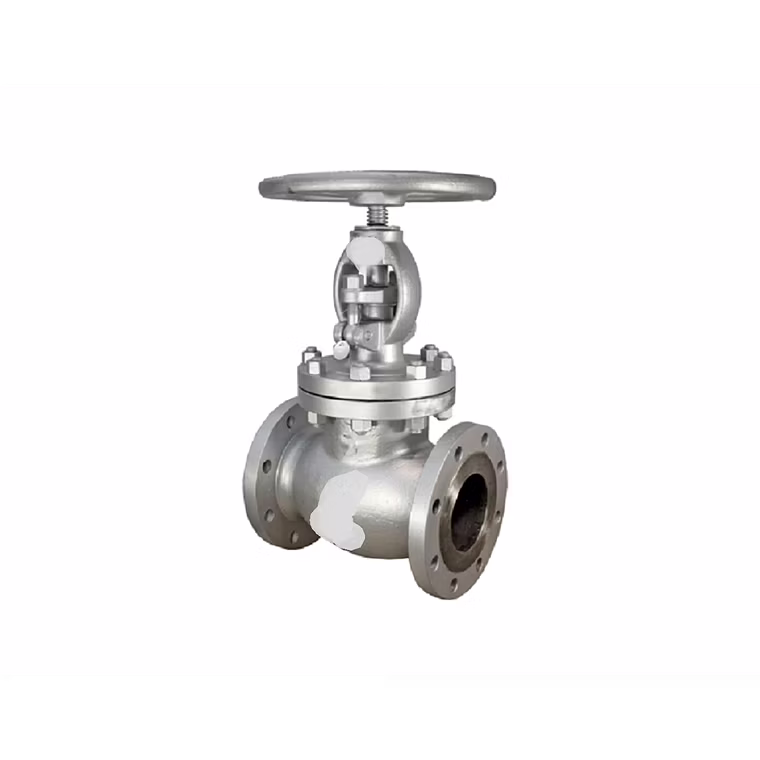

C-Way Engineering Exports presents a high-quality A.S.A 150 class 300mm cast steel globe valve with flanged ends, specifically designed for rigorous applications in thermal and nuclear power plants. Our globe valve is engineered from robust cast carbon steel, ensuring durability and reliability for flow regulation in pipelines. Featuring a deep stuffing box, bolted bonnet construction, and stainless steel trims, this valve is adept at handling throttle and frequent operation with ease. It comes in various pressure classes—Class 150 and Class 300—and sizes ranging from 25mm to 300mm. The valve's design incorporates gear operation and motor actuation, making it suitable for a variety of industrial applications, including marine, mining, pulp and paper, and chemical processing. With an optional Stellite Gr.6 hard-faced seating surface and back seat arrangement for on-line serviceability, our globe valve adheres to high manufacturing standards such as BS - 1873/API, ensuring performance and longevity in demanding environments.
Key Features
| Features | Description |
|---|---|
| Construction | Bolted Bonnet, Outside Screwed Rising Spindle |
| Body Materials | Cast Carbon Steel |
| Trims | Stainless Steel |
| End Connection | Flanged BS/ASA/DIN |
| Pressure Class | A.S.A Class 150, Class 300, Class 150/300/600 |
| Sizes Available | 25mm to 300mm |
| Operation Types | Gear Operation, Motor Actuation |
| Special Features | Deep Stuffing Box, Stellite Gr.6 seating surfaces, Back Seat arrangement |
| Attributes | Description |
|---|---|
| Manufacturing Standard | BS - 1873/API |
| Applications | Sugar mill, Marine & Mining, Distillery Plant, Fertilizer Plant, Pulp & Paper mill, Industrial Chemical Piping, Oil, Gas, Petrochemical Plant, Textile and Process Industries, Thermal and Nuclear Power Plant |
| Related Products | Pressure Reducing Valve, Pneumatic Actuated Butterfly Valves, Ball Valve, Butterfly Valve, Motorized Valve, Globe Valve, Gate Valve, CPVC, UPVC, PVC Valve, Pneumatic Actuator Accessories |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
C-Way Engineering Exports are one of the largest Manufacturer of Globe Valve - Cast Steel Globe Valve Maintain with Huge Stocks. A globe valve may be a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
| Sizes | 25mm to 300 mm |
| Pressure Class |
ASA: Class-150, Class 300, Class 150/300/600
|
| Manufacturing Standard | BS - 1873/API |
| Body Materials | Cast Carbon Steel |
Globe valves are named for their spherical body form with the 2 halves of the body being separated by an internal baffle. This has a gap that forms a seat onto that a movable plug can be screwed in to shut (or close) the valve.
Globe Valve The plug is additionally known as a disc or disk. In globe valves, the plug is connected to a stem that is operated by screw action using a hand wheel in manual valves. Typically, automatic globe valves use switch stems instead of threaded and are opened and closed by an actuator assembly. Though globe valves within the past had the spherical bodies that gave them their name, several modern globe valves do not have much of a spherical shape. However, the term globe valve remains usually used for valves that have such an internal mechanism. In plumbing, valves with such a mechanism are also often known as stop valves since they don't have the global appearance, but the term stop valve may refer to valves that are used to stop flow even when they have other mechanisms or designs. Globe valves are used for applications requiring throttling and frequent operation.
