ABB Low voltage transformer

Advance Information*

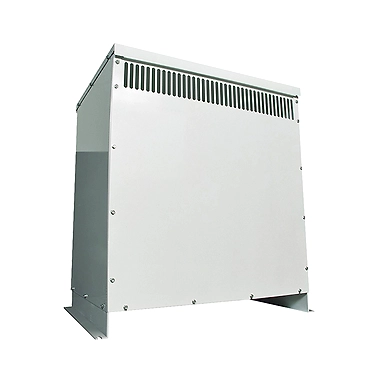

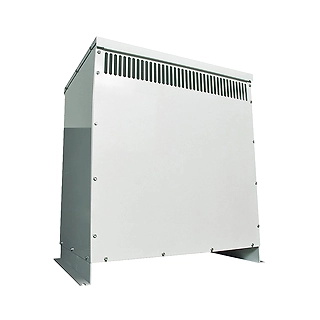

ABB Low Voltage Dry Type Transformers

Introduction

ABB's Low Voltage Dry Type Transformers are the epitome of robust engineering and advanced electrical design, tailored to meet the demands of modern building and industrial applications. Engineered to provide reliable, efficient, and safe power conversion, these transformers incorporate cutting-edge materials and technology, ensuring long-lasting performance even under demanding conditions.

Key Features

• Durable Construction: Built to withstand the rigors of various environments, these transformers feature robust and corrosion-resistant enclosures.
• Energy Efficiency: Designed in compliance with DOE 2016 efficiency standards, these transformers ensure minimal energy loss and operational costs over their lifespan.
• Versatile Windings: Available with either aluminum or copper windings, allowing for customizable performance and cost-saving options.
• Temperature Rise Ratings: Offered in all three standard temperature rise ratings – 80°C, 115°C, and 150°C – to suit different applications and environmental conditions.
• Easy Installation: Designed with contractors in mind, ABB low voltage dry type transformers are straightforward to install, reducing labor time and costs.
• Sound Dampening: Features that minimize operational noise, making them suitable for installation in noise-sensitive environments.
• Safety Features: Equipped with safety mechanisms, including thermal overload protection and reinforced insulation, ensuring safe operation.

Construction Details

• Core: Precision-engineered with high-quality laminated steel cores to maximize efficiency and minimize core losses.
• Windings: Available in high-conductivity aluminum or copper, providing optimal performance and reliability to meet your specific needs.
• Enclosure: Rugged enclosures designed to protect internal components from dust, moisture, and other environmental factors, enhancing the lifespan of the transformer.

Efficiency and Performance

• DOE 2016 Efficiency Standards: These transformers meet the stringent efficiency requirements set forth by the Department of Energy, ensuring they deliver superior performance while reducing energy costs.
• Thermal Management: High-efficiency thermal management systems that ensure the transformers operate within safe temperature ranges, improving performance and longevity.
• Low Noise Operation: Advanced sound dampening features reduce noise levels, making ABB transformers suitable for a variety of installation environments.

Applications

• Commercial Buildings: Ideal for office buildings, shopping centers, and other commercial spaces requiring reliable and efficient power distribution.
• Industrial Use: Suitable for factories, production facilities, and other industrial environments where durable and efficient power transformers are essential.
• Institutional: Perfect for schools, hospitals, and other institutions where safety and reliability are paramount.
• Data Centers: Provides the reliability and efficiency needed for data center infrastructure, ensuring consistent power supply and reducing the risk of downtime.

Technical Specifications

• Voltage Ratings: Available in various voltage ratings to cater to different power distribution needs.
• Phase: Single-phase and three-phase models are available, ensuring compatibility with a wide range of power distribution systems.
• Frequency: Designed to operate efficiently at standard power frequencies, ensuring seamless integration into existing electrical systems.
• Insulation Class: High-quality insulation materials ensure safety and enhance performance by preventing electrical breakdowns and extending the transformer's life.
• Mounting Options: Flexible mounting options, including wall, floor, and pole-mounted configurations.

Temperature Rise Options

• 80°C Rise: Offers the highest efficiency and longest life expectancy but may have higher initial costs.
• 115°C Rise: A balance between efficiency and cost, suitable for many standard applications.
• 150°C Rise: More cost-effective with slightly reduced efficiency, ideal for less demanding applications.

Customization and Modularity

• Custom Winding Material: Choose between aluminum or copper windings based on your needs for performance and budget considerations.
• Enclosure Customization: Options for different enclosure types and ratings to match your specific environmental conditions.
• Input/Output Configurations: Customizable input and output connections to ensure seamless integration into your existing power systems.

Installation and Maintenance

• Easy Installation: Designed for straightforward installation with clear labeling and accessible connection points, reducing time and labor costs.
• Low Maintenance: Engineered for minimal maintenance, these transformers feature durable components and construction that reduce the need for frequent service.
• Accessibility: Easy access to internal components allows for quick inspection and maintenance when necessary, minimizing downtime.

ABB QL Series Advantages

• Contractor Preferred: The QL series’ user-friendly design and reliability make it a favorite among electrical contractors.
• Longevity: Built to last with high-quality materials and rigorous testing, ensuring a long operational life and return on investment.
• Support and Service: Backed by ABB’s extensive support network and service options, ensuring that help is readily available when needed.

Conclusion

ABB's Low Voltage Dry Type Transformers provide the perfect
