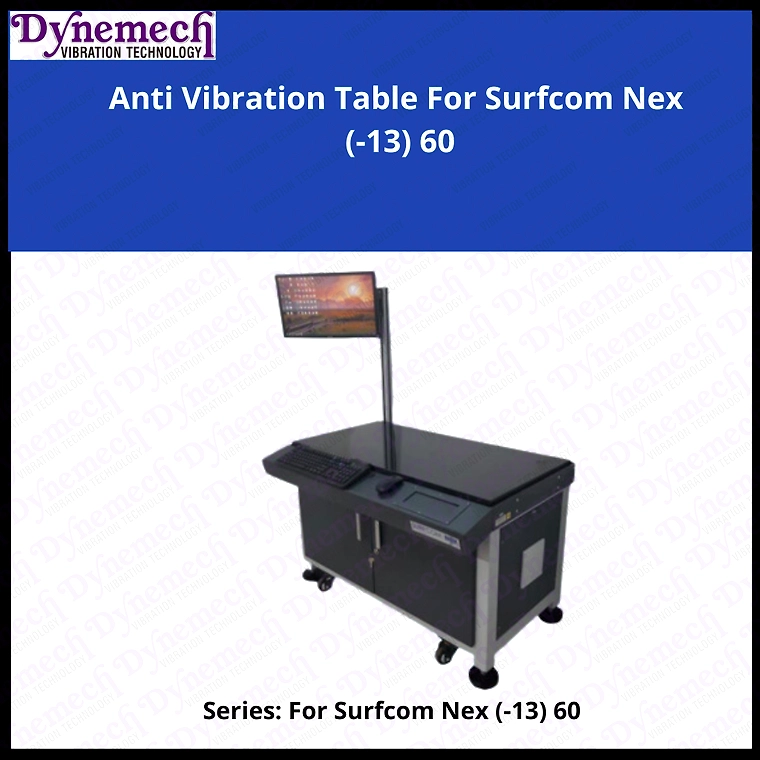

The Dynemech Anti Vibration Precision Metrology Table for Zeiss Surfcom Nex (13)P-60 is a specialized laboratory solution designed to counteract vibrations caused by industrial machinery. Ideal for testing and quality control laboratories located near high-vibration environments, this table ensures accurate measurements when working with analytical and laboratory balances or control scales. The robust granite base of dimensions 900mm x 600mm x 50mm provides a solid foundation, while its advanced vibration damping technology, including Elastomeric, Pneumatic, or Spring Based Damping options, guarantees precision and stability. The table comes equipped with a front double door for easy access, a dedicated keyboard panel, and a joystick pocket, making it user-friendly for various laboratory applications. With its durable RAL 9002 structure and graphite grey components, this metrology table not only performs exceptionally but also integrates seamlessly into any lab setup, elevating your testing capabilities to new heights.
Key Features
| Features | Description |
|---|---|
| Granite Base Size | 900 mm x 600 mm x 50 mm |
| Damping Type | Elastomeric, Pneumatic or Spring Based Damping |
| Construction Structure | 60x60 mm HR tubular structure with cross members |
| Vibration Isolation Pads | 9 nos AV pads between structure and granite base |
| Accessibility Features | Front double door, keyboard panel, laser cut joystick pocket |
| Mobility | 4 nos - 3” wheels for easy movement |
| Color Finish | RAL 9002 for the structure, Graphite Grey for side sheet and key panel |
| Monitor Bracket | Monitor bracket provided on L.H rear with swivelling facility |
| Attributes | Description |
|---|---|
| Granite Surface Plate Accuracy | Grade-1 accuracy for critical measuring |
| Cross Members | 4 nos DLP3 at ground level |
| Table Height | Adjustable via levelling feet |
| Total Weight Capacity | Designed for stability under high-load conditions |
| Keyboard Panel Features | Allowing placement for keyboard and mouse with integrated support |
| Vibration Control Mechanism | Two locations of vibration damping |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size: L-900 B-600 T-50 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front double door
Wrap around construction
Front keyboard panel provided for placing
keyboard & mouse over the surface
with laser cut joystick pocket with top rim and Monitor Bracket on L.H Rear with swivelling and Structure- RAL 9002, tilting fecility Side sheet, door & Key board panel- Graphite Grey
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-900 B-600 T-50 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front double door
Wrap around construction
Front keyboard panel provided for placing
keyboard & mouse over the surface
with laser cut joystick pocket with top rim and Monitor Bracket on L.H Rear with swivelling and Structure- RAL 9002, tilting fecility Side sheet, door & Key board panel- Graphite Grey
