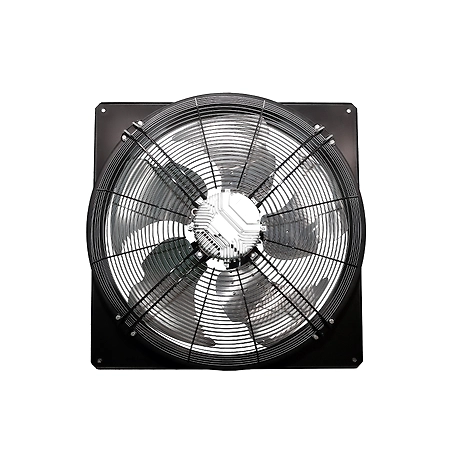

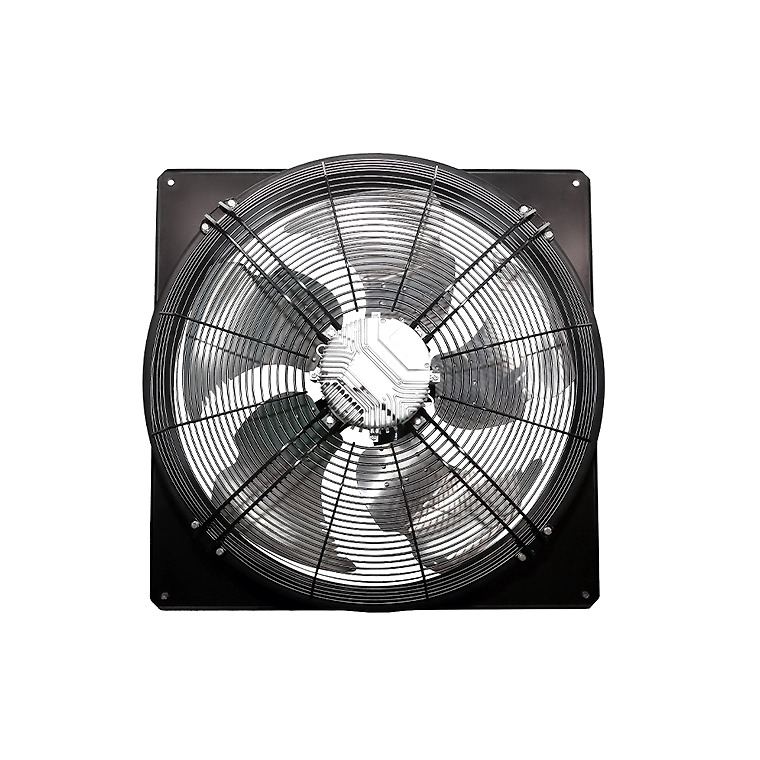

The Axial Fan Series offers high-efficiency ventilation solutions for industrial and commercial applications. These fans are designed to move large volumes of air with minimal energy consumption, making them ideal for cooling, ventilation, and air circulation. The Axial Fan Series is known for its reliable performance, low noise levels, and durable construction, making it a preferred choice for HVAC systems, manufacturing facilities, and more.
We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.
Advance Information*
The Axial Fan Series is engineered to provide maximum efficiency and reliability in ventilation for both industrial and commercial applications. These fans operate at power ratings between 370W to 3300W, with a max speed of 1150 r/min, making them suitable for a wide array of cooling and air circulation needs. With airflow capabilities reaching up to 35,000 m³/h, they excel in environments where large volumes of air need to be moved swiftly and efficiently. Featuring robust aluminum alloy blades and steel wheel hubs, the impellers are designed for durability and performance, enhanced further by an overall electrostatic spraying. Available in a range of sizes, from 450mm to 950mm, this Axial Fan Series caters to diverse installation requirements. With options for 0-10V, PWM, and RS485 speed regulation, these fans can be easily integrated into existing systems. The insulation class F and protection degrees of IP55 and IP66 ensure that these fans can withstand tough operating conditions while maintaining low noise levels. Our commitment to customer satisfaction means we have regular rating motors in stock, and non-stock motors can be made available in a short time to meet specific customer needs. Competitive pricing and favorable commercial terms are also offered. Furthermore, we proudly supply power solutions from renowned manufacturers such as Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, ABB, and Baldor. Trusted by numerous corporate entities and multinational corporations, our fans are a top choice for effective HVAC solutions.
Key Features
- Power Range: 370-3300W
- Max Speed: 1150 r/min
- Frequency: 50/60 Hz
- Max Airflow: 35,000 m³/h
- Supply Voltage: 1~200-277V, 3~380-480V ±10%
- Modes of Speed Regulation: 0-10V/PWM/RS485
- Impeller Material: Aluminum alloy blade, Steel wheel hub, Electrostatic spraying
- Impeller Sizes Available: 450mm to 950mm
- Insulation Class: Class F
- Protection Degree: IP55, IP66
Specifications
- Power Consumption: 370W to 3300W
- Max Speed: 1150 r/min
- Airflow Rate: 35,000 m³/h
- Voltage Options: 1~200-277V, 3~380-480V ±10%
- Regulation Methods: 0-10V, PWM, RS485
- Impeller Material: Aluminum alloy and steel
- Size Options: 450mm, 500mm, 560mm, 630mm, 660mm, 710mm, 760mm, 800mm, 850mm, 900mm, 950mm
- Insulation Rating: Class F
- Ingress Protection: IP55, IP66
- Noise Levels: Low
