Overview

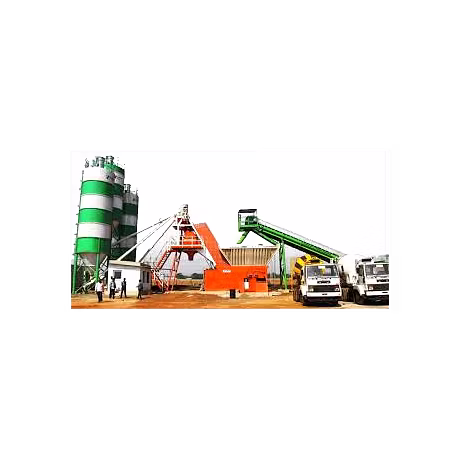

A concrete plant, also known as a batch plant or batching plant, is a comprehensive set of machinery essential for concrete production. This sophisticated equipment combines a variety of raw materials such as water, air, admixtures, sand, aggregate (rocks, gravel, etc.), fly ash, silica fume, slag, and cement to form concrete. Batching plants are a necessity for any major construction project that requires consistent and high-quality concrete mix.

Components of a Batching Plant

Mixers

The core of any batching plant is the mixer. Different mixer types cater to various batch sizes and mixing requirements:

• Tilt Drum Mixer: Known for handling large batches, these mixers are effective and relatively simple to operate.
• Pan Mixer: Features a simple design and is highly efficient for various types of concrete mixtures.
• Planetary Mixer: Delivers high homogeneity of the mix, suitable for complex and critical concrete formulations.
• Single Shaft Mixer: Provides a cost-effective solution for specific applications with easier maintenance.
• Twin Shaft Mixer: Ensures an even mixture with high horsepower motors, suitable for large-scale concrete production where uniformity is essential.

Cement Batchers

These components precisely weigh and add the correct amount of cement into the mix, ensuring consistency and strength in the final concrete product.

Aggregate Batchers

Aggregate batchers measure and dispense aggregates, including sand, gravel, rocks, etc., into the mix. Proper batching of aggregates is crucial for the durability and reliability of the final concrete.

Conveyors and Radial Stackers

Conveyors are used to transport aggregates and other materials within the plant, ensuring a continuous and efficient production process. Radial stackers help in the storage and stockpiling of aggregates, optimizing space and improving material flow.

Aggregate Bins

Separate storage bins for different types of aggregates prevent contamination and ensure proper and precise dosing of each aggregate type into the mix.

Cement Bins and Silos

These bins and silos store cement and other powder materials like fly ash, slag, etc., ensuring they are kept dry and ready for use when needed.

Heaters and Chillers

For plants operating in extreme weather conditions, heaters and chillers manage the temperature of the water mixed with cement, ensuring optimal curing and preventing premature setting or cracking.

Batch Plant Controls

Advanced control systems regulate and monitor the entire batching process, ensuring precision in measurements and mix compositions. These controls can be automated or semi-automated, offering user-friendly interfaces and high accuracy.

Dust Collectors

Dust collectors minimize the escape of fine particles into the air, maintaining environmental standards and promoting workplace safety.

Technical Specifications

While the specific specifications of a batching plant can vary based on the model and manufacturer, general features include:

• Production Capacity: Typically ranges from 30 to 300 cubic meters per hour.
• Mixer Types: Tilt drum, pan, planetary, single shaft, twin shaft.
• Discharge Height: Standard height is around 4 meters to accommodate various transport vehicles.
• Batch Cycle Time: Generally between 30 to 90 seconds per batch.
• Control System: Ranges from simple analog controls to advanced digital interfaces with touch screens and remote access.
• Aggregate Weighing Accuracy: ±2% or better.
• Cement Weighing Accuracy: ±1% or better.

Operational Efficiency

The operational efficiency of a batching plant is determined by several factors, such as:

• Mixing Time: Efficient mixing within a shorter duration ensures faster production cycles.
• Material Handling: Seamless transport of materials without spillage or delay optimizes the production rate.
• Automation: Integration of automation reduces human error and enhances consistency.
• Maintenance: Regular maintenance protocols extend the lifespan and efficiency of the equipment.

Environmental and Safety Features

Modern batching plants come equipped with features designed to minimize environmental impact and ensure safety:

• Dust Suppression: Advanced dust collection and suppression systems to reduce particulate emissions.
• Noise Control: Sound-dampening materials and designs to minimize noise pollution.
• Water Recycling: Systems to recycle and reuse water, reducing wastage and environmental footprint.
• Safety Guards and Sensors: Incorporation of safety guards around moving parts and sensors to detect and prevent potential hazards.

Applications

Batching plants are indispensable in various construction scenarios, including:

• Highway and Road Construction: Ensures the production of durable concrete for road bases and surfaces.
• Residential and Commercial Buildings: Provides consistent concrete mix for structural strength and durability.
• Bridges and Dams: High-quality concrete required for these critical infrastructure projects.
• Precast Products: Production of precast concrete elements like slabs, beams, and columns.

Types of Concrete Produced
