Characteristics:

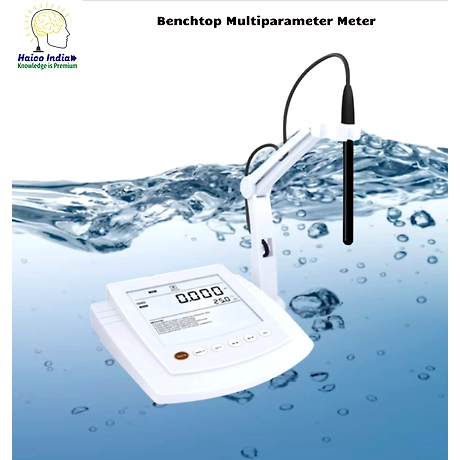

Multiparameter meter contains 15 optional parameters pH, ORP, Ion, conductivity, TDS, salinity, resistivity and DO of the samples.

pH Mode:

• 1 to 5 points push-button calibration with auto-buffer recognition.

• Automatic electrode slope display helps user decide whether to replace the pH electrode.

ORP Mode:

• Single point offset calibration allows adjusting the displayed value to a known standard.

• Relative and absolute millivolt measurements provide accurate ORP readings.

Ion Mode:

• 2 to 5 points calibration including the eight concentration calibration points can be selected.

• Selectable multiple concentration units including the ppm, mg/L and mol/L.

Conductivity/TDS/Salinity/Resistivity Mode:

• 1 to 5 points push-button calibration, automatically recognizes the standard solutions.

• Selectable cell constant, normalization temperature, TDS conversion factor, seawater and

practical salinity measurement modes.

Dissolved Oxygen Mode:

• 1 or 2 points calibration using the air-saturated water and zero oxygen solution.

• Manual salinity and barometric pressure compensations ensure accurate measureme

pH Range: -2.000~20.000pH

Accuracy: ±0.002pH

Resolution: 0.1, 0.01, 0.001pH, Selectable

Calibration Points: 1 to 5 points

Calibration Solutions: USA, NIST, DIN or User-defined

Temperature Compensation: 0~100°C, 32~212°F

Compensation Mode: Manual or Automatic

mV  Range: -1999.9~1999.9mV

Accuracy: ±0.2mV

Resolution: 0.1, 1mV, Selectable

Calibration Points: 1 point (Only for Relative mV mode)

Calibration Range: ±200mV

Ion  Range: 0.001~19999ppm, mg/L, mol/L (Refer to the range of ISE)

Accuracy: ±0.5% F.S (Monovalent), ±1% F.S (Divalent)

Resolution: 0.001, 0.01, 0.1, 1

Calibration Points: 2 to 5 points

Calibration Solutions: 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mg/L, mol/L

Temperature Compensation: 0~100°C, 32~212°F

Compensation Mode: Manual or Automatic

Conductivity  Range: 0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm

Accuracy: ±0.5% F.S

Calibration Points: 1 to 5 points

Calibration Solutions: 10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm

Temperature Compensation: 0~100°C, 32~212°F, Manual or Automatic

Temperature Coefficient: 0.0~10.0%/°C

Compensation Modes: Linear or Pure Water

Cell Constant: K=0.1, 1, 10 or User-defined

Normalization Temperature: 20°C or 25°C

TDS  Range: 0~100ppt (Max. 200ppt, depending on factor setting)

Accuracy: ±1% F.S

TDS Factor: 0.1~1.0 (Default 0.5)

Salinity  Range: 0~10ppt (Max. 80ppt)

Accuracy: ±1% F.S

Measurement Modes: Seawater or Practical Salinity

Resistivity  Range: 0~100MΩ

Accuracy: ±1% F.S

Resolution: 0.01, 0.1, 1

Dissolved Oxygen Range: 0.00~20.00mg/L (or ppm)

Accuracy: ±0.2mg/L

Resolution: 0.01mg/L

Calibration Points: 1 or 2 points

Temperature Compensation: 0~50°C, 32~122°F, Automatic

Pressure Correction: 60.0~112.5kPa, 450~850mmHg

Salinity Correction: 0~50g/L

% Saturation of Oxygen  Range: 0.0~200.0%

Accuracy: ±2.0%

Resolution: 0.1, 1%

Temperature Range: 0~105°C, 32~221°F

Accuracy: ±0.5°C, ±0.9°F

Resolution: 0.1°C

Calibration Points: 1 point

Calibration Range: Measured value ±10°C

Others  Features:

• Hold Function Manual or Automatic endpoint detection
• Stability Conditions Low or High
• Calibration Due 0 to 31 days
• Power Off Manual or Automatic (10, 20, 30 minutes)
• Reset Function Yes
• Memory Stores up to 500 data sets
• Output USB Communication Interface

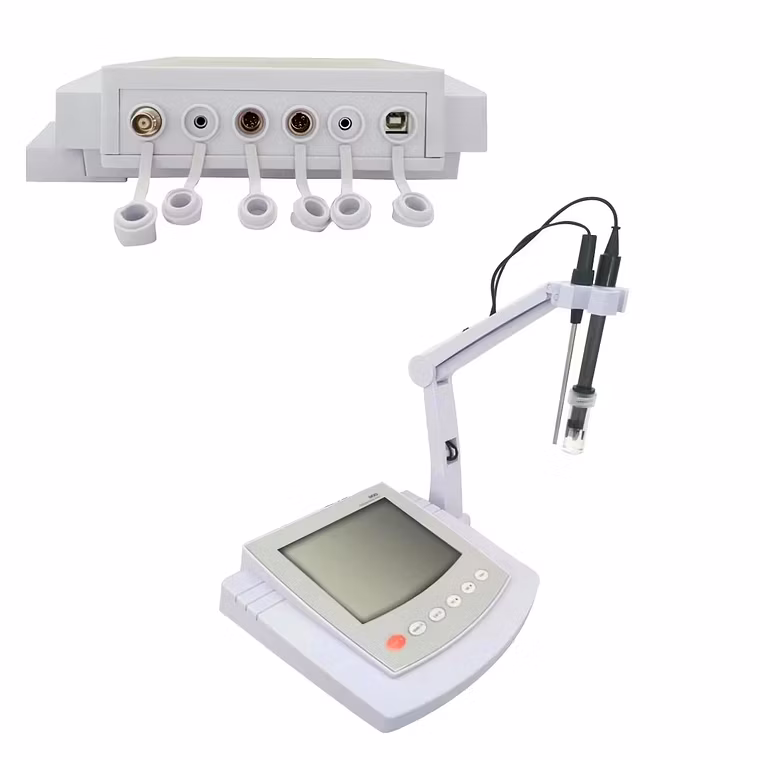

• Connector BNC, 6-pin Mini Plug
• Display LCD (130×110mm)
• Power Requirements DC5V, using AC adapter, 220VAC/50Hz
• Dimensions 210(L)×188(W)×60(H)mm
• Weight 1.5kg
