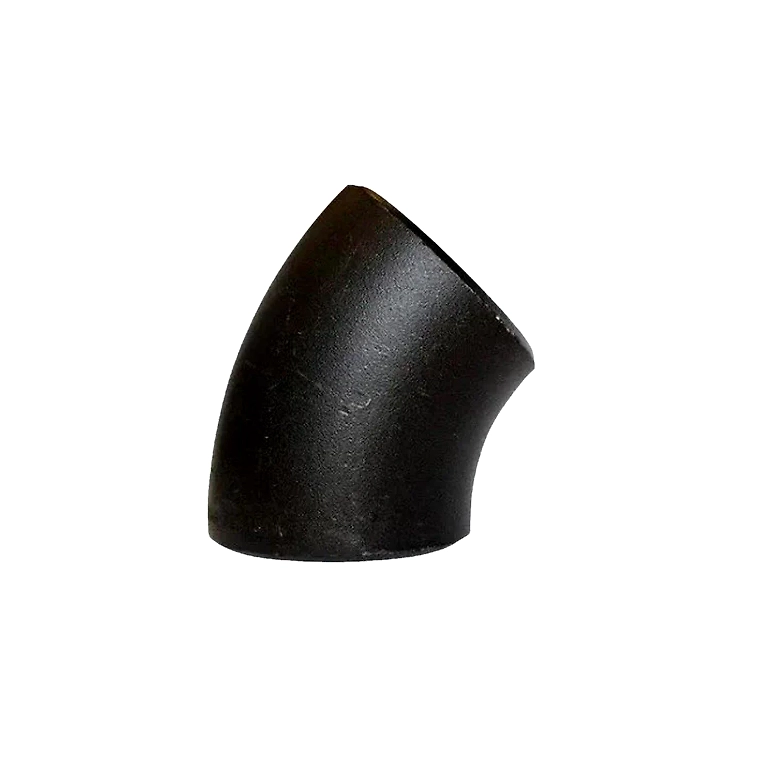

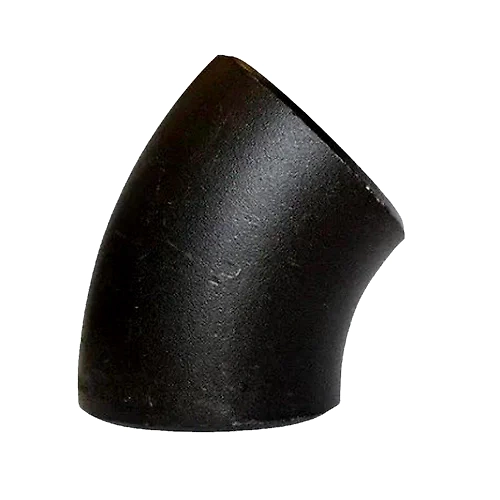

The Butt Weld Long Radius 45 Degree Elbow from Newzel Industries is an essential component in any butt weld piping system designed to create a precise turn at a 45-degree angle. This fitting is manufactured with a long radius which contributes to reduced pressure drop, making it an efficient choice for fluid and gas transport systems. Composed of high-quality materials, including various grades of stainless steel, carbon steel, and other alloys, this elbow fitting provides durability and reliability in diverse applications. The centerline radius of this elbow is 1.5 times the nominal pipe diameter, allowing it greater flexibility in installation compared to standard short-radius elbows. Our butt weld fittings can be tailored to meet specific piping layout needs, offering the convenience of customizable angles in particular configurations. Choose Newzel Industries for your piping component needs and experience high-quality manufacturing and exceptional customer service.
Key Features
| Features | Description |
|---|---|
| Material Options | Available in Stainless Steel, Carbon Steel, Monel, Nickel, Inconel, Incoloy, Hastelloy, Titanium, Alloy Steel, Duplex & Super Duplex Steel. |
| Degree of Bend | Change direction with a precise 45-degree degree turn. |
| Pressure Drop | Designed for low pressure drop for improved flow efficiency. |
| Centerline Radius | 1.5 times the nominal pipe diameter for optimal performance. |
| Customization | Can be cut at lesser degrees as per specific piping layouts. |
| Application | Ideal for fluid and gas transport, ensuring smooth directional changes. |
| Attributes | Description |
|---|---|
| Elbow Type | Butt Weld Long Radius 45 Degree Elbow |
| Nominal Pipe Diameter | Customizable based on requirement |
| Length | Long radius length specified as per industry standards. |
| Weight | Varies based on material type and pipe diameter. |
| Standards Compliance | Manufactured in compliance with ANSI/ASME standards. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India

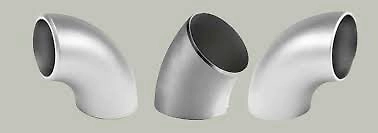

We at Newzel Industries are manufacturers & exporters of Pipe fittings, Flanges & Forgings in various grades as well as stockiest for Pipes/Sheets and Round bars. According to the angle of the elbow, there are 45° elbow, 90° elbow and 180° elbow. So there’s a lot of elbow type, orders often take the following means: “LR STD 90°8”, indicating a long radius, pressure level of std,90° 8 “elbow, or,” SR XS 45°4 “for short radius, pressure grade xs,45°” elbow. They're Available in all grades of Stainless Steel, Carbon Steel, Monel, Nickel, Inconel, Incoloy, Hastelloy, Titanium, Alloy Steel, Duplex & Super Duplex Steel.
Butt weld long radius 45 degree elbow is used for 45 degree turn on piping in butt weld piping system. Long radius 45 degree elbow changes the direction by 45 degrees. Long radius elbows are preferred due to their low pressure drop. They can also be cut at a lesser degree if required in piping layout. Their centerline radius is 1.5 times the nominal pipe diameter. CONTACT US TODAY FOR ENQUIRIES & QUOTATONS.
