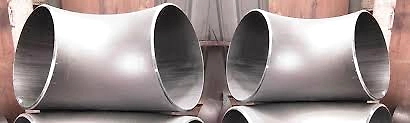

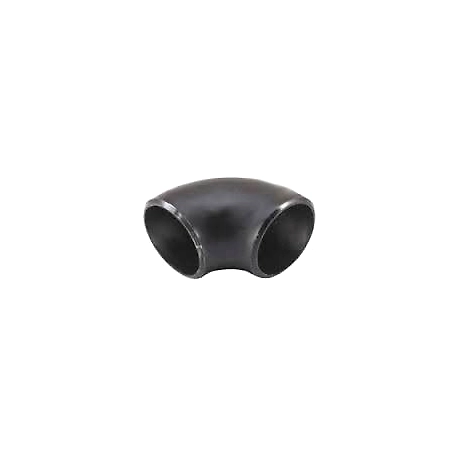

The Butt Weld Short Radius 90 Degree Elbow from Newzel Industries is an essential component for piping systems where space constraints are significant. Constructed from high-quality materials, this elbow is designed to provide seamless performance in directing the flow of fluids and gases at a right angle. The unique short radius design measures 1 x NPS (Nominal Pipe Size) from the end of the elbow to the centerline, making it an excellent choice for installations that require tighter turns without compromising the integrity of the system. Our elbows are compatible with a variety of materials, including Stainless Steel, Carbon Steel, and other specialty alloys, thus ensuring durability and resistance under various operational conditions. Ideal for industries ranging from petrochemicals to manufacturing, the Butt Weld Short Radius 90 Degree Elbow stands out for its reliability and versatility.
Key Features
| Features | Description |
|---|---|
| Material Options | Available in Stainless Steel, Carbon Steel, Monel, Nickel, Inconel, Incoloy, Hastelloy, Titanium, Alloy Steel, Duplex & Super Duplex Steel. |
| Angle | 90 degrees. |
| Short Radius Design | Centerline radius is equal to the nominal pipe size (1 x NPS). |
| Customizable | Can be cut to lesser degrees as per piping layout requirements. |
| Space Efficiency | Perfect for tight spaces in industrial settings. |
| Application Versatility | Suitable for various industries such as petrochemicals and manufacturing. |
| Attributes | Description |
|---|---|
| Type | Butt Weld Short Radius 90 Degree Elbow |
| Diameter | Determined by Nominal Pipe Size (NPS) |
| Appliances | Industrial piping systems requiring tight bends |
| Custom Fabrication | Available for bespoke requirements. |
| Standards | Manufactured to industry standards for quality assurance. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India
We at Newzel Industries are manufacturers & exporters of Pipe fittings, Flanges & Forgings in various grades as well as stockiest for Pipes/Sheets and Round bars. The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the long radius version, and in addition the 90° and 180° elbows both in the short radius version. They're Available in all grades of Stainless Steel, Carbon Steel, Monel, Nickel, Inconel, Incoloy, Hastelloy, Titanium, Alloy Steel, Duplex & Super Duplex Steel.
Short Radius 90 degree elbow is the same as LR90 except for the measurement between end of elbow to center line is 1 x NPS. Butt weld short radius 90 degree elbows are used where space is limited. They are available only in 90 degrees but they can be cut to lesser degrees if required as per piping layout. Centerline radius of short radius elbows is the same as its nominal pipe diameter.
