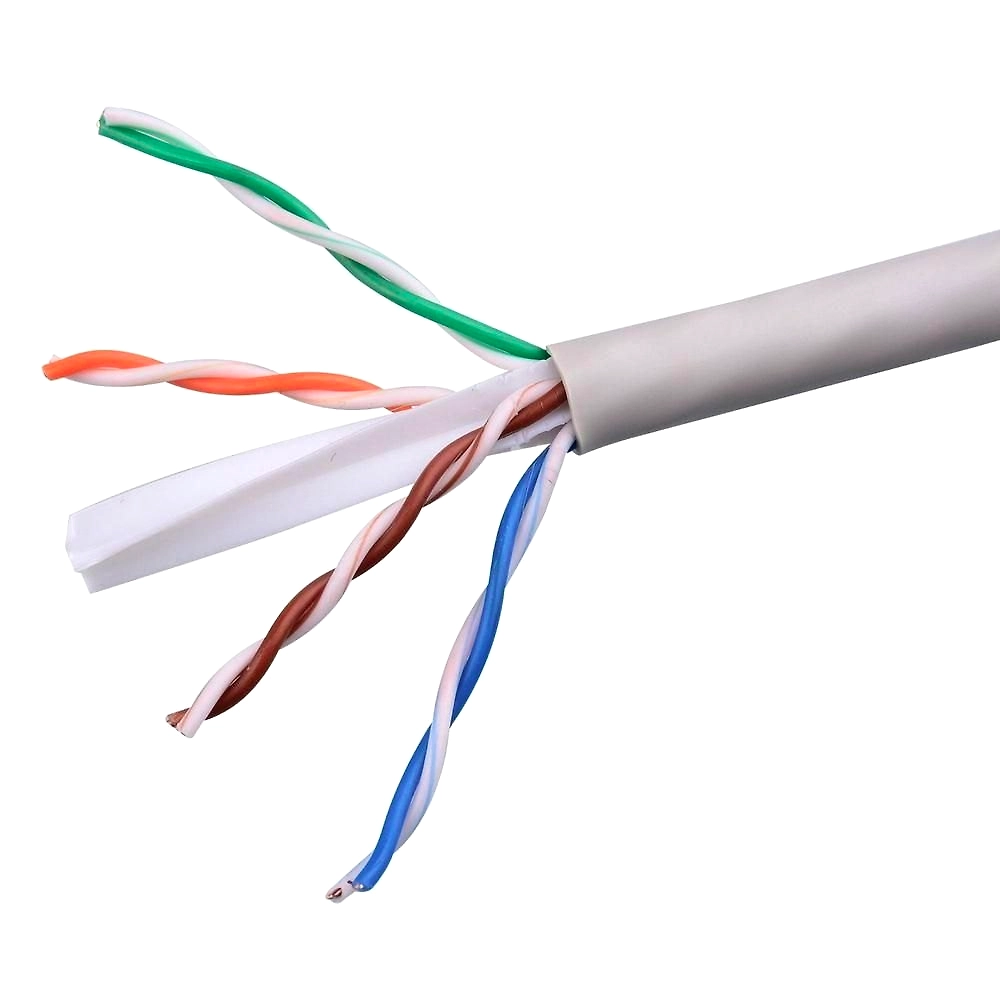

The CAT6 UTP 23AWG Solid Cable (305M) is engineered to deliver top-tier performance for modern networking environments. With the capability of supporting Gigabit Ethernet speeds up to 1000 Mbps, this cable is perfect for high-speed data transmission, making it ideal for data centers, enterprises, and structured cabling systems. Featuring solid bare copper conductors, the CAT6 cable ensures exceptional signal stability and reliability. This cable meets TIA/EIA-568-C.2 Category 6 standards, guaranteeing that it adheres to the highest industry benchmarks for quality. With an impressive bandwidth performance of 250 MHz, the CAT6 cable facilitates seamless data flow, ensuring that your network runs smoothly and efficiently. Whether you're upgrading your current systems or building a robust network from scratch, the CAT6 UTP 23AWG Solid Cable is your go-to solution for dependable and fast networking. Equipped with crucial insulation materials like HD-PE and a precision outer diameter of 6.1mm ±0.2, this cable maintains optimal performance under a variety of conditions. Choose our CAT6 UTP 23AWG Solid Cable to future-proof your networking capabilities today!
Key Features
| Features | Description |
|---|---|
| Supports Gigabit Ethernet | Up to 1000 Mbps speed |
| High Bandwidth | Operates at 250 MHz |
| Conductor Type | 23 AWG Solid Bare Copper |
| Durability | Meets TIA/EIA-568.C.2 Category 6 standards |
| Cable Length | 305 meters |
| Attributes | Description |
|---|---|
| Category | 6 UTP Solid Cable |
| Conductor | 23 AWG Solid Bare Copper |
| Insulation Material | HD-PE |
| Outer Diameter (OD) | 6.1mm ±0.2 |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330pF/100m |
| Delay Skew | Information not provided |
Key Words
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: CAT Cable 6
Country Of Origin: India
Technical Specifications:
🔌 Category: 6 UTP Solid Cable
⚙️ Conductor: 23 AWG Solid Bare Copper
🛡️ Insulation Material: HD-PE
📏 Outer Diameter (OD): 6.1mm ±0.2
📡 Resistance Unbalance: 5% Max
⚡ Capacitance Unbalance: 330pF/100m
⏳ Delay Skew: <45nS
Why Choose This CAT6 UTP Cable?
✔️ Gigabit Ethernet Support – Ensures fast and stable 1000 Base-T (1 Gbps) connections
✔️ High Bandwidth Performance – Operates at 250 MHz, ideal for data-intensive applications
✔️ Superior Conductor Quality – 23 AWG solid bare copper, ensuring minimal signal loss & better conductivity
✔️ Reliable Insulation & Durability – HD-PE insulation provides better resistance to interference
✔️ Industry-Compliant Standards – TIA/EIA-568.C.2 & ISO/IEC Class E certified
✔️ Low Signal Distortion – Features 5% max resistance unbalance, capacitance unbalance of 330pF/100m, and <45nS delay skew
This CAT6 UTP cable is ideal for high-speed networking, including LAN, data centers, offices, and structured cabling installations, ensuring efficient, stable, and interference-free performance.
