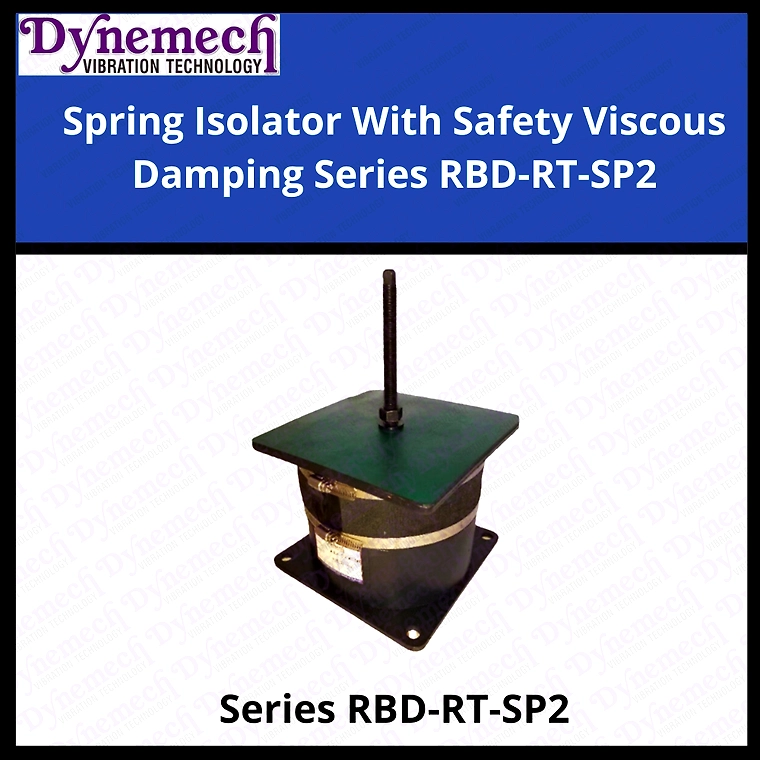

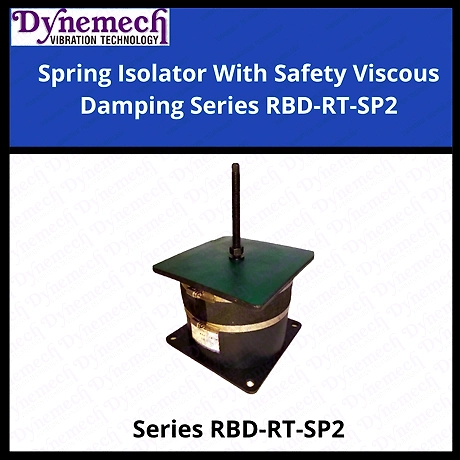

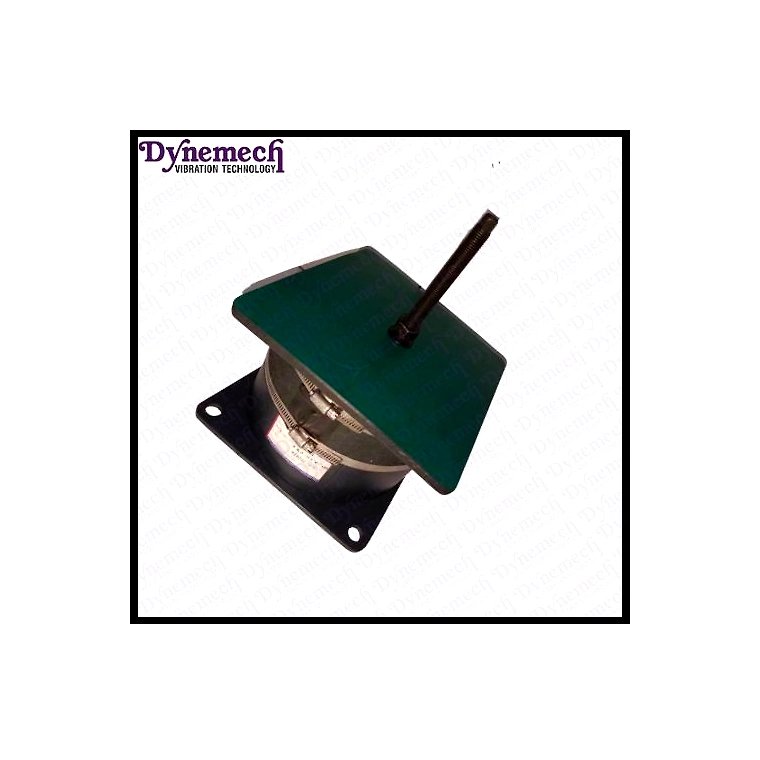

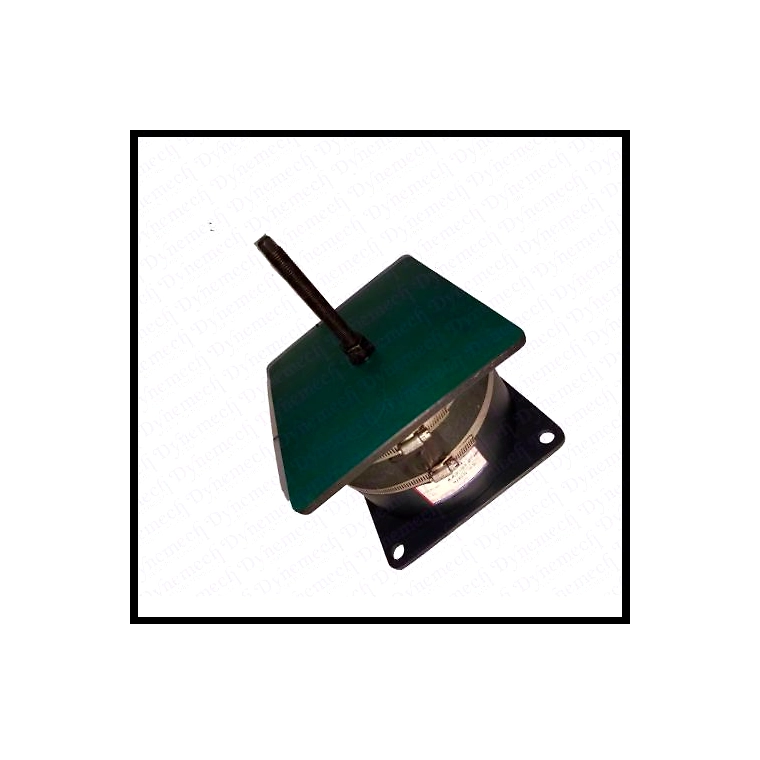

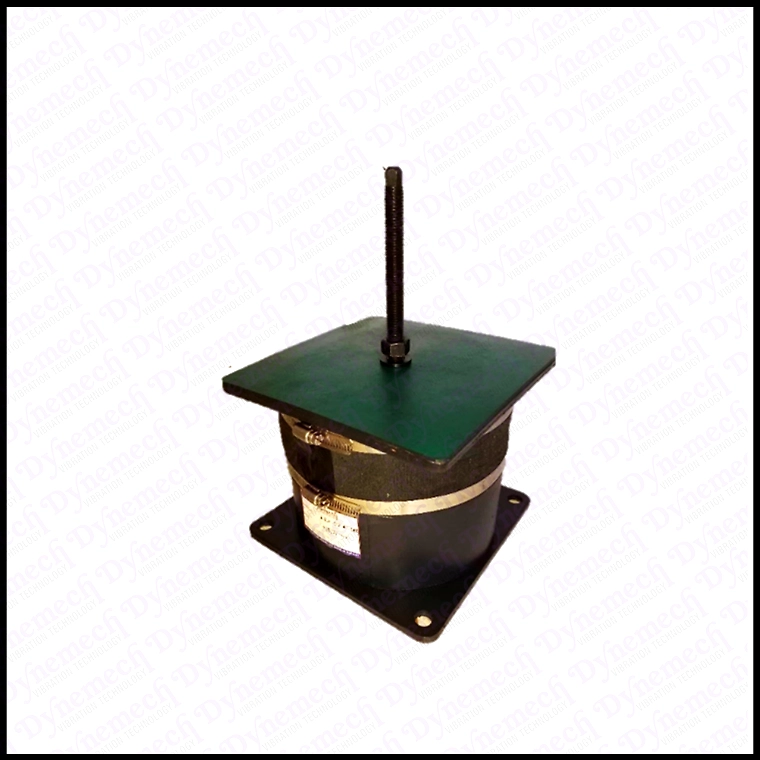

The Compact Spring-Viscous Vibration Damping Elements Series RBD-RT-SP2 by Dynemech is a high-quality anti-vibration solution designed specifically for the Indian industry. With over a decade of experience, Dynemech offers a comprehensive range of vibration control products tailored for various mechanical needs. This model is engineered to provide effective vibration isolation for heavy machinery including presses and generators. It features a natural frequency range of 3.5 to 11 Hz, making it ideal for applications that require precision and stability. The RBD-RT-SP2 employs viscous damping technology, which is essential for managing excessive machine movements during operation. This damping ability is crucial for manufacturers to prevent resonant frequency overlaps and ensure the longevity of machinery while maintaining operational efficiency. The product's robust design, with a load-bearing capacity of 62 kg and a free height of 161.5 mm, makes it suitable for a variety of industrial applications. Equipped with an M16 bolt for easy installation, the RBD-RT-SP2 provides comprehensive support through its superior engineering.

Key Features

Features Description
Model RBD-E2-RT-SP2
Load Capacity 62 Kg
Free Height 161.5 mm
Bolt Size M16x1.75x100
Top Plate Dimensions 235mm x 235mm
Bottom Plate Dimensions 235mm x 235mm
Center to Center Distance 205 mm
Natural Frequency Range 3.5 - 11 Hz
Damping Technology Viscous Damping
Attributes Description
Plate Material Steel
Operating Temperature Range -20°C to +70°C
Weight 5.5 kg
Installation Type Stud Mount
Application Heavy Industrial Machinery

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country Of Origin: India


Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.

Model:RBD-E2-RT-SP2

Load(Kg):62 Free

Height HI (mm):161.5

Bolt Size: M16x1.75x100

Top Plate AXB(mm):235X235

Bottom Plate CXD(mm):235X235 CC(mm):205

Natural Frequency Range(Hz):3.5-11


*****

Dynemech Spring Isolator

Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.

Model:RBD-E2-RT-SP2

Load(Kg):62

Free Height HI (mm):161.5

Bolt Size: M16x1.75x100

Top Plate AXB(mm):235X235

Bottom Plate CXD(mm):235X235 CC(mm):205

Natural Frequency Range(Hz):3.5-11


*****
