Cotton Ball Opener Leaflet

Advance Information*

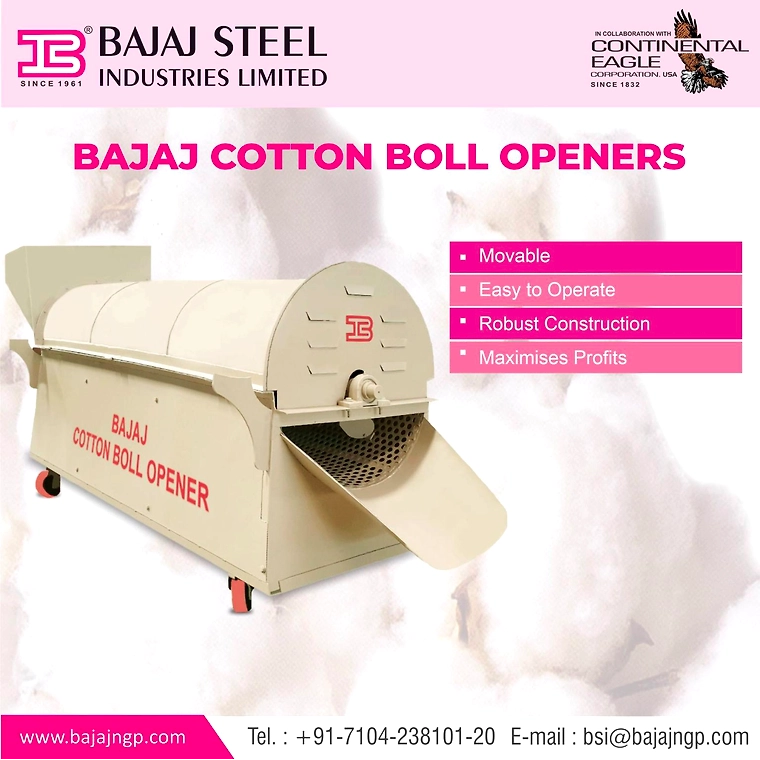

Cotton Ball Opener Leaflet

AN ADDITIONAL PROFIT MACHINE

The Cotton Ball Opener Leaflet is expertly engineered to deliver efficient and high-quality processing of seed cotton, making it a pivotal asset for cotton ginning operations. It is primarily designed to open seed cotton bolls through air turbulence and effectively clean lower grades of cotton by meticulously separating dust, leaves, immature bolls, and other unwanted materials. This advanced machinery is particularly efficient when dealing with Zoda, Leafy, and other inferior grades of seed cotton, including collections from pre-cleaners.

Key Benefits and Features:

• Enhanced Efficiency: The machine significantly reduces the manual labor required for sorting, thanks to its ability to allow dust, leaves, and immature bolls to fall through grids with varied hole sizes for separate collection.
• High-Quality Output: The opened and cleaned seed cotton is delivered at the discharge end, ready for further processing.
• Resource Recovery: It excels at recovering useful seed cotton from what might otherwise be considered trash cotton collections.
• Fiber Integrity: No damage is caused to the cotton fiber during the entire cleaning and opening process.

ROBUST CONSTRUCTION

The Cotton Ball Opener Leaflet is built to last, boasting a construction that ensures durability, reliability, and long-term service.

Construction Features:

• High Capacity Fan: Positioned before the inlet, the robust fan creates sufficient air pressure to aerate the seed cotton by generating air turbulence.
• Large Diameter Beaters: These are key to the separation process, effectively isolating dust, leaves, and immature bolls, and pushing the clean seed cotton toward the discharge end.
• Heavy Gauge Steel Grids: The grids are manufactured from heavy gauge steel sheets, making them robust and less prone to blockages.
• Round Holes Grids: The different sized round holes in the grids prevent clogging and ensure efficient separation of particles.
• Weather-Resistant Top Cover: Made from painted CR sheets, the top cover protects the machinery from environmental elements.
• Main Shaft and Bearings: The main shaft runs on three heavy-duty ball bearings encased in a dust-proof housing, promising trouble-free service for many years with minimal power consumption.

SAFE AND TROUBLE FREE

The machine is designed with the user's safety and convenience in mind, ensuring trouble-free operation with minimal risks.

Safety and Convenience Features:

• End Guarding: Safety guarding is provided at both the feed and discharge ends to protect the operator.
• Enclosed Design: The machine is entirely enclosed with sheet metal featuring doors for the separate collection of trash and premature bolls.
• Stable Base: A suitable base is provided for fitting an electric motor, eliminating the need for slide rails.
• Easy Maintenance: The machine covers are secured with fly nuts, allowing operators to access and attend to the machine without needing a spanner.
• Enclosed Driving Arrangement: The driving arrangement is also fully enclosed, enhancing safety and reducing the risk of accidents.

Specifications:

• Fan Capacity: High-capacity to ensure optimal air turbulence.
• Beater Size: Large diameter for effective separation.
• Grid Material: Heavy gauge steel sheets with round holes of different sizes.
• Top Cover Material: Painted CR sheets for weather resistance.
• Main Shaft Bearings: Encased in dust-proof housing with three heavy-duty ball bearings.
• Power Consumption: Optimized for lower power usage.
• Safety Features: Guarding at both ends, fully enclosed design, stable motor base, easy access with fly nuts.

The Cotton Ball Opener Leaflet is an indispensable tool for modern cotton ginning operations, combining efficiency, durability, and safety to enhance productivity and ensure high-quality cotton processing.
