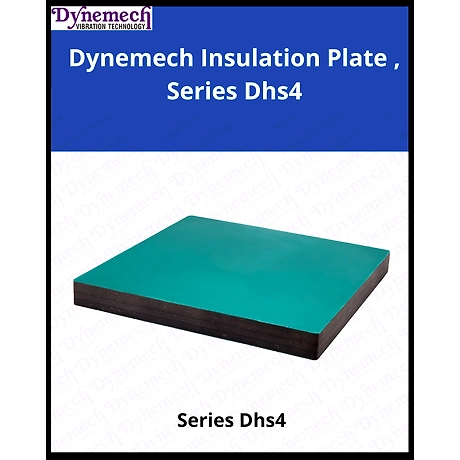

Dynemech Anti Vibration Machinery Mounts and Pads, Series DHS4, are engineered to deliver superior vibration damping solutions for a variety of heavy-duty machinery applications. Composed of a specialized compound of Nitrile Rubber, Cork, and Synthetic Fibres, these insulation plates can effectively absorb vibrations, enhancing the operational longevity and performance of equipment such as forging hammers, heavy generators, industrial machines, test rigs, heavy presses, and crushers. The varied compositions of the materials allow for different natural frequencies, making them ideal for specific damping applications. Designed for robustness, the DHS4 insulation plates resist damage from fuels, lubricating oils, and water, ensuring reliability in harsh industrial environments. With a sizeable structure of 500x500x50 mm and a load capacity ranging from 3 to 12 kg, these mounts are the perfect solution for those looking to mitigate vibration issues and improve operational efficiency. Additionally, the plates exhibit excellent thermal and mechanical properties operating within a temperature range of -20°C to +70°C. The included coefficients of friction at 0.8 and Shore A hardness ratings of 90-92 underline the high-quality material composition used in these pads, further confirming their effectiveness.
Key Features
| Features | Description |
|---|---|
| Material Composition | Nitrile Rubber, Cork, Synthetic Fibre |
| Size | 500x500x50 mm |
| Load Capacity | 3 to 12 kg |
| Natural Frequency | 0.8 - 5 Hz |
| Thickness | 50 mm |
| Coefficient of Friction | 0.8 |
| Shore A Hardness | 90-92 |
| Working Temperature Range | -20°C to +70°C |
| Weight | 19.7 kg |
| Color Options | Green, Grey, Black |
| Attributes | Description |
|---|---|
| Application Areas | Forging Hammers, Heavy Generators, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers |
| Resistance | Resistant to Fuels, Lubricating Oils, Water |
| Vibration Damping | Effective across varying natural frequencies |
| Manufactured To | Meet global industrial standards |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
IEC CODE
IMTMA Membership
ISO
MSMEMART Membership
Dynemech Brand TRADEMARK
Incorporation Type
Company limited by Shares
GST
06AABCD4754E1ZX
Number of Employees
51 To 100 People
Import Export Code (IEC)
05030XXXXX
Year of Establishment
May 2000
Nature of Business
retailer / manufacturer / exporter / importer / manufacturer / manufacturer
GlobalLinker Member Since
October 2022
Annual Turnover: INR 5.00 crore - INR 10.00 crore
Industry: Tools, Machinery & Components > Machinery Components & Supplies
Location(s): Sonipat (India) | Sonipat (India)
DYNEMECH SYSTEMS Pvt. Ltd.was founded in the year 2000 with the aim of manufacturing superior quality vibration damping solutions for all modern machinery. DYNEMECH SYSTEMS Pvt. Ltd. today is one of the leading manufacturers of Anti-Vibration Mounts. We provide complete vibration damping solutions for machinery ranging from CNC machines, Power Presses, Lathe Machines, Textile Machines, Generators, Compressors, Tool Room Machines, Forging Hammers and all other kinds of heavy industrial machinery. We have established ourselves as leading manufacturers, exporters and OEM suppliers of anti vibration pads / mountings.
Brand: DYNEMECH
Country Of Origin: India
Dynemech Anti-vibration Dhs4 Insulation Plate are made from the compund of Nitrile Rubber, Cork,
Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration
damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels,
lubricating oils, water etc.
Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers etc.
Dynemech Anti-vibration Dhs4 Insulation Plate are made from the compund of Nitrile Rubber, Cork,
Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration
damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels,
lubricating oils, water etc.
Application: Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers etc.
Size :500x500x50mm
Load Capacity (Kg.):03 to 12
Natural Frequency (Hz):08-05
Thickness (mm):50
Coeff. of Friction:0.8
Shore A Hardness:90-92
Working Temp Range °C:-20 to +70
Weight ( Kg.):19.7
Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.
Colour:Green, Grey, Black
