Product Features (USP)
- Performance and Efficiency
- Up to 95% efficiency in online double-conversion mode and 98% in high-efficiency mode
- Maximum power with 0.9 Power Factor
- Most compact solution with RT (Rack/tower) versatile form factor
- Advanced Battery Management
Manageability
- UPS’s status and measurements on a single screen with new graphical LCD
- Capable to meter energy consumption
- Load segment control enables prioritized sequential start-ups."
Applications
- Small and Medium Datacentre
- IT, Networking, Storage and Telecom
- Infrastucture, Industrial and Medical"
Warranty
2 year warranty on UPS and 2 year warranty on batteries. For Product warranty registration and service support, please reach out to Eaton on toll free number: ***** or ***** and/or email on *****
Advance Information*

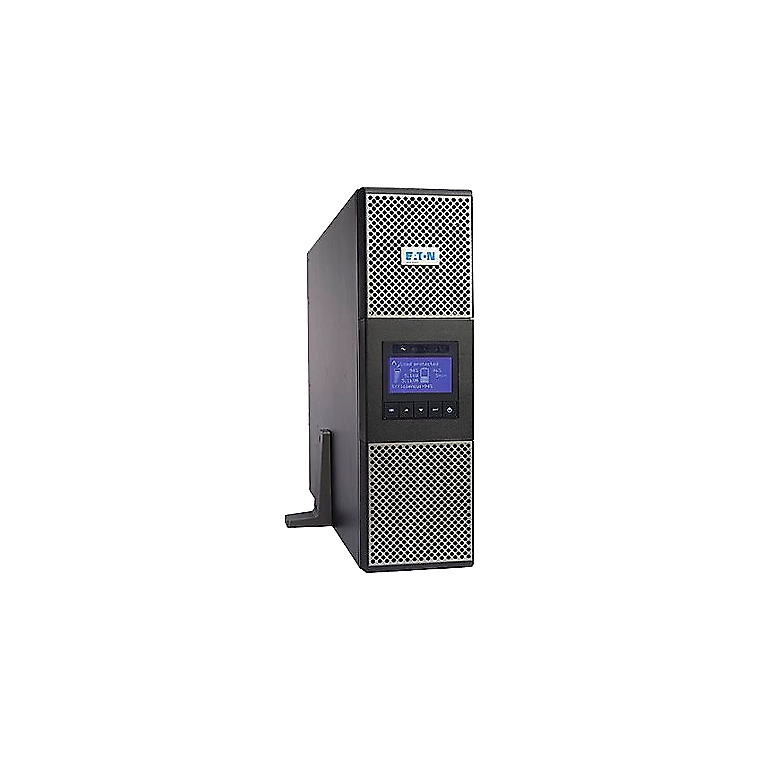

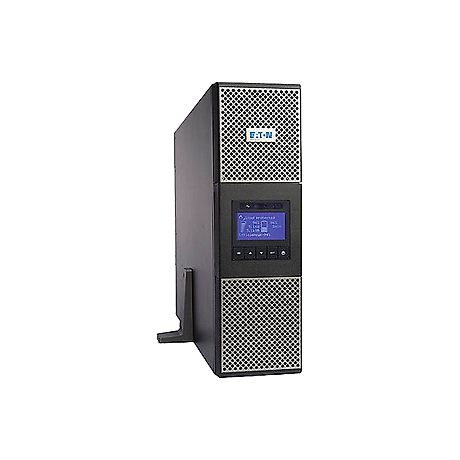

Eaton 9PX 1000i RT2U UPS
The Eaton 9PX 1000i RT2U UPS (Uninterruptible Power Supply) is a high-performance and versatile power protection solution designed to secure mission-critical applications in small and medium data centers, IT, networking, storage, and telecom infrastructures, as well as industrial and medical environments. With advanced technologies and robust design, the Eaton 9PX 1000i RT2U offers an exceptional blend of efficiency, reliability, and user-friendly management features.
Product Overview
The Eaton 9PX 1000i RT2U UPS is built to deliver maximum power protection and high efficiency in a compact and flexible 2U rack/tower form factor. This next-generation UPS offers an impressive efficiency of up to 95% in online double-conversion mode and up to 98% in high-efficiency mode, ensuring reduced energy consumption and operational costs while maintaining a high level of power protection for connected equipment.
Key Features
Performance and Efficiency
- Up to 95% Efficiency in Online Double-Conversion Mode: The Eaton 9PX 1000i RT2U UPS operates with an efficiency of up to 95% in online double-conversion mode, ensuring that it delivers clean and consistent power to your equipment with minimal energy loss.
- Up to 98% in High-Efficiency Mode: By switching to high-efficiency mode, the UPS can achieve an efficiency rate of up to 98%, further lowering energy consumption and operational costs.
- 0.9 Power Factor: The UPS has a power factor of 0.9, meaning it provides a higher wattage compared to other UPS devices with the same VA rating, supplying more real power to critical loads.
- Compact and Versatile Form Factor: The 2U rack/tower format allows the Eaton 9PX 1000i RT2U to be easily integrated into various environments, delivering a compact and space-saving power management solution.
Advanced Battery Management
The Eaton 9PX 1000i RT2U UPS incorporates Eaton's Advanced Battery Management (ABM) technology, which extends battery life and optimizes battery recharge times through a three-stage charging process. ABM not only ensures that the batteries are always in the best possible condition but also reduces the overall cost of ownership by extending the lifecycle of the batteries.
Manageability
- Graphical LCD Display: The UPS features a new graphical LCD that provides clear and comprehensive information on the unit's status and power measurements, all on a single screen. Users can easily navigate through the menu to monitor and manage the UPS efficiently.
- Energy Consumption Metering: The Eaton 9PX 1000i RT2U UPS is capable of metering energy consumption, allowing users to track and optimize their power usage.
- Load Segment Control: This feature enables prioritized sequential start-ups and controllable shutdowns for non-essential equipment, ensuring critical loads are prioritized during power outages.
Technical Specifications
Eaton Part Code: 9103-53748
Capacity: 1 kW
Battery: Inbuilt 4 batteries
User Manual: Included
Input Cable: Included
Output Cable: Included
Dimensions (WxDxH) cm: 8.65 x 44 x 45
Weight (kg): 17.4
Applications
The Eaton 9PX 1000i RT2U UPS provides robust power protection for a variety of applications, making it an ideal choice for:
- Small and Medium Data Centers: Protects critical IT infrastructure by ensuring continuous power supply and efficient power distribution.
- IT and Networking: Ensures stable and reliable power for servers, switches, routers, and other networking equipment.
- Storage: Safeguards storage devices and prevents data loss due to power interruptions.
- Telecom Infrastructure: Maintains continuous operation of telecom equipment and systems.
- Industrial: Provides power protection for sensitive industrial equipment and automation systems.
- Medical: Ensures the reliability and integrity of medical devices and systems.
Conclusion
The Eaton 9PX 1000i RT2U UPS is a high-efficiency, reliable, and easily manageable power protection solution designed for demanding environments. Its advanced features, such as high efficiency, power factor, versatile form factor, and comprehensive manageability, make it an indispensable asset in securing mission-critical applications across various industries. With advanced battery management and load segment control, the 9PX 1000i RT2U ensures optimized performance, enhanced battery life, and cost-effective operation.
For further details and product support, including warranty and registration information, users can contact Eaton's customer service.
