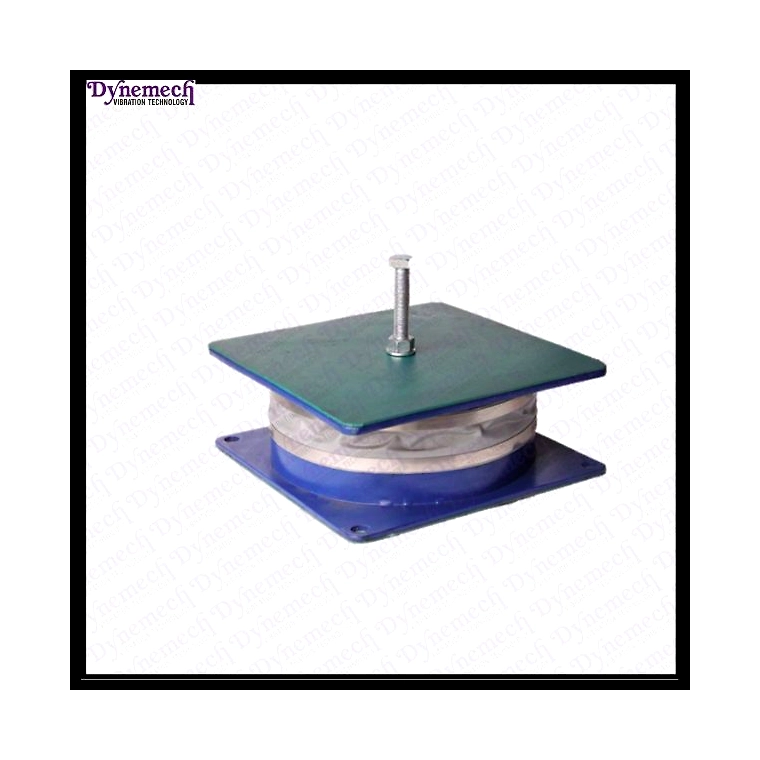

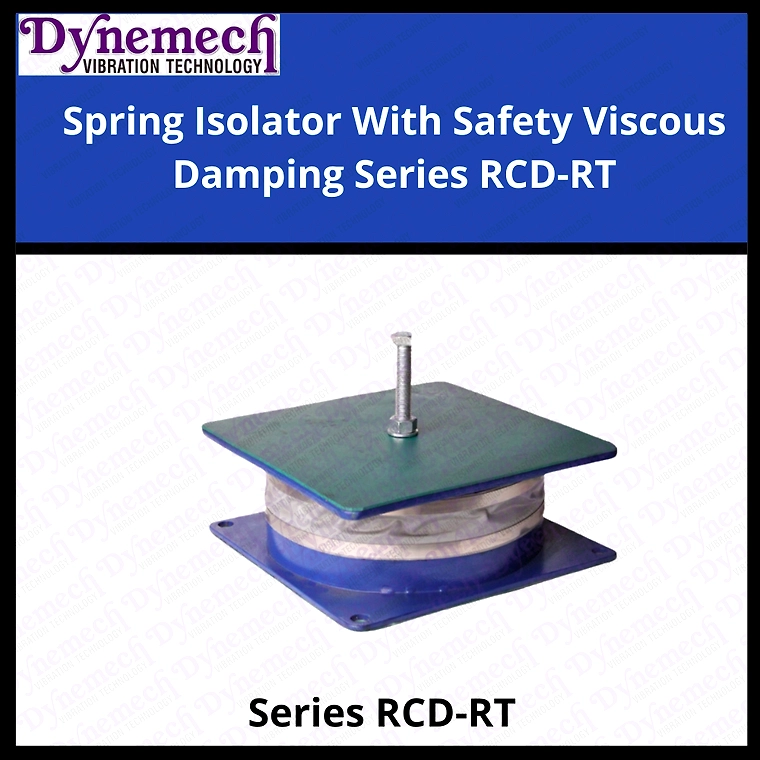

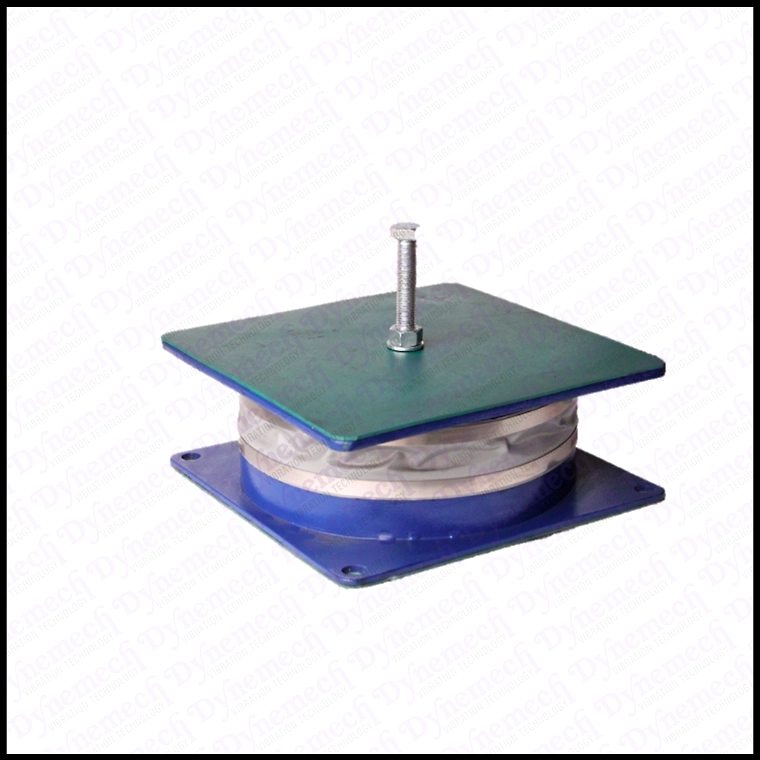

The Extreme-Load Press Vibration Dampening Unit Series RCD-RT from Dynemech is a top-tier solution specifically engineered to tackle the vibration challenges in heavy industrial applications. With over a decade of experience in the Indian industry, Dynemech stands out as a comprehensive provider of vibration control solutions. This series features advanced spring isolators designed to handle heavy loads up to 96 KG and delivers exceptional performance across a natural frequency range of 3.5-11 Hz. The RCD-RT model incorporates a unique combination of viscous damping and natural frequency adjustments, eliminating excessive movement during operation and optimizing performance during slow run-ups and sudden impacts, making it an ideal choice for heavy presses, hammers, and generator sets. Its robust construction, including stainless steel M16 bolts and precisely engineered top and bottom plates ((235 mm x 235 mm)), assures durability and reliability in the most demanding environments. Choose the Extreme-Load Press Vibration Dampening Unit for enhanced operational efficiency and longevity of your machinery.
Key Features
| Features | Description |
|---|---|
| Heavy Load Capacity | Supports loads up to 96 Kg. |
| Natural Frequency Range | 3.5-11 Hz for optimal vibration control. |
| Viscous Damping | Limits excessive movement and reduces vibrations effectively. |
| Robust Construction | M16x1.75x100 bolt size with durable top and bottom plates (235 mm x 235 mm). |
| Versatile Applications | Suitable for heavy presses, hammers, and generator sets. |
| Attributes | Description |
|---|---|
| Model | RCD-E2-RT |
| Load Capacity (Kg) | 96 |
| Free Height (HI) (mm) | 108 |
| Bolt Size | M16x1.75x100 |
| Top Plate Dimensions (AXB) (mm) | 235X235 |
| Bottom Plate Dimensions (CXD) (mm) | 235X235 |
| Center to Center (CC) (mm) | 205 |
| Natural Frequency Range (Hz) | 3.5-11 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.
Model:RCD-E2-RT
Load(Kg):96 Free
Height HI (mm):108
Bolt Size: M16x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:RCD-E2-RT
Load(Kg):96 Free
Height HI (mm):108
Bolt Size: M16x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
