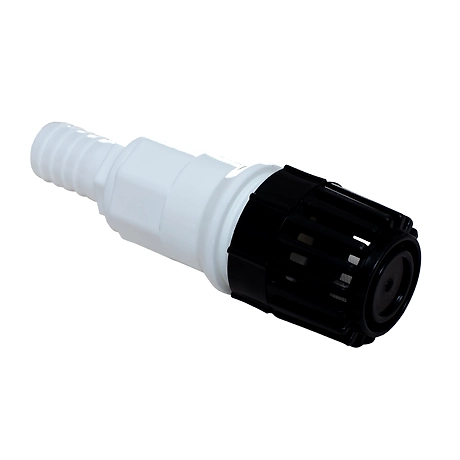

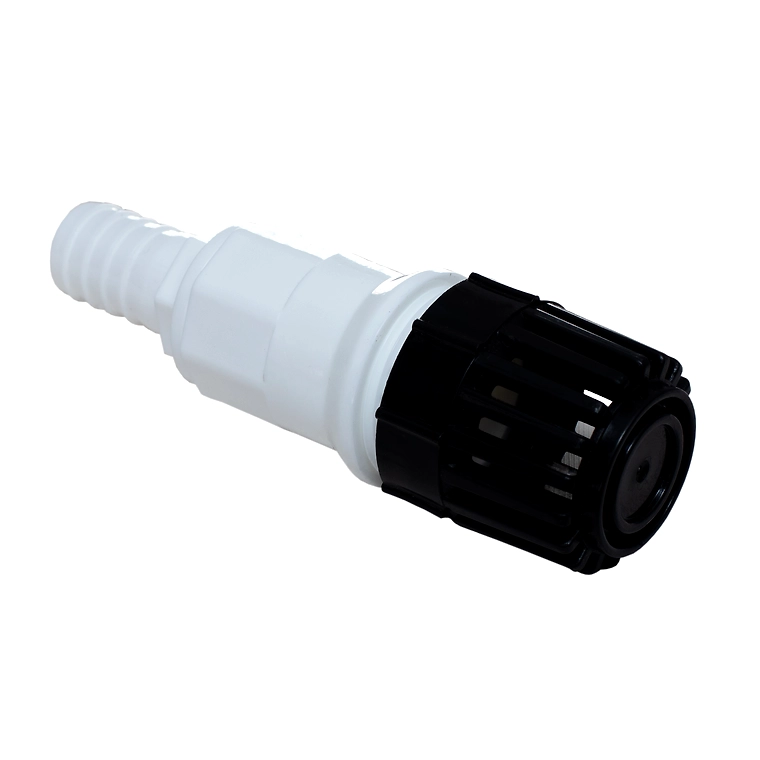

FOOT VALVE

Advance Information*

Introduction

The FOOT VALVE by GAMI is an essential component for various pumping systems, ensuring efficient and reliable operation. Designed to allow fluid to flow in only one direction, this valve is critical in preventing reverse flow that could cause the pump to lose its prime. This functionality makes it a cornerstone in the performance and longevity of your pumping system. Often found at the end of the suction line and submerged in the fluid source, the GAMI FOOT VALVE is a multifunctional device engineered to deliver optimal performance in both industrial and domestic applications.

Design and Material Composition

The FOOT VALVE from GAMI consists of a robust construction made from high-quality materials, ensuring durability and long-lasting operation even under demanding conditions. The valve typically encompasses the following components:

• Body: Constructed from heavy-duty cast iron, stainless steel, or brass, depending on the specific application and environmental conditions.
• Disc: Made from resilient and corrosion-resistant materials such as stainless steel or thermoplastics to ensure longevity.
• Seat: Crafted from materials like bronze or nitrile rubber, providing a perfect seal to prevent backflow.
• Spring: Often made from stainless steel to withstand continuous stress and operational pressure.
• Strainer or Filter Screen: Fabricated from fine mesh stainless steel or other corrosion-resistant material to prevent debris and contaminants from entering the pump system.

Key Features

One-Way Flow Control

The core functionality of the GAMI FOOT VALVE is to allow unidirectional flow from the source (such as a well or a tank) to the pump. This prevents any reverse flow, which is crucial for maintaining the pump's prime and ensuring the continuous and efficient operation of the pumping system.

Strainer or Filter Screen

A built-in strainer or filter screen is integral to the GAMI FOOT VALVE design. This component effectively filters out debris, dirt, and other contaminants, preventing them from entering the pump system. By doing so, it protects the pump from potential damage and blockages, thereby prolonging its life and reducing maintenance costs.

Durable Construction

The choice of materials in the FOOT VALVE's construction ensures it can withstand harsh operational environments. Whether dealing with corrosive fluids, high pressures, or temperature extremes, the GAMI FOOT VALVE is built to last, providing reliable performance over extended periods.

Applications

The versatility and robust design of the GAMI FOOT VALVE make it suitable for a wide range of applications, including:

Irrigation Systems

In irrigation systems, the GAMI FOOT VALVE plays a crucial role by allowing water to flow efficiently from the source to the watering equipment. The built-in filter screen ensures that no dirt or debris clogs the system, thereby enhancing the irrigation process's efficiency.

Water Wells

For water wells, the GAMI FOOT VALVE ensures that water flows smoothly from the well to the surface, preventing any backflow that could disrupt the system's operation. Its durable construction makes it ideal for the challenging conditions often found in well environments.

Industrial Water Supply Systems

In industrial settings, the GAMI FOOT VALVE supports large-scale water supply operations. Its ability to prevent backflow and filter out contaminants ensures that the system operates smoothly and efficiently, reducing downtime and maintenance requirements.

Domestic Water Supply Systems

In household water systems, the GAMI FOOT VALVE ensures a steady and reliable supply of water by maintaining the pump’s prime and filtering out any contaminants. Its efficient operation means households can enjoy a consistent water supply without the worry of pump failure.

Technical Specifications

• Material Options: Cast Iron, Stainless Steel, Brass, Bronze, Nitrile Rubber
• Sizes Available: (Specify range, e.g., 1/2 inch to 12 inches)
• Maximum Operating Pressure: Varies by material and size, often up to 300 PSI
• Temperature Range: -10°C to 120°C
• Flow Rate Capacity: Dependent on size and operating pressure
• Connection Types: Threaded, Flanged, Socket Weld
• Filter Screen Mesh Size: (Specify e.g., 100-micron)

Installation and Maintenance

Installation

Installing the GAMI FOOT VALVE properly ensures optimal performance and longevity. Key steps in installation include:

1. Positioning: The valve should be installed at the end of the suction line and fully submerged in the fluid source.
2. Orientation: Ensure the valve is positioned correctly to allow unidirectional flow from the source to the pump.
3. Sealing: Utilize appropriate sealing techniques to prevent leaks and ensure a tight fit within the system.

Maintenance

Routine maintenance of the GAMI FOOT VALVE is straightforward:

1. Inspection: Regularly check the valve for signs of wear or damage, focusing on the strainer or filter screen for blockages.
2. Cleaning: Periodically clean the strainer or filter screen to
