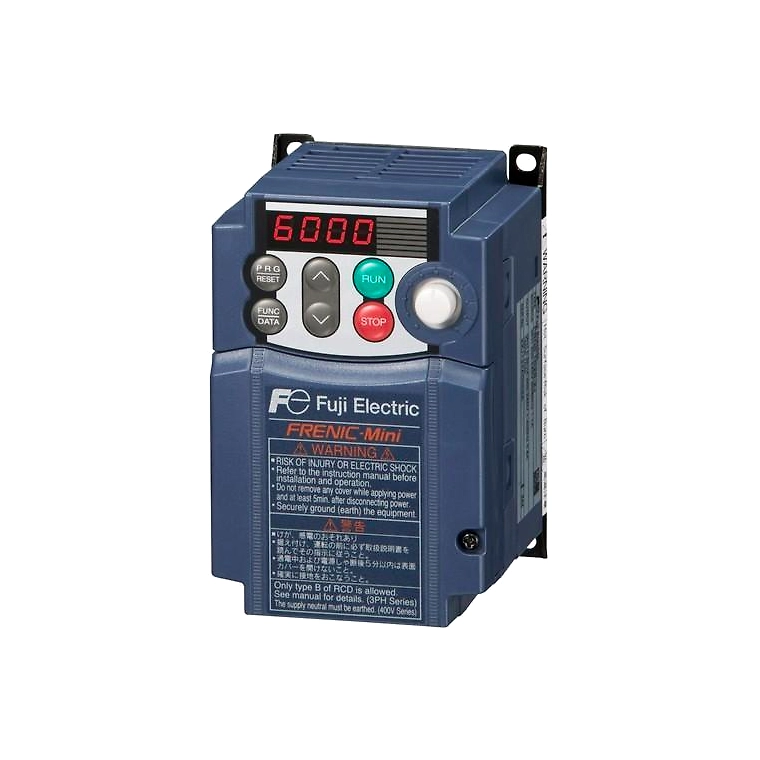

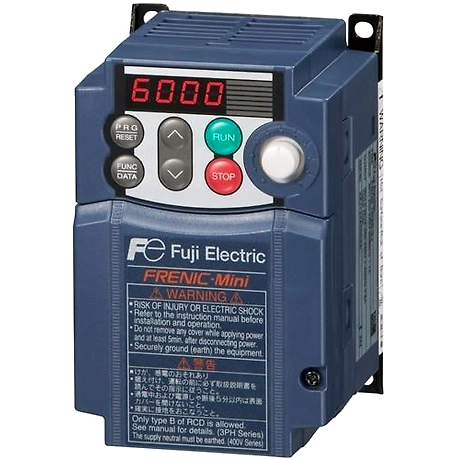

Fuji Frenic Mini VFD

Brand: Fuji

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry

Fuji AC Drive Series provides excellent performance for both single-phase and three-phase applications, and is available in multiple configurations to support 1/8 HP up to 20 HP AC drives / variable frequency drives (VFD) / v/ Hz vector drives. With an expanded range of rated voltages, the new FRENIC-Mini strikes an optimal balance between price and performance.

Feature*
  • Brand: Fuji
  • Category: Variable Frequency Drives
  • Drive Type: AC Drive
  • Motor Type: Single-phase and three-phase
  • Power Range: 1/8 HP to 20 HP
  • Control Type: V/Hz vector drive
  • Voltage Range: Expanded range of rated voltages

  • Additional information

    Product Description

    Standard module up to HD 15KW

    Built-In Braking chopper up to 15 Kw

    Starting torque 200% at 0.5Hz (Auto torque boost function)

    200% for 0.5sec & 150% for 60sec overload capability

    Designed for 50deg C. temperature

    Fix keypad with potentiometer inbuilt

    Compatible with Multifunction keypad (Optional)

    Control mode: V/F control, Dynamic Torque Vector Control without PG, Vector control without PG as standard.

    Inbuilt PID controller for Process control

    PMSM in Open – Loop

    On board communication port (RJ45) used for keypad or external communication




    Advance Information*

    Overview

    The Fuji Frenic Mini Variable Frequency Drive (VFD) is the epitome of efficiency and performance. This compact yet powerful unit belongs to Fuji’s esteemed AC Drive Series, which is designed to cater to a wide range of applications—both single-phase and three-phase. The Frenic Mini VFD is the culmination of cutting-edge technology, meeting an optimal balance between price and performance while providing excellent capabilities for motor control solutions. Whether you require precise motor speed control or improved energy savings, the Fuji Frenic Mini VFD delivers outstanding results in various configurations to support motor operations from 1/8 HP up to 20 HP.

    Features at a Glance

    • Wide Power Range: Supports 1/8 HP to 20 HP AC drives.
    • High-Performance Control: V/F control, Dynamic Torque Vector Control without PG, Vector control without PG.
    • Robust Overload Capability: 200% for 0.5 seconds and 150% for 60 seconds.
    • Built-In Braking: Integrated braking chopper for models up to 15 kW.
    • User-friendly Keypad: Fixed keypad with built-in potentiometer, compatible with an optional multifunction keypad.
    • Temperature Endurance: Engineered to withstand temperatures up to 50°C.
    • Communications: Onboard RJ45 communication port for easy interfacing.
    • Intelligent Motor Control: Inbuilt PID controller for process control, PMSM in open-loop configuration.

    Detailed Product Insights

    Power Ratings and Configurations

    The Fuji Frenic Mini VFD takes versatility to new heights by accommodating a variety of power ratings, ensuring optimal motor performance whether it be for small-scale applications or more demanding industrial use. The range spans from 1/8 HP to 20 HP, covering a wide array of possible use cases from simple fan and pump drives to more complex machinery operations.

    Control Modes

    The Frenic Mini offers multiple control modes to cater to diverse operational needs: - V/F Control: Ideal for applications where precise speed control is sufficient. - Dynamic Torque Vector Control Without PG: Provides improved torque performance without the need for a pulse generator. - Vector Control Without PG: Offers a higher degree of performance for applications demanding accurate speed and torque control.

    These modes ensure that the drive can handle a variety of tasks with remarkable precision and reliability.

    Overload Capability

    One of the standout features of the Frenic Mini VFD is its robust overload capability. The system can handle 200% of its rated capacity for up to 0.5 seconds and 150% for up to 60 seconds. This makes it ideal for applications that experience short-term load increases or demanding start-up conditions.

    Built-In Braking Chopper

    Efficiency and braking are seamlessly integrated within the Frenic Mini VFD, thanks to the built-in braking chopper for models up to 15 kW. This feature reduces the need for additional components, leading to more streamlined operations and cost savings.

    Temperature Resilience

    Designed to operate efficiently under harsh conditions, the Frenic Mini VFD is built to endure temperatures up to 50°C. This high threshold adds a layer of robustness, making the drive suitable for a wide range of environmental conditions.

    User-Friendly Interface

    Usability is a key focus, and the inbuilt fixed keypad with a potentiometer makes for straightforward and intuitive adjustments. Additionally, for those requiring more versatility, the drive is compatible with an optional multifunction keypad, providing extended control and operational flexibility.

    Comprehensive Communication Options

    Effective communication is central to modern industrial operations, and the Frenic Mini VFD comes with an onboard RJ45 communication port. This feature facilitates easy connection to either the keypad or external communication interfaces, ensuring smooth and efficient integration into existing systems.

    Intelligent Control Features

    The Frenic Mini is not just about power; it’s about smart control as well. Featuring an inbuilt PID controller, it is capable of advanced process control, automating adjustments to maintain the desired system output. The drive also supports PMSM (Permanent Magnet Synchronous Motors) in an open-loop configuration, offering expanded capabilities and higher efficiency in certain applications.

    Technical Specifications

    | Feature | Specification | |--------------------------------------|-------------------------------------------| | Power Range | 1/8 HP to 20 HP | | Control Modes | V/F control, Dynamic Torque Vector Control without PG, Vector Control without PG | | Overload Capability | 200% for 0.5 sec, 150% for 60 sec | | Braking | Built-in chopper up to 15 kW | | Operating Temperature | Up to 50°C | | Keypad | Fixed with potentiometer, optional multifunction keypad | | Communication | On


    Fuji AC Drive SeriesVariable Frequency DrivesVFDv/Hz vector drivesFRENIC-MiniSingle-phase applicationsThree-phase applications1/8 HP20 HPAC drives
    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
