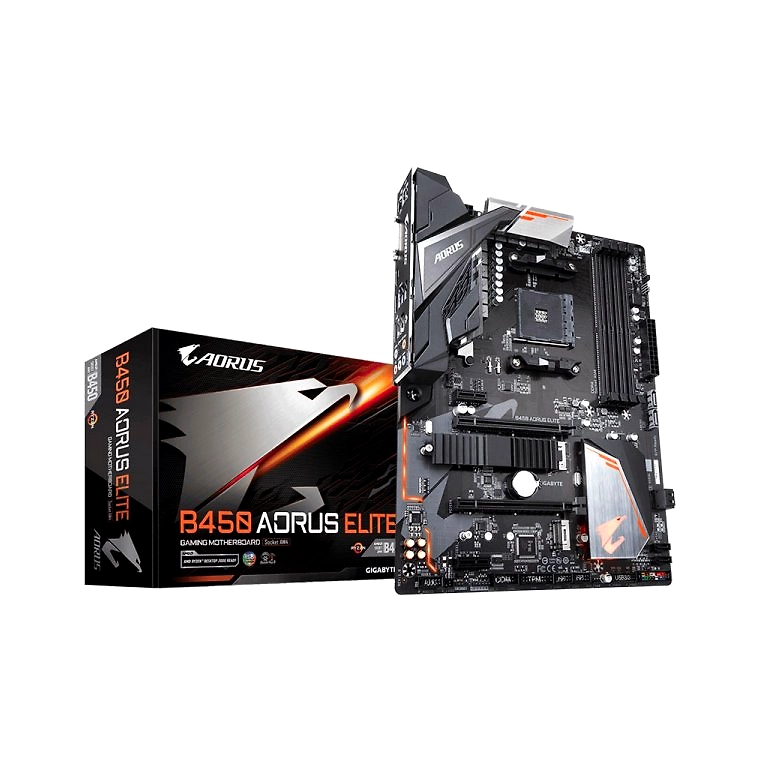

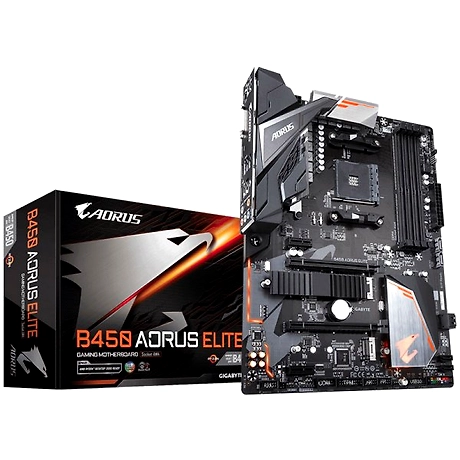

Gigabyte B450 AORUS ELITE

AM4 Socket: AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz * Support for HDMI 2.0 version and HDCP 2.2. Maximum shared memory of 16 GB (Note) Actual support may vary by CPU.

Advance Information*

Introduction

The Gigabyte B450 AORUS ELITE is an incredibly versatile and high-performance motherboard tailored for both gaming enthusiasts and professional users. Designed to support AMD Ryzen™ processors, this motherboard provides excellent compatibility and a host of features aimed at delivering top-notch performance, connectivity, and reliability.

AM4 Socket Compatibility

The B450 AORUS ELITE supports AMD’s AM4 socket, ensuring compatibility with:

• AMD Ryzen™ 2nd Generation processors
• AMD Ryzen™ with Radeon™ Vega Graphics processors
• AMD Ryzen™ 1st Generation processors

This broad compatibility ensures that the B450 AORUS ELITE can cater to a range of users, from gamers looking to build a high-performance machine to professionals needing a reliable platform for content creation and productivity tasks.

Memory Configuration

The motherboard comes equipped with 4 x DDR4 DIMM sockets, enabling users to install up to 64 GB of system memory. This provides ample room for multitasking, gaming, and intensive applications. The supported memory configurations and speeds ensure users can maximize their system’s potential:

• Dual-channel memory architecture
• Support for DDR4 memory modules
• Extensive memory overclocking support

Display Capabilities

Display output options on the B450 AORUS ELITE include:

• 1 x DVI-D Port: Supports a maximum resolution of 1920x1200@60 Hz. It is important to note that this port does not support D-Sub connection by adapter.
• 1 x HDMI Port: Capable of supporting a resolution of up to 4096x2160@60 Hz. The HDMI port supports HDMI 2.0 and HDCP 2.2, making it ideal for high-definition media and gaming experiences.

Audio and Network Connectivity

Audio

The audio subsystem on the B450 AORUS ELITE is designed to deliver high-quality sound, making it suitable for immersive gaming and media consumption:

• Realtek® ALC892 codec
• High Definition Audio
• 2/4/5.1/7.1-channel support

The audio quality is further enhanced by the use of high-end audio capacitors, ensuring clear and precise sound.

Network

Network connectivity is a key feature for any motherboard, and the B450 AORUS ELITE does not disappoint:

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

This ensures stable and fast internet connectivity, which is crucial for gaming and streaming.

Expansion Slots and Storage Interfaces

Expansion Slots

The motherboard provides extensive expansion options to cater to various needs:

• 1 x PCI Express x16 slot (PCIe 3.0/2.0)
• 1 x PCI Express x16 slot (PCIe x4)
• 2 x PCI Express x1 slots

These slots enable users to install multiple graphics cards, SSDs, sound cards, and other peripheral devices.

Storage Interfaces

The B450 AORUS ELITE offers a variety of storage options, facilitating fast data transfer rates and ample storage:

• 6 x SATA 6Gb/s connectors
• 2 x M.2 connectors

The support for NVMe SSDs on the M.2 slots ensures high-speed storage capabilities, essential for reducing boot times and accelerating application load times.

I/O Ports and Internal Connectors

Back Panel I/O

The back panel of the B450 AORUS ELITE provides a wide range of connectivity options:

• 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x HDMI port
• 4 x USB 3.1 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks

Internal Connectors

To enhance system functionality, the motherboard includes several internal connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x M.2 slots
• 6 x SATA 6 Gb/s connectors
• 2 x USB 3.1 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x front panel header
• 1 x front panel audio header

Cooling and Temperature Control

Effective cooling and temperature control are essential for maintaining system stability and performance, especially during intensive tasks. The B450 AORUS ELITE incorporates advanced cooling solutions:

• Smart Fan 5 technology: Ensures that gaming PCs maintain their performance while staying cool. Multiple temperature sensors and hybrid fan headers with FAN STOP keep the motherboard cool.
• **Temperature
