Gigabyte B450M DS3H

Advance Information*

Overview

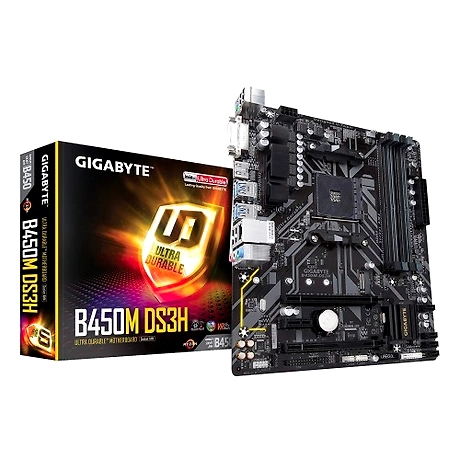

The Gigabyte B450M DS3H motherboard is engineered to cater to both enthusiasts and general users, providing the ideal balance between performance and value. This robust micro-ATX motherboard from Gigabyte supports a range of AMD processors, including the 2nd Generation Ryzen, Ryzen with Radeon Vega Graphics, and 1st Generation Ryzen processors. It’s designed to provide superior performance, enhanced connectivity, and amazing visual experiences, making it a versatile choice for different computing needs.

Unmatched Performance with AMD Ryzen Processors

At the heart of the Gigabyte B450M DS3H is its compatibility with a variety of AMD Ryzen processors. Whether you're leveraging the power of a 2nd Generation Ryzen for improved performance, utilizing the integrated graphics of Ryzen with Radeon Vega Graphics, or employing the solid foundation of a 1st Generation Ryzen processor, the B450M DS3H is well-equipped to handle the demands of these formidable CPUs.

Dual Channel DDR4 Memory Architecture

Featuring dual-channel non-ECC unbuffered DDR4 capabilities across 4 DIMM slots, the Gigabyte B450M DS3H ensures that users can achieve optimum memory performance and bandwidth. This setup allows for memory overclocking and flexibility, enabling systems to perform efficiently under various workloads.

Key Features

Here are some of the standout features of the Gigabyte B450M DS3H motherboard:

Enhanced Cooling Solution

The Gigabyte B450M DS3H incorporates an advanced cooling design to maintain optimal temperature levels, which is paramount for delivering stable performance and prolonging the lifespan of the motherboard. The advanced thermal solution includes multiple temperature sensors and hybrid fan headers with FAN STOP capability, ensuring efficient and silent cooling.

Superior Connectivity Options

With a plethora of connectivity options, the B450M DS3H is tailored to meet various usage scenarios. The motherboard provides multiple USB ports, including USB 3.1 Gen 1 and USB 2.0. Additionally, it features high-speed storage support via the M.2 slot and SATA connectors, facilitating enhanced data transfer rates for SSDs and other storage drives.

RGB Fusion Technology

For users who appreciate aesthetic customization, the RGB Fusion technology allows for dynamic lighting effects on supported components. Users can personalize their PC with various lighting patterns and synchronize their RGB peripherals to create a cohesive and visually striking setup.

Realtek GbE LAN with cFosSpeed

Reliable and fast networking is essential for online gaming and data-intensive tasks. The Gigabyte B450M DS3H features the Realtek GbE LAN with cFosSpeed, which helps manage network traffic to provide a smoother online experience by reducing latency and improving overall network performance.

Expansion and Versatility

The Gigabyte B450M DS3H is designed with expansion and versatility in mind. It supports multiple expansion slots and various storage solutions:

• Expansion Slots: The motherboard includes one PCIe 3.0 x16 slot, which is perfect for installing a discrete GPU, and two PCIe 2.0 x1 slots for additional expansion cards.
• Storage Options: In addition to the M.2 slot, the B450M DS3H comes equipped with four SATA 6Gb/s connectors, supporting various RAID configurations like RAID 0, RAID 1, and RAID 10 for increased performance and data redundancy.

Detailed Specifications

CPU

• Supports AMD 2nd Generation Ryzen, Ryzen with Radeon Vega Graphics, and 1st Generation Ryzen Processors

Chipset

• AMD B450

Memory

• 4 x DDR4 DIMM slots supporting up to 64GB of system memory
• Dual Channel Unbuffered Non-ECC DDR4
• Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Integrated Graphics

• 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @ 60Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60Hz

Audio

• Realtek ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

• 1 x PCIe 3.0 x16 slot (x16 mode)
• 2 x PCIe 2.0 x1 slots

Storage Interface

• 1 x M.2 socket 3 connector
• 4 x SATA 6Gb/s connectors

USB

• Integrated in the I/O interface:
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0 ports
• Internal USB:
• 2 x USB 3
