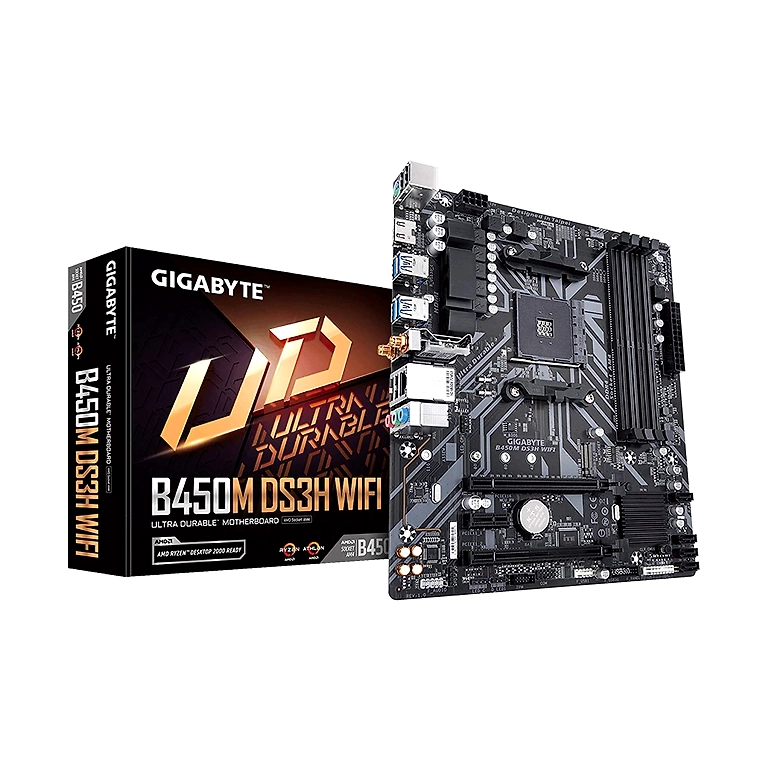

Gigabyte B450M DS3H Wifi

Advance Information*

Overview

The Gigabyte B450M DS3H WiFi motherboard is a formidable contender in the mATX form factor category, combining robust performance and extensive features to cater to a wide range of users, from gamers to professional content creators. As part of the AMD B450 chipset family, this motherboard offers advanced connectivity, superior cooling solutions, and user-friendly features, enhancing the building and upgrading experience.

Compatible Processors

The Gigabyte B450M DS3H WiFi is designed to support an extensive range of AMD processors, offering versatility for a variety of builds:

• AMD 3rd Gen Ryzen™ Processors
• AMD 2nd Gen Ryzen™ Processors
• AMD 1st Gen Ryzen™ Processors
• AMD 2nd Gen Ryzen™ with Radeon™ Vega Graphics Processors
• AMD 1st Gen Ryzen™ with Radeon™ Vega Graphics Processors
• AMD Athlon™ with Radeon™ Vega Graphics Processors

Memory Support

This motherboard supports Dual Channel Non-ECC Unbuffered DDR4 memory across 4 DIMM slots, providing ample capacity for enhanced multitasking and performance demands. Key memory specifications include:

• Memory Type: DDR4
• DIMM Slots: 4
• Max Capacity: Up to 64GB

Connectivity and Network

Stay connected with advanced networking capabilities on the Gigabyte B450M DS3H WiFi:

• WiFi: Intel® Dual Band 802.11ac provides fast and reliable wireless connectivity, suitable for gaming, streaming, and more.
• Bluetooth: Integrated Bluetooth 4.2 offers seamless connection with peripheral devices.
• LAN: Realtek® Gigabit LAN ensures stable and fast wired network performance, complemented by cFosSpeed Internet Accelerator Software for optimized network traffic.

Storage Options

Experience ultra-fast data transfer speeds and responsive system performance with the following storage features:

• PCIe Gen3 x4 M.2 Slot: Supports both PCIe NVMe and SATA modes, offering versatility and speed for your storage needs.
• SATA Ports: Multiple SATA III ports for additional storage solutions.

High-Quality Audio

Immerse yourself in superior audio quality with high-quality audio components and noise guard design:

• Audio Capacitors: High-quality capacitors ensure a clear and rich audio output.
• Noise Guard Design: Reduces external noise interference, delivering a purer audio experience.

RGB Fusion 2.0

Customize your system aesthetics with RGB Fusion 2.0, supporting Addressable RGB and RGB LED strips. This feature allows you to personalize lighting effects and synchronize them with other AORUS devices for a cohesive look.

Smart Fan 5

Maintain optimal system temperature and noise levels with Smart Fan 5 technology:

• Temperature Sensors: 5 sensors monitor the temperature across the motherboard.
• Hybrid Fan Headers: 2 hybrid headers support both PWM and Voltage mode fans.
• FAN STOP: Allows for fan stoppage, reducing noise and power consumption when cooling is not needed.

APP Center

The Gigabyte APP Center provides a centralized location for various Gigabyte utilities and applications, ensuring a seamless user experience. Key applications include:

• EasyTune™: For convenient system performance tuning.
• Cloud Station™: To enable remote control and data transfer between other smart devices.

Design and Durability

Built with premium materials and a solid design, the Gigabyte B450M DS3H WiFi ensures reliability and longevity. The motherboard layout is optimized to provide ease of use and enhance the overall build aesthetics.

I/O Panel

The input/output panel is well-equipped to support all your peripheral needs, including:

• USB Ports: Multiple USB 3.1 Gen1 and USB 2.0 ports for high-speed data transfer and connectivity.
• Display Outputs: HDMI and DVI-D ports for multi-monitor setups.
• Audio Ports: High-quality audio jacks for enhanced sound output.

Specifications

General

• Form Factor: Micro-ATX
• Chipset: AMD B450
• Processor Socket: AM4

Memory

• Type: DDR4
• DIMM Slots: 4
• Max Capacity: 64GB
• Dual Channel: Yes

Networking

• WiFi: Intel® Dual Band 802.11ac
• Bluetooth: 4.2
• LAN: Realtek® Gigabit LAN

Storage

• M.2 Slot: 1 x PCIe Gen3 x4 (NVMe & SATA)
• SATA: Multiple SATA III Ports

Audio

• Audio Capacitors: High-quality
