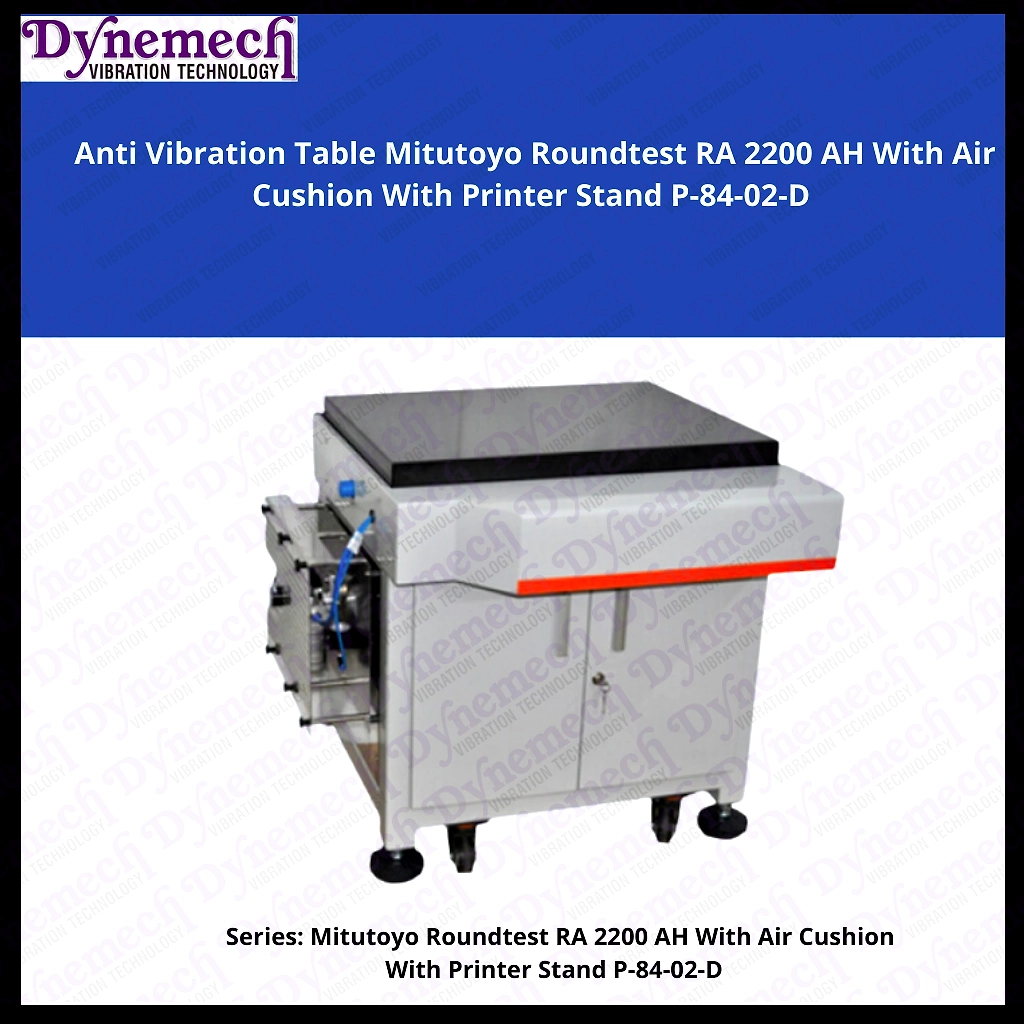

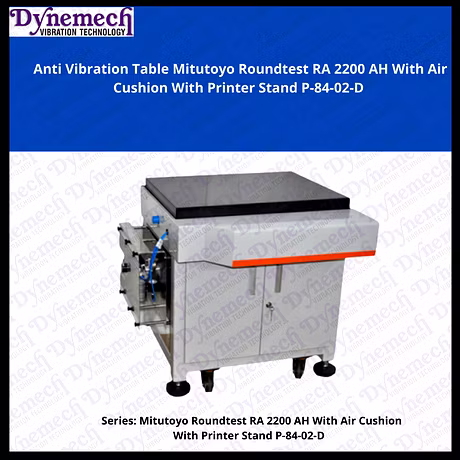

The Dynemech Granite Anti Vibrating Table P-84-02-D is engineered specifically for Testing and Quality Laboratories, especially for environments exposed to high vibration from adjacent operational machinery such as presses, hammers, and VMCs. With a sturdy granite base measuring 750mm in length, 600mm in breadth, and 30mm in thickness, this anti-vibration table provides unmatched stability and precision. Its innovative design features a tubular structure with a wrap-around construction and an aesthetic left angular profile that complements any laboratory setting. The table integrates pneumatic-supported membrane air springs, equipped with three sensors for precise auto-leveling within ± 0.15mm. It comes complete with essential components including a manifold, regulator, FRL unit, shut-off wall, and NRV. Additionally, the steel side sheet enclosure offers superior durability and protection. The table is exceptionally versatile, allowing for multiple configurations of elastomeric, pneumatic, or spring-based damping systems, ensuring optimal performance based on the specific vibrations present in the laboratory. The use of Grade-1 accuracy granite ensures critical measuring accuracies, making it a vital component for analytical and laboratory balances or control scales. This anti-vibration table enhances the reliability of results while significantly mitigating the impact of surrounding vibrations, thus creating an ideal environment for precision testing.
Key Features
| Features | Description |
|---|---|
| Granite Base Size | L 750 x B 600 x T 30 mm |
| Construction Type | 60 mm Tubular Structure with Wrap Around Construction |
| Aesthetic Design | Left Angular Profile Front Keyboard Panel |
| Leveling Precision | Auto leveling within ± 0.15 mm |
| Vibration Damping | Supports elastomeric, pneumatic or spring-based damping options |
| Sensor Integration | 3 Sensors for accurate auto-leveling |
| Material Quality | Grade-1 accuracy granite surface plate |
| Enclosure Material | Laser cut SS side sheet for durability |
| Compatible Accessories | Printer Stand (to be ordered separately) |
| Attributes | Description |
|---|---|
| Dimensions (L x B x T) | 750 mm x 600 mm x 30 mm |
| Tubular Structure Height | 60 mm |
| Damping Type | Pneumatic supported membrane air springs |
| Sensors | 3 sensors for auto leveling |
| Leveling Accuracy | ± 0.15 mm |
| Additional Components | Manifold, Regulator, FRL unit, Shut-off wall, NRV |
| Construction | Completely enclosed in laser cut SS side sheet |
| Intended Use | Ideal for Testing/Quality Laboratories in vibrating environments |
| Customization | Selection of damping type depending on vibration levels |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Front keyboard panel for aesthetic purpose
Pneumatic supported membrane air springs with 3 sensors and auto leveling within ± 0.15 mm complete with manifold and regulator, FRL unit, shut-off wall and NRV. Completely enclosed in laser cut SS side sheet. Printer Stand (To be Ordered Separately)
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Front keyboard panel for aesthetic purpose
Pneumatic supported membrane air springs with 3 sensors and auto leveling within ± 0.15 mm complete with manifold and regulator, FRL unit, shut-off wall and NRV. Completely enclosed in laser cut SS side sheet. Printer Stand (To be Ordered Separately)
