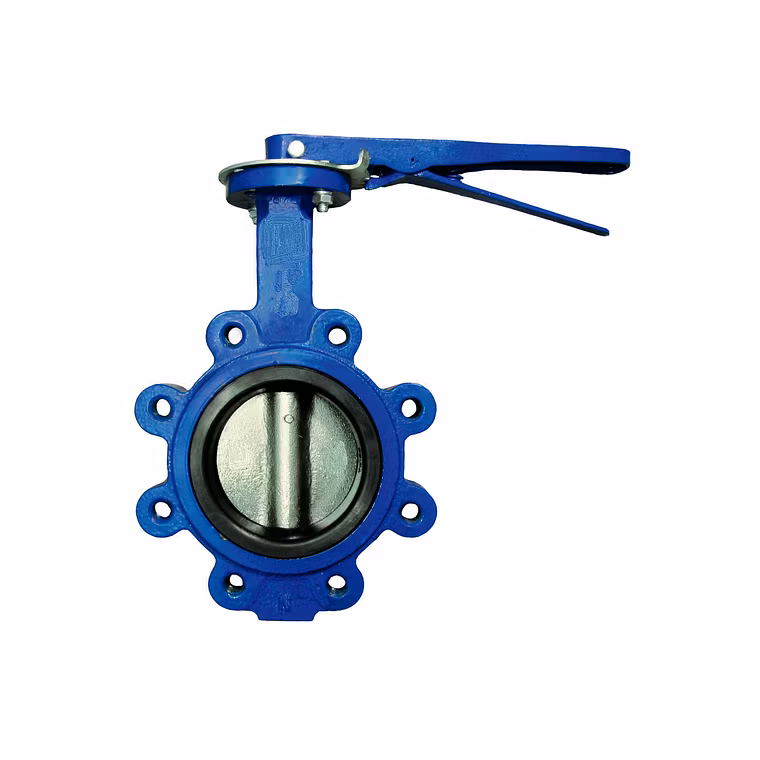

C-Way Engineering Exports is proud to present its High Performing Cast Iron Lug Type Butterfly Valve, specifically designed for applications requiring tight shut-off and effective flow control. With a nominal size of 40mm, these butterfly valves are manufactured using advanced technologies and materials to ensure durability and reliability, making them the preferred choice in various industrial applications. Our valves comply with stringent industry standards, including API 609 and EN 593, ensuring robust performance under various conditions. Engineered to operate efficiently in processes involving liquids, this butterfly valve boasts a temperature range of -4°F to +320°F and a maximum pressure capacity of 10 bars. With features such as a one-piece disc and shaft, a centric bearing, and a mirror-polished sealing surface, our butterfly valves deliver excellent functionality while minimizing maintenance costs. Choose C-Way for high-quality valves tailored to meet your industry needs.
Key Features
| Features | Description |
|---|---|
| Type | Lug Type Butterfly Valve |
| Manufacturer | C-Way Engineering Exports |
| Size | 40mm |
| Temperature Range | -4°F to +320°F |
| Max Pressure | 10 bars |
| Materials | Cast Iron, EPDM vulcanized elastic ring |
| Design Standards | API 609, EN 593 |
| Sealing Surface | Mirror Polished |
| Disc | Ductile Iron, Nickel Coated (20-30 microns thickness) |
| Applications | Water Works, Power Plants, Sewage Plants, Chemical and Petrochemical Plants |
| Attributes | Description |
|---|---|
| Basic Design | API 609 |
| Face to Face Dimension | API 609 |
| Inspection and Test Standard | API 598 |
| Flange Accommodation | DINE EN 1092 PN 10 / PN 16 / ANSI B 16.5, Class 150 |
| Flange Surface Design | DIN 2526 Form A-E / DIN 2642 / ASME B 16.5 RF, FF |
| Top Flange | EN ISO 5211 |
| Leakage Rate | ISO 5208, Category 3 |
| Standard of Fitness for Use | EN 593 (DIN 3354) |
| Min Temperature | -10°C |
| Max Temperature | +110°C / +130°C temporarily |
| Long Neck for Isolation | ISO 5211 mounting pad |
| Construction | Split Body with Optional Stainless Steel Screws |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
C-Way Engineering Exports is trusted butterfly valve manufacturers in India. We are specialized in butterfly valves that are highly efficient in modulating and guiding all types of liquids. Our high-pressure valve is known and accepted by thousands of industries running their variety of applications throughout India. They have placed trust and confidence in our products due to our technological expertise, innovative engineering and the safety features we have adopted. Our success stories as industrial valves manufacturers in India continue thanks to the continuous efforts and dedication of our technicians. Hence, we are the leading control valve manufactures in India.
C-Way Engineering Exports are leading manufacturer and supplier of the Butterfly Valves, Industrial Valves, Gate Valve, Globe Valve, Ball Valve, Check Valve, Check Valve Etc. Butterfly valves have been very commonly used in various water supply and other industrial services, irrespective of sizes, pressure ratings, fluids handled, type of operators etc. our BF valves are the most preferred choice of the discerning customers. We have also kept our valves in tune with the latest technological advancements in materials, manufacturing, pattern making & foundry & operators fields. This has enabled us to offer valves in Cast / fabricated constructions in Cast Iron, Carbon & Alloy Steels & Stainless Steels & also rubber-lined variety. The types of operators offered are Manual, Electrical, and Pneumatic & Electro- Hydraulic.
