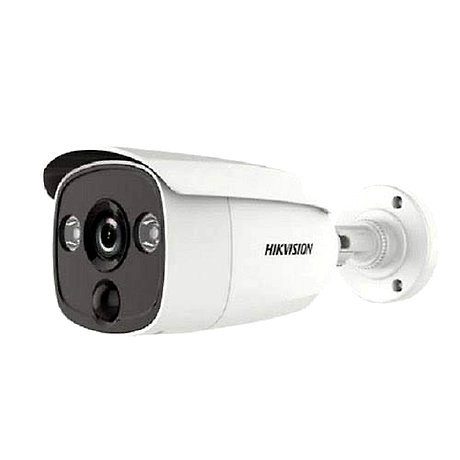

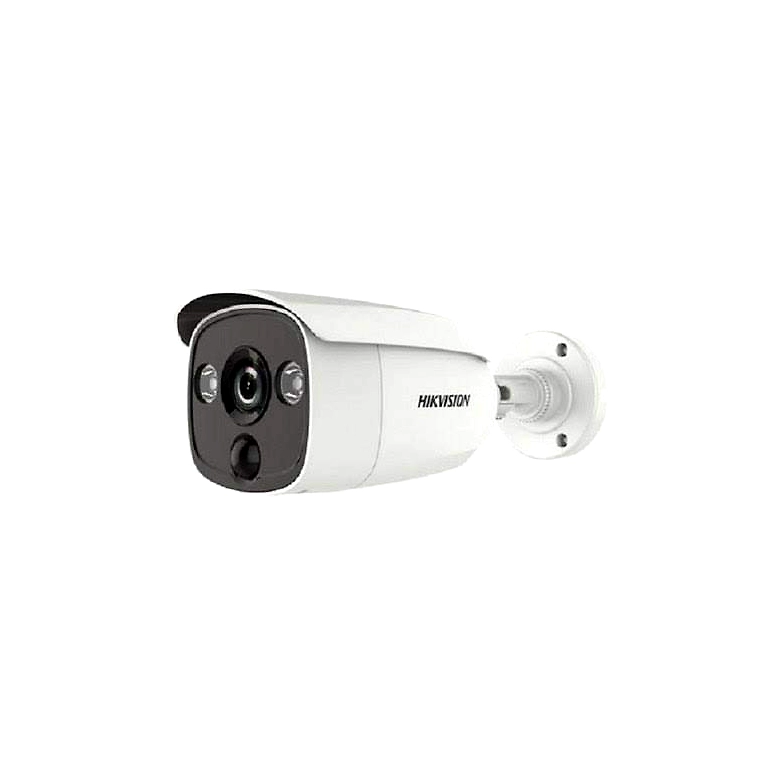

Hikvision DS-2CE11D0T-PIRLO 2 MP Metal PIR WDR Low Light DS-2CE11D0T-PIRLO 2 MP PIR Bullet Camera

Advance Information*

Introduction

The Hikvision DS-2CE11D0T-PIRLO 2 MP PIR Bullet Camera is designed to provide a reliable security solution for outdoor environments. With advanced features including a high-quality CMOS sensor, EXIR technology, PIR detection, LED alarm, and Smart IR, this robust camera ensures clear and detailed surveillance footage regardless of lighting conditions. Its IP67 weather resistance rating guarantees operational effectiveness under various weather conditions, making it suitable for a wide range of applications such as residential areas, campuses, retail stores, and more.

Key Features

• High Definition Video Output: This camera boasts a 2 Megapixel resolution, offering crisp and clear video imagery.
• Wide Dynamic Range (WDR): Equipped with True WDR (Wide Dynamic Range) which provides clear images even in high-contrast lighting conditions.
• EXIR Technology: EXIR (Extended Infrared) technology provides enhanced night vision capabilities with effective IR coverage up to 20 meters.
• PIR Motion Detection: Passive Infrared (PIR) detection senses body heat, enhancing motion-based alerts and reducing false alarms.
• LED Alarm: An integrated LED alarm notifies of detected intrusions.
• Smart IR: Adjusts the intensity of the infrared LEDs to prevent overexposure in night mode.
• Robust Construction: Built with a metal exterior for durability and an IP67 weather-resistant rating for harsh environmental conditions.
• Flexible Installation Options: Supports 2.8mm and 3.6mm lenses for varying focal lengths and fields of view.

Detailed Specifications

Image Sensor

• Sensor Type: 2 Megapixel CMOS Sensor
• Effective Pixels: 1920 (H) x 1080 (V)
• Minimum Illumination: 0.01 Lux @ F1.2

Lens Options

• Lens: 2.8 mm / 3.6 mm
• Lens Mount: M12
• Angle of View: 103.5° (2.8 mm), 82.6° (3.6 mm)

Infrared

• Infrared Distance: Up to 20 meters
• IR Cut Filter: Automatically adapts for day/night conditions
• EXIR Technology: Enhanced IR emission for better nighttime performance

Video

• Resolution: 1920 x 1080 @ 30fps
• Signal System: PAL/NTSC
• WDR: True WDR
• OSD Menu: Over the Coax (Up the Coax)

Detection and Smart Features

• PIR Motion Detection: Integrated Passive Infrared Sensor
• Smart IR: Adjusts IR strength to prevent IR glare
• LED Alarm: Visible LED alert for triggered detections

Interface

• Video Output: 1 HD Analog output
• Alarm Output: 1 channel

Electrical Parameters

• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 6W

Environmental

• Operating Conditions: -40 °C to +60 °C, Humidity 90% or less (non-condensing)
• Weather Resistance: IP67-rated, ensuring complete protection against dust and water ingress

Physical Characteristics

• Housing: Metal
• Dimension: 172 mm × 70 mm × 70 mm
• Weight: Approximately 500 grams

Advanced Technology

Enhanced Infrared Performance

The Hikvision DS-2CE11D0T-PIRLO employs EXIR 2.0 technology, which significantly improves the LED light, providing up to 30% more efficient illumination and reducing the chances of over-saturation and dark corners.

PIR Detection

The PIR detection utilizes passive infrared sensors to accurately detect human motion by sensing body heat. This minimizes false alarms caused by irrelevant objects like moving shadows or animals.

True Wide Dynamic Range (WDR)

With True WDR technology, this camera captures dual scans of each scene, thereby balancing the pixels in each scan and combining them to generate a single frame with balanced lighting. This ensures that both dark and bright areas are well-represented in the final video output.

Installation and Setup

Simple Configuration

The camera supports an On-Screen Display (OSD) menu via Up-the-Coaxial cable, making it convenient for installation and setup with HD-TVI recorders. Technicians can effortlessly adjust settings such as contrast, brightness, and sharpness, and activate motion detection zones.

Flexible Mounting Options

Designed to be versatile for various mounting and positioning requirements, the Hikvision DS-2CE11D0T-PIRLO can be easily installed on
