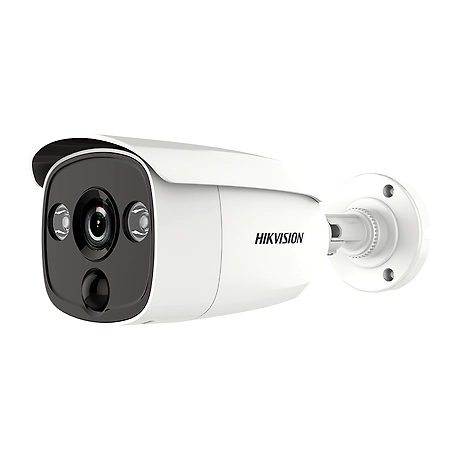

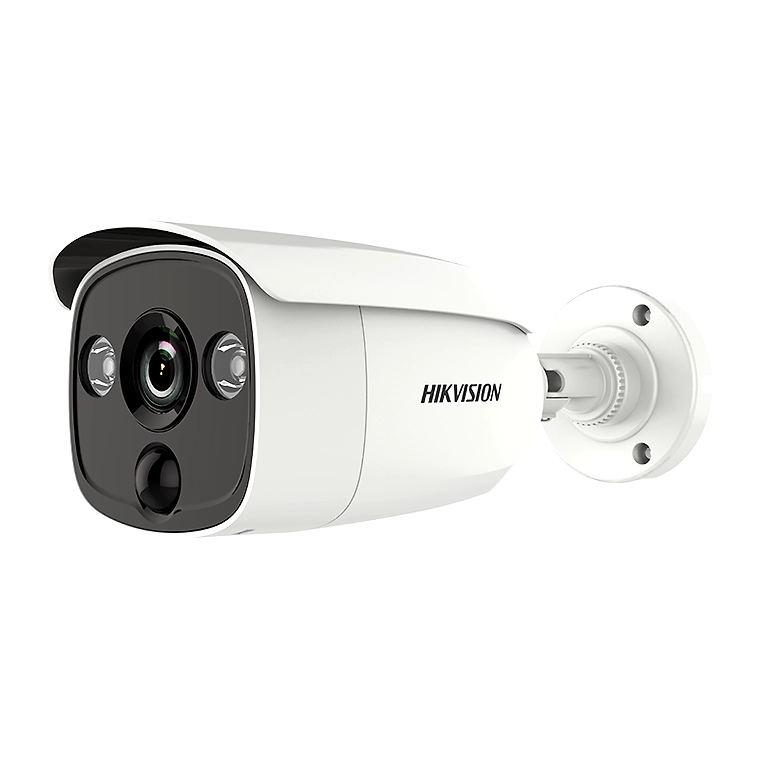

Hikvision DS-2CE12H0T-PIRLO 5 MP PIR Fixed Bullet Camera

Brand: Hikvision

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry
5MP@20fps, 4MP@25fps(P)/30fps(N)(Default),EXIR, 20m IR, Outdoor EXIR Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, PIR Detection，Led Alarm&Lighting,Alarm out,Smart IR, DNR,OSD Menu(Up the Coax), IP67, 2.8/3.6mm Lens
Feature*
  • IR Range: Up to 20 meters
  • OSD Menu: Up the Coax
  • Lens Size: 2.8/3.6mm
  • Resolution: 5MP@20fps or 4MP@25fps(P)/30fps(N)(Default)
  • Additional Features: PIR Detection, LED Alarm, Lighting Alarm Out
  • Weatherproof Rating: IP67
  • Minimum Illumination: 0.01 Lux/F1.2

  • Additional information

    Advance Information*

    Overview

    The Hikvision DS-2CE12H0T-PIRLO 5 MP PIR Fixed Bullet Camera is an advanced surveillance tool designed to provide exceptional image quality, enhanced security features, and reliable performance in a variety of conditions. This state-of-the-art camera is ideal for both residential and commercial applications, ensuring comprehensive monitoring with its high-resolution capabilities and innovative technology.

    Key Features

    High Resolution

    • 5MP at 20fps: Capture clear and detailed images with high-definition resolution. The 5-megapixel sensor guarantees superior image clarity, making it easier to identify critical details in video footage.
    • 4MP at 25fps(P)/30fps(N) (Default): Provides high-fidelity video recordings, ensuring smooth playback and precise detail even during high-motion scenes.

    Superior Night Vision

    • EXIR Technology: Uses Extended Infrared technology for superior night vision, allowing the camera to capture clear images up to 20 meters in total darkness. EXIR provides better illumination, reduces overexposure at the center, and minimizes dark corners in the image.
    • Smart IR: Ensures the infrared light is evenly distributed across the camera's field of view. This minimizes highlights and overexposure, delivering clear images even at night.

    Enhanced Security

    • PIR Detection: Equipped with Passive Infrared (PIR) sensors, the camera can detect the presence of infrared radiation emanating from objects with body heat. This feature significantly reduces false alarms caused by non-heat-emitting sources.
    • LED Alarm & Lighting: The integrated LED alarm and lighting system provides an immediate visual alert when motion is detected, enhancing security by deterring intruders.
    • Alarm Out: Facilitates swift alerting and integration with other alarm systems, ensuring prompt responses to detected events.

    Camera Performance

    Low-Light Performance

    • 0.01 Lux/F1.2: The superior low light sensitivity allows the camera to perform efficiently in dimly lit environments, capturing clear images even with minimal illumination.

    Imaging Adaptability

    • ICR (Infrared Cut Filter Removal): Enhances image quality in varying lighting conditions by automatically adjusting the infrared filter. This ensures optimal color accuracy in daylight and improved visibility in low-light scenarios.
    • DNR (Digital Noise Reduction): Minimizes noise in the image without compromising detail, delivering clearer and sharper video, especially in low light or high-contrast scenes.

    Installation and Usability

    Lens Options

    • 2.8/3.6mm Lens: Choice of lens options allows for flexibility in field of view, enabling customization to match specific surveillance needs.

    User-Friendly Controls

    • OSD Menu (Up the Coax): Offers easy access to the On-Screen Display menu for quick and convenient camera settings adjustment via coaxial cable.

    Durability and Protection

    • Outdoor EXIR Bullet Design: Features a robust and weather-resistant design, making it ideal for outdoor installations.
    • IP67 Rating: Ensures the camera is dust-tight and protected against the effects of temporary submersion in water, guaranteeing reliable operation in various environmental conditions.

    Technical Specifications

    Camera

    • Image Sensor: 5MP high-performance CMOS
    • Signal System: PAL/NTSC
    • Effective Pixels: 2560(H) x 1944(V)
    • Minimum Illumination: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
    • Shutter Time: 1/25(1/30)s to 1/50,000s
    • Lens: 3.6mm (2.8mm, 6mm optional)
    • Lens Mount: M12
    • Day & Night: ICR
    • Video Frame Rate: 5MP@20fps, 4MP@25fps(P)/30fps(N) (Default)


    • HD Video Output: 1 Analog HD output
    • Synchronization: Internal Synchronization
    • S/N Ratio: More than 62 dB

    Functions

    • Day/Night Mode: Auto / Color / B/W
    • Menu Language: English
    • White Balance: Auto, MWB
    • AGC: Auto
    • Backlight Compensation: WDR
    • Noise Reduction: 2D DNR
    • Functions: Brightness, Sharpness, DNR, Mirror

    General

    • Power Supply: 12 VDC±15%
    • Power Consumption: Max. 4.6W
    • Weather Protection: IP67
    • IR Range: Up to 20 meters
    • PIR Angle:

    Hikvision 5MP bullet cameraOutdoor EXIR bullet cameraSurveillance cameraSecurity cameraHigh-resolution bullet cameraIR bullet cameraWeatherproof bullet cameraPIR detection cameraLED alarm cameraLighting alarm cameraIP67 bullet camera
    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
