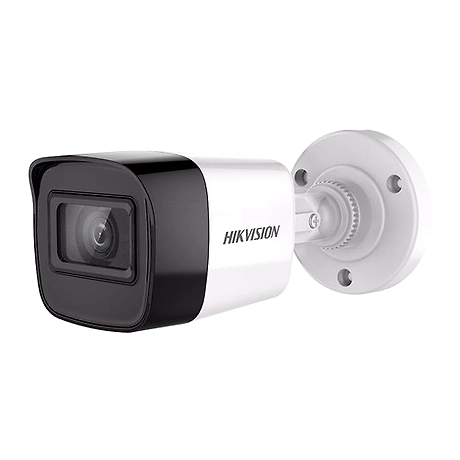

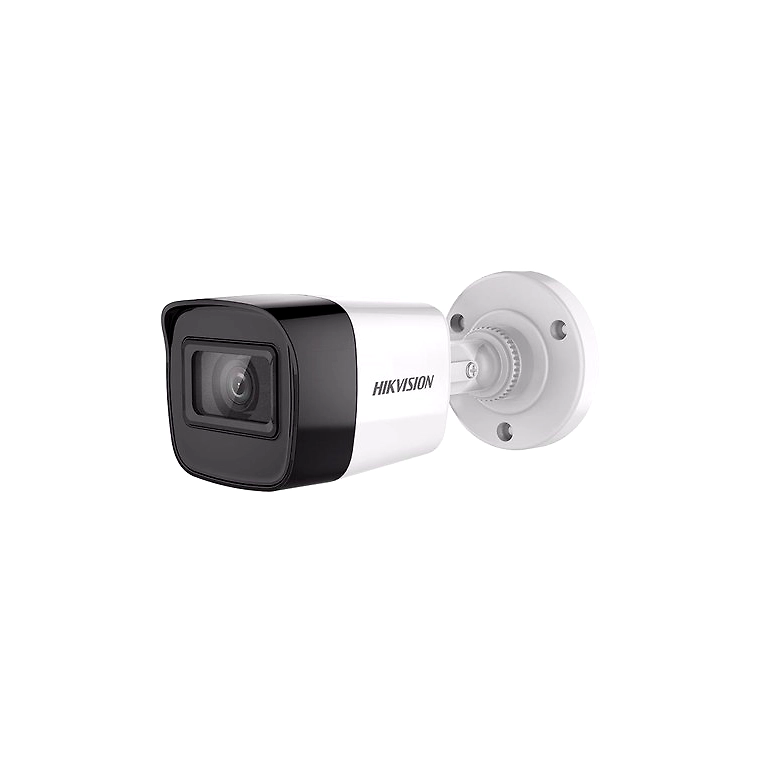

Hikvision DS-2CE16U1T-ITF 8MP CCTV Bullet Camera

Advance Information*

Introduction

The Hikvision DS-2CE16U1T-ITF is a high-performance 8MP CCTV bullet camera designed to deliver high-resolution surveillance with a plethora of advanced features. This camera from Hikvision's Turbo HD Series is ideal for both residential and commercial applications where clear, detailed video footage is necessary.

Image Quality and Resolution

At the heart of the Hikvision DS-2CE16U1T-ITF lies an 8.3MP CMOS sensor that captures stunning 4K imagery. This sensor allows the camera to operate in multiple video formats, including:

• 8.3MP @ 12.5fps (Default)
• 5MP @ 20fps
• 4MP @ 25fps (P) / 30fps (N)
• 2MP @ 25fps (P) / 30fps (N)

This adaptability makes the camera extremely versatile, capable of high-resolution 4K video or smooth Full HD footage depending on your specific needs.

Night Vision and Performance in Low Light

One of the standout features is its impressive night vision capability. With an IR range of up to 30 meters, the camera is equipped with EXIR 2.0 technology to provide superior night-time performance by reducing the IR reflection and covering a more extensive area. Some specifics include:

• 0.01 Lux @ F1.2, 0 Lux with IR
• Smart IR technology to prevent overexposure and enhance image clarity in low-light conditions

Lens Options

The Hikvision DS-2CE16U1T-ITF offers multiple lens options to cater to various field-of-view requirements:

• 2.8mm Lens: Provides a wide viewing angle suitable for broad surveillance areas
• 3.6mm Lens: Offers a balanced viewing angle, ideal for medium-range applications
• 6mm Lens: A narrower field of view for focused surveillance, perfect for long-distance monitoring

Versatile Video Output

In addition to its high-resolution imaging capabilities, this bullet camera supports multiple video signal outputs, including:

• TVI (Transport Video Interface)
• AHD (Analog High Definition)
• CVI (Composite Video Interface)
• CVBS (Composite Video Baseband Signal)

This feature ensures compatibility with a variety of DVR systems and allows smooth integration into existing surveillance setups.

Advanced Features

• Smart IR: Automatically adjusts the infrared light intensity to avoid overexposure of objects that are close to the camera at night.
• OSD Menu (Up the Coax): The OSD (On-Screen Display) menu provides easy access to the camera’s configuration settings, which can be adjusted using the same coaxial cable that transmits the video data.
• DNR (Digital Noise Reduction): Reduces noise in low-light environments, enhancing image quality by ensuring clearer and cleaner video footage.

Durability and Weather Resistance

Constructed with outdoor surveillance in mind, the DS-2CE16U1T-ITF is rated IP67, indicating its high resistance to dust and water ingress, making it ideal for all weather conditions. It will continue performing reliably, whether installed in a dusty industrial area or in an outdoor setting exposed to rain and moisture.

Power Supply

The camera operates on a 12VDC power supply, offering a consistent and reliable source of power. The camera's low power consumption also makes it a cost-effective solution for long-term operation.

Specifications

Image Sensor: 8.3MP CMOS

Signal System: PAL/NTSC

Frame Rate: 8.3MP@12.5fps (Default), 5MP@20fps, 4MP@25fps(P)/30fps(N), 2MP@25fps(P)/30fps(N)

Resolution: 4K/5MP/4MP/Full HD

Min. Illumination: 0.01 Lux @ F1.2, 0 Lux with IR

Lens Options: 2.8mm/3.6mm/6mm

Horizontal Field of View: - 2.8mm lens: Approximately 102° - 3.6mm lens: Approximately 80° - 6mm lens: Approximately 52°

IR Range: Up to 30 meters with EXIR 2.0

WDR (Wide Dynamic Range): Supported (Digital)

Day/Night: ICR (Infrared Cut-Removal Filter)

OSD Menu: Access via coaxial cable

Noise Reduction: DNR (Digital Noise Reduction)

Video Output: TVI/AHD/CVI/CVBS

Ingress Protection: IP67

Power Supply
