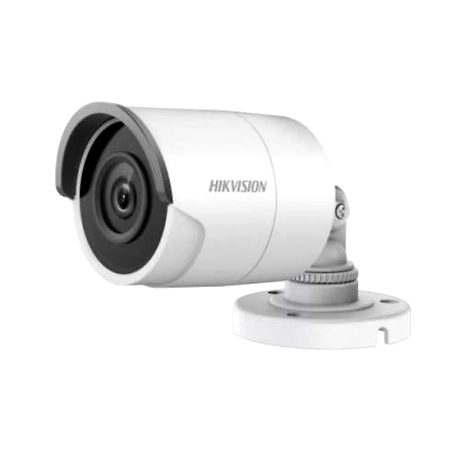

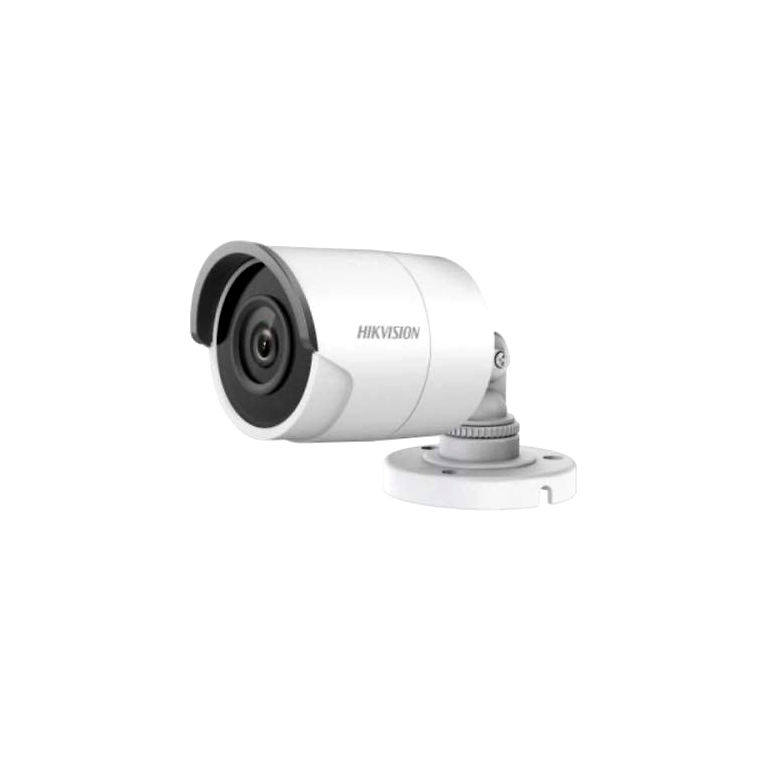

Hikvision DS-2CE17U8T-IT 8 MP high performance bullet camera

Advance Information*

Introduction

The Hikvision DS-2CE17U8T-IT 8 MP High Performance Bullet Camera is an advanced surveillance option tailored for both residential and commercial security needs. This state-of-the-art security camera is built to deliver ultra-high-definition video quality, ensuring that no critical detail goes unnoticed. Its robust set of features and superior build quality make it a reliable choice for any high-security environment, including banks, retail stores, office complexes, and various other applications.

Key Features

1. High-Resolution Imaging:

   • The camera boasts an 8.3-megapixel sensor that captures images at a default frame rate of 12.5 frames per second (fps). It supports various resolutions: 8MP @ 12.5fps (default), 5MP @ 20fps, 4MP @ 25fps (P) or 30fps (N), and 2MP @ 25fps (P) or 30fps (N). This flexibility allows you to choose the best resolution and frame rate to suit your specific needs.

2. Advanced Infrared Capabilities:

   • Equipped with EXIR 2.0 technology, the DS-2CE17U8T-IT has a powerful 40-meter IR range. The smart IR feature ensures that close-up objects are not overexposed, maintaining a balanced illumination level across all viewing areas.

3. Enhanced Low-Light Performance:

   • The camera features an impressive low-light sensitivity of 0.003 Lux/F1.2, allowing it to capture clear images in dim lighting conditions. The True Day/Night IR Cut Filter (ICR) further enhances image clarity by filtering out unwanted IR light during the day and improving infrared sensitivity at night.

4. Smart Features for Enhanced Security:

   • The Smart IR function automatically adjusts the intensity of the infrared LEDs to avoid overexposure in low-light conditions.
   • True Wide Dynamic Range (WDR) of 120dB ensures that both bright and dark areas in the image are visible at all times, making it easier to discern important details.
   • 3D Digital Noise Reduction (3D DNR) minimizes noise and makes images clearer and sharper, even under low-light conditions.

5. Versatile Output Options:

   • The DS-2CE17U8T-IT supports both TVI and CVBS video output formats. This versatility makes it compatible with a variety of digital and analog recording systems, ensuring seamless integration into existing security setups.
   • The camera also features an On-Screen Display (OSD) menu that can be accessed Up the Coax (UTC). This allows for easy configuration and adjustment of camera settings.

6. Multiple Lens Options:

   • The camera comes with three lens options: 2.8mm, 3.6mm, and 6mm. These different focal lengths allow you to choose the best angle of view for your specific surveillance needs. The 2.8mm lens offers a wide field of view, while the 6mm lens allows for a more focused and narrowed focus area.

7. Robustly Built for Outdoor Use:

   • Designed to withstand harsh weather conditions, the DS-2CE17U8T-IT has an IP67 weatherproof rating. This ensures that the camera remains functional even in heavy rain, extreme temperatures, and dusty environments.

Technical Specifications

General Specifications:

• Image Sensor: 8.3-megapixel CMOS
• Signal System: PAL/NTSC
• Effective Pixels: 3840 (H) × 2160 (V)
• Minimum Illumination: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/25(1/30) s to 1/50,000 s
• White Balance: Auto/Manual
• Day & Night: IR cut filter with auto switch
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: True WDR (120 dB)

Lens:

• Lens Type: Varied focal length options
• 2.8mm: 102° Field of View (FOV)
• 3.6mm: 79° Field of View (FOV)
• 6mm: 50° Field of View (FOV)
• Lens Mount: M12
• Adjustment Range: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Infrared:

• IR Range: Up to 40 meters
• IR Cut Filter: Yes

Video Output:

• Video Output: Switchable TVI/A
