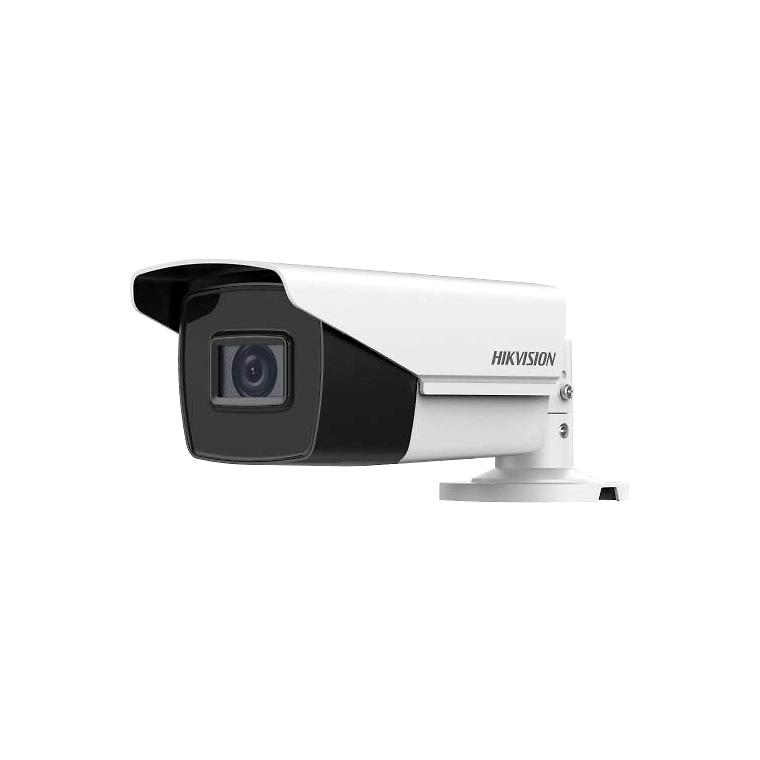

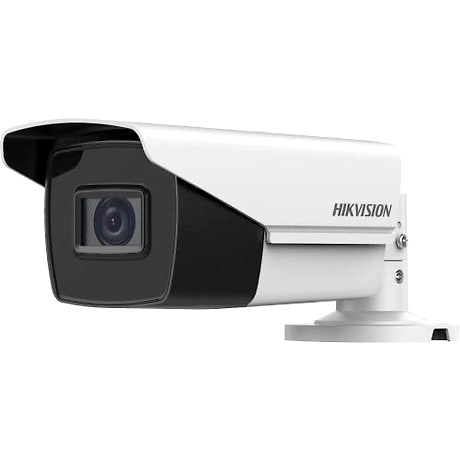

Hikvision DS-2CE19D3T-IT3ZF 2 MP ,1080pUltra Low Light Motorized Varifocal Bullet Camera

Advance Information*

Introduction

The Hikvision DS-2CE19D3T-IT3ZF Ultra-Low Light Motorized Varifocal Bullet Camera is engineered to provide optimum security surveillance solutions, boasting an array of advanced features and technologies. This 2 MP, 1080p bullet camera is ideally suited for both residential and commercial outdoor environments, ensuring clear and detailed imagery even under challenging light conditions. With a robust suite of high-tech functionalities, including an EXIR technology for extended IR range, true Wide Dynamic Range (WDR), and smart IR capabilities, this camera surpasses many industry standards to deliver superior surveillance performance.

Key Features

High-Resolution Imaging

• 2MP CMOS Sensor: Provides a resolution of 1080p, ensuring crisp and clear images. Particularly beneficial for detailed monitoring, identifying faces or license plates.
• 1080P@25fps(P)(Default)/30fps(N): Offers high frame rates for smooth video capture, with default settings ensuring optimal performance in PAL and NTSC formats.

Advanced Low-Light Performance

• Ultra-Low Light Sensitivity: With a minimum illumination of 0.005 Lux @ F1.2, it captures vivid images even in near-dark conditions.
• EXIR Technology: This ensures superior infrared light usage, enhancing night-time image quality and providing a night vision range of up to 70 meters.

Versatile and Robust Design

• Outdoor EXIR Bullet Design: Built for resilience against harsh environmental conditions, perfect for outdoor installation.
• IP67 Rating: Confers full protection against dust and water, ensuring functionality in extreme weather conditions.

Detailed Specifications

Camera

• Image Sensor: 2 MP CMOS Sensor.
• Resolution: 1080P at 25fps (P) / 30fps (N).
• Signal System: Supports multiple video signal outputs including TVI, AHD, CVI, and CVBS.
• Minimum Illumination: 0.005 Lux @ F1.2.

Lens

• Vari-focal Lens: 2.7-13.5mm motorized varifocal lens allowing for flexible focus and zoom adjustments.
• Auto Focus: Ensures hassle-free, precise focusing and image clarity.
• IR Distance: 70 meters, enabled with EXIR for enhanced night vision.

Imaging Features

• True WDR (120dB): Combines multiple exposure images to handle high-contrast lighting conditions, balancing brightness and eliminating washed-out or overly dark areas.
• 3D DNR (Digital Noise Reduction): Reduces interference and graininess which improve image clarity, particularly in low light.
• BLC (Back Light Compensation): Enhances image visibility in bright or backlit conditions.
• ICR (Infrared Cut Filter Removal): Ensures optimal color accuracy in daylight and superior visibility at night.

Functionalities

• Smart IR: Automatically adjusts infrared illumination to prevent over-exposure.
• OSD Menu: Feature-rich menu with settings accessible up-the-coax (UTC), simplifying configuration and adjustment without physical interaction.
• Multi-language OSD

Power Supply

• Power Input: 12VDC/24VDC, versatile power options to suit varied install environments.

Protection

• IP Rating: IP67, providing dust-tight protection and protection against heavy sea or water jets.
• Materials: Robust casing designed to withstand harsh environments.

Installation and Integration

The DS-2CE19D3T-IT3ZF is designed for straightforward installation with additional features that ease setup and configuration. The motorized varifocal lens simplifies focusing and zooming, complimented by the auto-focus functionality, substantially cutting down installation time and effort. The camera's compatibility with different video signal formats including TVI, AHD, CVI, and CVBS ensures versatility and ease of integration into existing CCTV systems.

Applications

Due to its durable build and advanced imaging capabilities, the DS-2CE19D3T-IT3ZF is suitable for a wide range of applications such as: - Commercial Surveillance: Office buildings, warehouses, and markets can be monitored effectively. - Residential Security: Ideal for ensuring the safety of houses and apartments. - Public Infrastructure: Used for monitoring parks, streets, and other public spaces. - Industrial Sites: Provides an excellent level of surveillance in and around factories or process plants.

Summary

The Hikvision DS-2CE19D3T-IT3ZF Ultra-Low Light Motorized Varifocal Bullet Camera stands out in the realm of modern surveillance technology. With robust features like a high-sensitivity 2MP CMOS sensor, true WDR, EXIR night vision capability, and a sturdy, weatherproof design,
