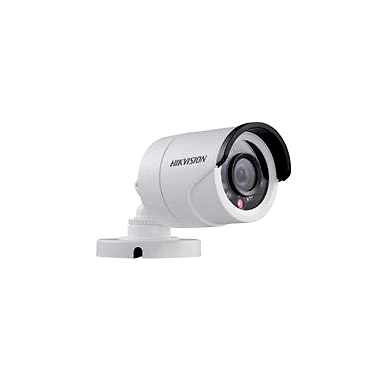

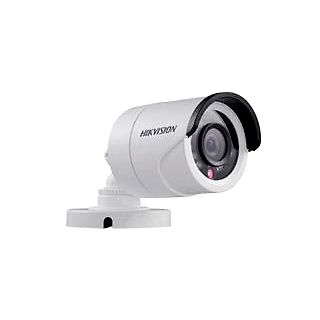

Hikvision DS-2CE1AC0T-IRF Turbo HD Camera 1MP Camera

Advance Information*

Introduction

The Hikvision DS-2CE1AC0T-IRF Turbo HD Camera represents a pinnacle in surveillance technology with its state-of-the-art features designed for superior security monitoring. Developed by Hikvision, a world-leading provider of innovative video surveillance products and solutions, this camera promises high-definition video quality, robust durability, and advanced imaging capabilities. It is ideal for a wide range of outdoor surveillance applications, offering reliability and functionality in various environmental conditions.

Key Features

High-Definition Video Quality

Equipped with a 1MP high-resolution sensor, the DS-2CE1AC0T-IRF captures detailed 720p HD video, providing clear and sharp images essential for accurate monitoring and incident detection.

• Resolution: 720p HD (1280 x 720 pixels)
• Image Sensor: 1/4" Progressive Scan CMOS

Infrared Capabilities and Low-Light Performance

One of the standout features of this camera is its infrared capabilities. With 24 infrared (IR) LEDs, the camera can capture high-quality images even in complete darkness, up to a distance of 20 meters (65.6 feet).

• IR LEDs: 24 pcs
• IR Range: Up to 20 meters
• Minimum Illumination: 0.1 Lux/F1.2 (Color), 0 Lux with IR

Smart IR

The Smart IR feature prevents the LEDs from overexposing the image, ensuring that close objects are captured clearly and maintain their detail.

Indoor and Outdoor Use

Designed for versatility, the DS-2CE1AC0T-IRF is housed in an IP66-rated, weatherproof casing. This makes it suitable for both indoor and outdoor use, providing robust protection against elements such as rain, dust, and extreme temperatures.

• Ingress Protection: IP66
• Working Temperature: -40°C to 60°C (-40°F to 140°F)

Lens Options

The camera offers two lens options to cater to different surveillance requirements:

• Lens: 2.8mm (wide-angle view) or 3.6mm (narrower field of view)
• Field of View:
• 2.8mm: Approximately 92°
• 3.6mm: Approximately 72°

Infrared Cut Filter (ICR)

The inclusion of an Infrared Cut Filter enhances the camera's capability to produce clear daytime images and exceptional night-time performance by automatically switching the filter on and off in response to varying light conditions.

Versatile Video Signal Output

The DS-2CE1AC0T-IRF supports multiple video signal outputs, making it compatible with a variety of older and newer video recording equipment. This flexibility is vital for integrating the camera into existing surveillance systems without significant upgrades.

• Supported Video Signals: TVI, AHD, CVI, CVBS

Power Supply Requirements

• Power Supply: 12 VDC ± 15%
• Power Consumption: Max. 4W

Technical Specifications

Imager

• Image Sensor: 1/4" Progressive Scan CMOS
• Effective Pixels: Approximately 1 Megapixel
• Signal System: PAL/NTSC

Shutter and Image Settings

• Electronic Shutter Speed: 1/25 s to 1/50,000 s
• Image Settings: Brightness, Contrast, DNR, Mirror

Day/Night Mode

• **IR Cut Filter with Auto Switch
• Day/Night: Automatic

Video Frame Rate

• Frame Rate: 720p @ 25 fps (PAL) / 30 fps (NTSC)

Physical and Environmental Characteristics

• Dimensions: 86.22 mm × 82.05 mm × 220.13 mm (3.39" × 3.23" × 8.67")
• Weight: Approximately 430 g (0.95 lb)
• Material: Durable plastic casing

Application Scenarios

The Hikvision DS-2CE1AC0T-IRF Turbo HD Camera is ideal for various surveillance applications, including:

• Residential Security: Monitor entrances, driveways, gardens, and other outdoor spaces around the home.
• Retail Surveillance: Keep an eye on store perimeters, entrances, and parking lots to deter theft and improve customer safety.
• Commercial and Industrial: Secure building perimeters, warehouses, and loading docks.
• Public Spaces: Effective for monitoring parks, streets, and public squares to enhance public safety.

Installation and Usage

Installing the DS-2CE1AC0T-IRF is straightforward, due to its user-friendly design and flexible mounting options. The camera comes with mounting hardware and a comprehensive installation guide, ensuring a hassle-free setup experience.

Mounting Options

-
