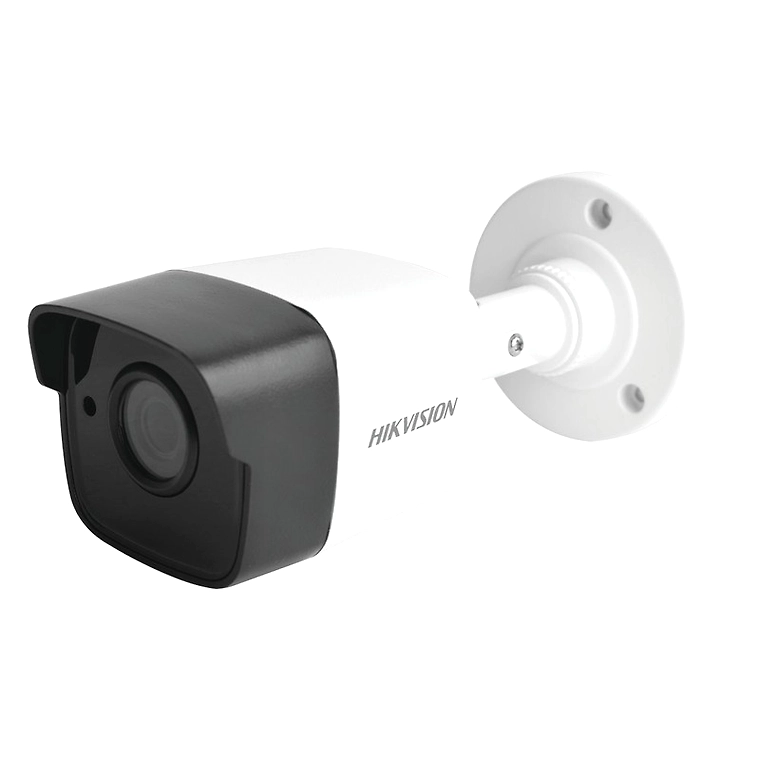

Hikvision DS-2CE1AC0T-IT1F 1MP IR EXIR Night Vision 720p HD White CCTV Bullet Camera

Advance Information*

Introduction

The Hikvision DS-2CE1AC0T-IT1F is a technologically advanced, robust, and versatile 1MP IR EXIR Night Vision 720p HD White CCTV Bullet Camera designed to deter and provide crucial surveillance for both residential and commercial properties. Boasting high-definition imaging, exceptional night vision capabilities, and a durable design, this outdoor camera from Hikvision becomes an essential element in any effective security system.

Key Features

1. HD720p Resolution

2. The camera offers a high-definition resolution of 720p, ensuring clear and detailed surveillance footage. The 1MP CMOS sensor plays a crucial role in delivering high-quality images, significantly enhancing the clarity in critical areas monitored by the device.

3. 1MP CMOS Sensor

4. Equipped with a state-of-the-art 1-megapixel CMOS sensor, the camera captures comprehensive details with precision. This sensor is designed to perform efficiently under various lighting conditions, making it a reliable choice for continuous monitoring.

5. EXIR Technology

6. The camera integrates one piece of EXIR (Extended Infrared) LED which significantly improves night vision. EXIR technology enhances the infrared lighting, providing better illumination in the darkness with lesser optical dispersion, leading to more evenly distributed light and clearer footage.

7. 20m IR Range

8. With an impressive IR range of up to 20 meters, the DS-2CE1AC0T-IT1F ensures that the surveillance area is well-lit despite low light conditions. This extended range is ideal for large outdoor areas, providing superior night-time surveillance.

9. Outdoor EXIR Bullet Design

10. The outdoor bullet design of the camera not only provides a higher degree of protection against adverse weather conditions but also acts as a visual deterrent to potential intruders.

11. ICR (Infrared Cut Filter Removal)

12. The camera features Infrared Cut Filter Removal, which improves the image quality in both day and night conditions. During the day, the IR cut filter blocks infrared light to avoid color distortion, while at night, it removes the filter for enhanced low-light performance.

13. Low Lux Performance and Smart IR

14. With a low lux rating of 0.1 Lux/F1.2, the camera can still gather quality images in dim lighting without the need for artificial light. Smart IR ensures that the infrared light adjusts to prevent overexposure in close-up shots, balancing the lighting to maintain the image’s clarity.

15. Wide Operating Temperature Range

16. The camera is engineered to function in extreme temperatures, ranging from -40°C to 60°C. This robust feature makes it suitable for various climates and ensures reliable operation regardless of the weather.

17. Multiple Video Signal Output

18. Supporting TVI, AHD, CVI, and CVBS video signal outputs, this camera offers flexibility in integrating with various DVR systems. This multi-signal compatibility streamlines the installation process and upgrades with different CCTV systems.

19. 6mm Fixed Lens

    • The camera comes with a 6mm fixed lens that provides a detailed view of significant surveillance areas. This focal length is effective for capturing clear and focused images over its specified distance.

20. IP66 Rating

    • The device's IP66 ingress protection rating certifies it as dust-tight and protected against powerful jets of water, making it well-suited for rugged outdoor environments.

21. Power Supply

    • For consistent power, the camera uses a 12 VDC power supply, which is common in most surveillance setups and ensures steady operation.

Detailed Specifications

| Specification | Details | |-----------------------------------|-------------------------------------------------------| | Resolution | HD720p | | Sensor | 1MP CMOS Sensor | | IR LED | 1 pcs EXIR LED | | IR Range | 20 meters | | Design | Outdoor EXIR Bullet | | Infrared Cut Filter Removal | Yes (ICR) | | Lux Rating | 0.1 Lux/F1.2 | | Power Supply | 12 VDC | | Smart IR | Yes | | Ingress Protection | IP66 | | Operating Temperature Range | -40°C to 60°C | | Lens | 6mm Fixed | | Video Signal Output | TVI, AHD, CVI, CVBS |

Usage Scenarios

Residential Properties

For home security, this camera provides peace of mind by consistently monitoring the perimeters of a property. The high-definition video quality ensures clear recognition of people and other details, while the night vision capabilities offer protection against night-time intruders.

Commercial Spaces

Businesses
