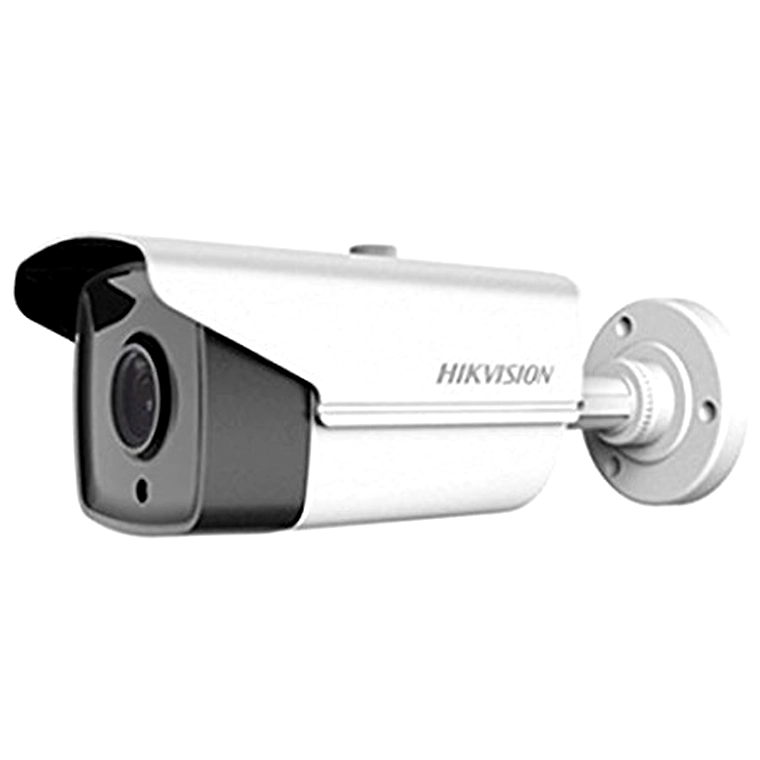

Hikvision DS-2CE1AD0T-IT3F 2 Mp Bullet Camera

Advance Information*

Detailed Product Description

Overview

The Hikvision DS-2CE1AD0T-IT3F 2 Mp Bullet Camera is a high-definition surveillance solution designed for exceptional performance and reliability, especially in outdoor environments. As part of Hikvision's comprehensive range of security equipment, this bullet camera combines advanced imaging technology with robust construction to ensure it meets the demands of modern security applications.

Key Features

• Image Sensor: The camera is equipped with a 1/2.7" Progressive Scan CMOS sensor, delivering exceptional image clarity with a resolution of 1920 x 1080 pixels.
• High Definition: The camera supports Full HD 1080p video, ensuring detailed and sharp video footage suitable for various security needs.
• EXIR Technology: Featuring 2 pcs EXIR LEDs, the camera provides enhanced infrared (IR) coverage for superior nighttime vision. The effective IR range extends up to 40 meters, providing clear visibility in complete darkness.
• Outdoor Durability: This camera is designed for outdoor use with an IP66 rating, ensuring robust protection against dust and heavy rain. Its rugged casing helps protect the internal components from harsh weather conditions.
• Lens Options: The camera offers flexibility with 8mm or 12mm lens options, allowing users to choose the best setup for their specific security requirements. These lens options ensure optimal field of view and focus.
• Day/Night Function: The camera features an IR cut filter with auto switch (ICR), which enhances image quality for 24/7 surveillance by transitioning seamlessly between day and night modes.
• Low Light Performance: With a minimum illumination requirement of 0.01 Lux at F1.2, the DS-2CE1AD0T-IT3F performs exceptionally well in low-light conditions, ensuring clear video capture even in dim environments.
• Smart IR: This intelligent feature adjusts the intensity of the IR LEDs to prevent overexposure in close-up night imaging, thereby ensuring clearer and more balanced footage.
• Noise Reduction: The camera is equipped with Digital Noise Reduction (DNR) to produce cleaner and clearer images in low-light environments by minimizing the visible noise in the video feed.
• Flexible Video Output: Supports multiple video signal outputs - TVI, AHD, CVI, and CVBS, making the camera compatible with a wide range of existing surveillance systems and ensuring flexibility in installation and deployment.
• Power Supply: Powered by a 12 VDC power source, the camera is energy efficient while maintaining reliable operation.

Specifications

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 1920 x 1080 (2 Megapixels)
• LEDs: 2 pcs EXIR LEDs
• IR Distance: Up to 40 meters
• Field of View: Options for 8mm or 12mm fixed lens
• Minimum Illumination: 0.01 Lux at F1.2, 0 Lux with IR
• Day/Night Mode: IR cut filter with auto switch (ICR)
• Video Frame Rate: 1080p@25fps/1080p@30fps
• Digital Noise Reduction (DNR): Yes
• Video Output: Switchable TVI/AHD/CVI/CVBS
• Ingress Protection: IP66
• Power Supply: 12 VDC ± 15%
• Power Consumption: 4W max
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Dimensions: Φ 86.7 × 81.6 mm (Φ 3.42” × 3.21”)
• Weight: 410 g (0.90 lb)

Design and Build

The Hikvision DS-2CE1AD0T-IT3F 2 Mp Bullet Camera features a sleek and durable design, optimized for outdoor use. Its compact build allows for unobtrusive installation, while its robust housing ensures longevity and protection against environmental factors. The clean, modern aesthetics of the camera make it well-suited for corporate, residential, and public safety applications.

Installation and Mounting

This camera is designed with ease of installation in mind. It comes with an adjustable bracket that allows for precise positioning and fixation on walls or ceilings. The ability to adjust the angle of the camera ensures that users can place it in the most strategic positions to maximize surveillance coverage.

Intelligent Features

The camera includes several intelligent features that enhance its functionality and usability:

• Smart IR: Automatically adjusts the intensity of infrared light based on the proximity of objects in the frame, preventing overexposure and ensuring consistently clear nighttime
