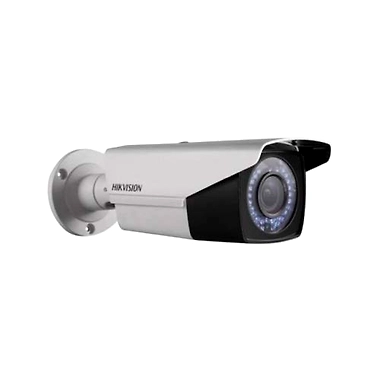

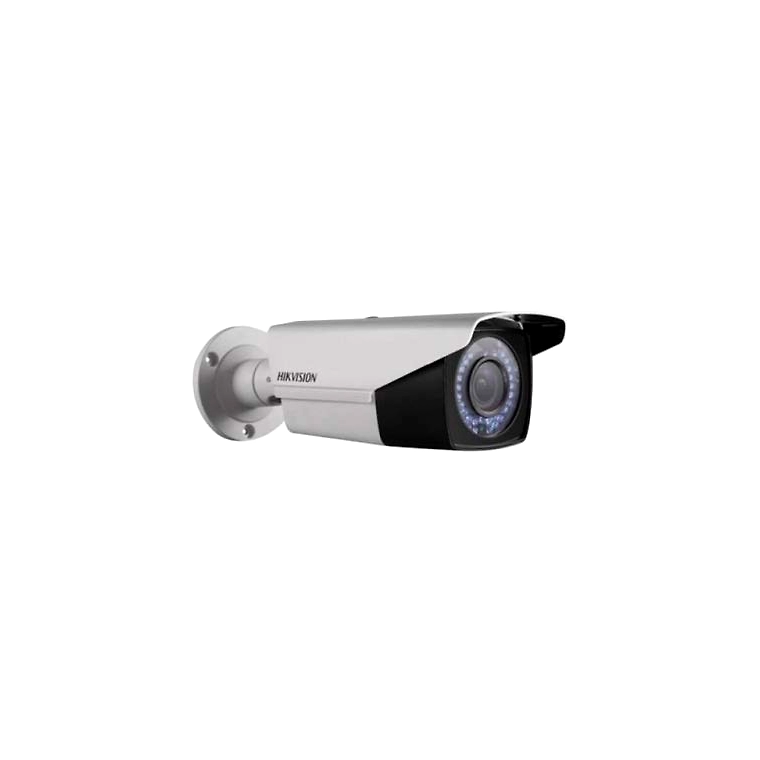

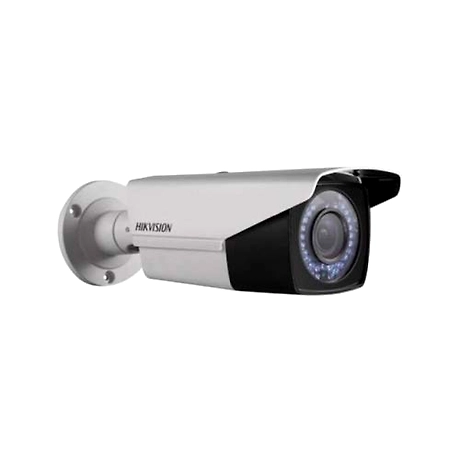

Hikvision DS-2CE1AD0T-VFIR3F 2 MP HD 1080p IR Bullet Camera

Advance Information*

Overview

The Hikvision DS-2CE1AD0T-VFIR3F 2 MP HD 1080p IR Bullet Camera offers a powerful yet versatile surveillance solution, designed for both residential and commercial use. Featuring high-definition 1080p resolution, advanced IR capabilities, and a durable weatherproof build, this camera ensures optimal performance under various conditions. With smart video output technology, it is compatible with multiple formats, increasing its adaptability in a variety of surveillance scenarios.

Key Features

High-Definition Imaging

• Resolution: The camera captures images at full HD 1080p, providing crisp and clear video that enables accurate details even in complex scenes.
• Sensor: Equipped with a high-quality 1/2.7" CMOS sensor, it delivers exceptional image quality, regardless of the lighting conditions.

Advanced Infrared Technology

• Infrared LEDs: The DS-2CE1AD0T-VFIR3F features 42 infrared LEDs, which provide robust night vision capabilities.
• Smart IR: This technology adjusts the intensity of the IR LEDs, preventing overexposure in close-up night scenes and ensuring even illumination up to 40 meters.

Lens and Imaging

• Vari-Focal Lens: The camera is equipped with a 2.8-12mm vari-focal lens, allowing flexible focus adjustment to zoom in on specific areas or widen the field of view.
• Day/Night Functionality: The built-in infrared cut filter (ICR) switches between day and night modes, facilitating accurate color representation during daylight and enhancing low-light sensitivity at night.
• Low Lux Performance: With a minimum illumination of 0.01 Lux/F1.2, the camera remains effective even in very low light scenarios.

Robust Build

• Weatherproof: With an IP66 rating, the camera is safeguarded against dust and heavy rainfall, making it suitable for outdoor environments.
• Durable Housing: The rugged exterior ensures longevity and robust performance in harsh conditions.

Versatile Video Output

• Multi-Format Support: The camera supports TVI/AHD/CVI/CVBS video signal outputs which make it adaptable to various DVR systems, providing flexibility for future upgrades or integration into existing setups.

Detailed Specifications

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Effective Pixels: 1920 × 1080
• Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed: 1/25(1/30) s to 1/50,000 s
• Lens: 2.8-12mm Motorized Vari-focal lens
• Angle of View: Horizontal: 104°~32°
• Lens Mount: φ14

Day & Night

• Day/Night Mode: ICR
• Day/Night Switch: Auto / Color / B/W

Image Settings

• Backlight Compensation: BLC / HLC / DWDR (Digital Wide Dynamic Range)
• White Balance: ATW (Auto-tracking White Balance)/ Manual
• Gain Control: AGC (Automatic Gain Control)
• Noise Reduction: 2D DNR (Digital Noise Reduction)

Infrared

• IR Range: Up to 40m
• IR LEDs: 42 pcs
• Smart IR: Yes

Video

• Synchronization: Internal Synchronization
• Video Frame Rate:
• TVI: 1080p @ 25fps/30fps
• AHD: 1080p @ 25fps/30fps
• CVI: 1080p @ 25fps/30fps
• CVBS: PAL/NTSC

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Switch Button: Yes

General

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 7W
• Ingress Protection: IP66
• Material: Metal

Applications

The DS-2CE1AD0T-VFIR3F camera is suitable for various applications, including:

Commercial Surveillance

• Keep an eye on stores and commercial complexes with high-definition clarity to minimize shrinkage and ensure safety around the premises.
• Ideal for parking lots, providing high-quality images even in poorly-lit conditions.

Residential Security

- Enhance your home security by installing this camera outdoors to monitor entrances, driveways, and backyards.
