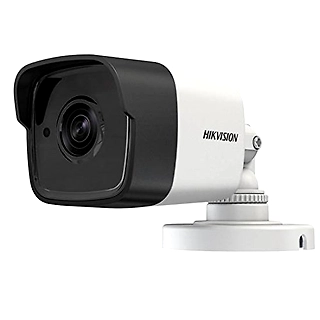

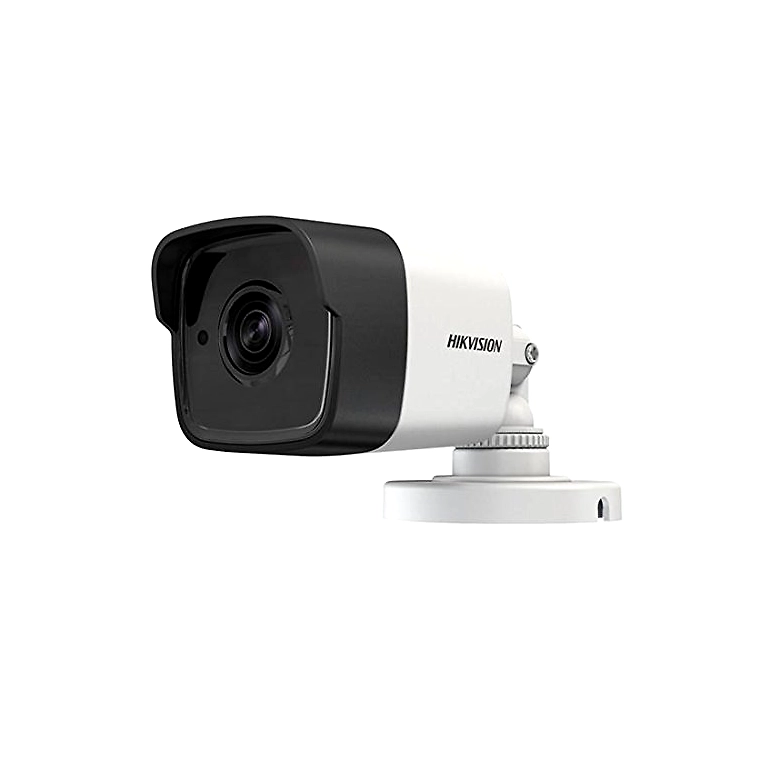

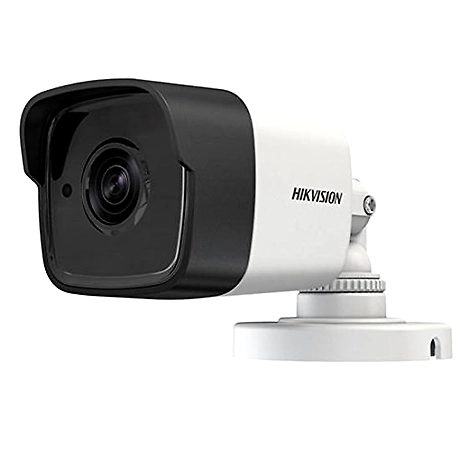

Hikvision DS-2CE1AH0T-IT1F 5 MP Day & Night Bullet Camera

The Hikvision DS-2CE1AH0T-IT1F is a state-of-the-art bullet camera designed for high-definition surveillance. This camera integrates advanced technology, delivering stunning detail and clarity to ensure a comprehensive security solution for both residential and commercial environments. Below, you will find an in-depth look at its features, capabilities, and technical specifications.

Overview

The Hikvision DS-2CE1AH0T-IT1F is a versatile and powerful security camera featuring 5-megapixel resolution at 20 frames per second (fps), and 4-megapixel resolution at 25fps in PAL mode or 30fps in NTSC mode by default. This flexibility makes it suitable for various surveillance needs, from monitoring a home to safeguarding a business.

Key Features

High Performance Imaging

• 5MP Resolution: Provides exceptionally clear images with high resolution (2560x1944 pixels).
• 4MP Option: The camera also supports 4MP resolution, ensuring detailed video at slightly lower storage costs.
• Frame Rate: Capable of recording video at a fluid 20fps for 5MP and 25/30fps for 4MP, adapting to different surveillance scenarios.

Advanced Night Vision

• EXIR Technology: Enhanced IR illuminators ensure even distribution of infrared light for up to 20 meters (approx. 65 feet), providing clear images in complete darkness.
• Smart IR: Prevents overexposure in close-up shots, ensuring the subject is not washed out by the IR light.
• Day & Night Functionality: Featuring an IR cut filter with auto switch functions, guaranteeing high-quality images in both bright and low-light conditions.

Lens Options

• Multiple Focal Lengths: Available in 2.8mm, 3.6mm, and 6mm lens configurations to cater to different focal length requirements:
• 2.8mm: Wider field of view, ideal for covering broad areas.
• 3.6mm: Balanced view, suited for general-purpose surveillance.
• 6mm: Narrower field of view for focusing on specific targets or distant objects.

Image Enhancement Technologies

• 0.01 Lux Sensitivity: Capable of delivering usable images in extremely low-light conditions.
• Digital Noise Reduction (DNR): Reduces noise to ensure clear images with better details, especially in low-light environments.
• OSD Menu (Up the Coax): Allows users to control camera settings through the DVR interface, simplifying configuration.

Design and Durability

Robust Design

• Outdoor Durability: Designed to withstand harsh weather conditions, making it suitable for outdoor installations.
• IP67 Rating: Highly resistant to dust and water ingress, ensuring reliable performance in various environmental conditions.
• Rugged Construction: Built with durable materials to provide long-lasting surveillance solutions.

Convenient Installation

• Bullet Form Factor: The camera’s bullet design is compact and discreet, blending seamlessly with various architectural designs.
• Flexible Mounting Options: Compatible with an array of mounting accessories, simplifying the installation process in various settings.

Connectivity and Compatibility

Multi-Format Output

• Video Signal Output: Supports multiple video signal outputs including TVI, AHD, CVI, and CVBS, ensuring compatibility with a wide range of DVRs and other recording devices.
• 12 VDC Power: Standard voltage requirement that simplifies power management for security systems.

Technical Specifications

General Information

• Model: DS-2CE1AH0T-IT1F
• Type: EXIR Bullet Camera
• Day & Night: IR cut filter with auto switch

Camera

• Sensor: 5MP CMOS Image Sensor
• Resolution: 2560x1944 (5MP), 2560x1440 (4MP)
• Framerate: 5MP@20fps, 4MP@25fps(P)/30fps(N)
• Minimum Illumination: 0.01 Lux @ F1.2

Lens

• Lens Options: 2.8mm, 3.6mm, 6mm
• Field of View:
• 2.8mm: 97° (Horizontal)
• 3.6mm: 77° (Horizontal)
• 6mm: 47° (Horizontal)

IR

• IR Range: Up to 20 meters (approx. 65 feet)
• IR Type: EXIR

Video Output

• **Signal Outputs
