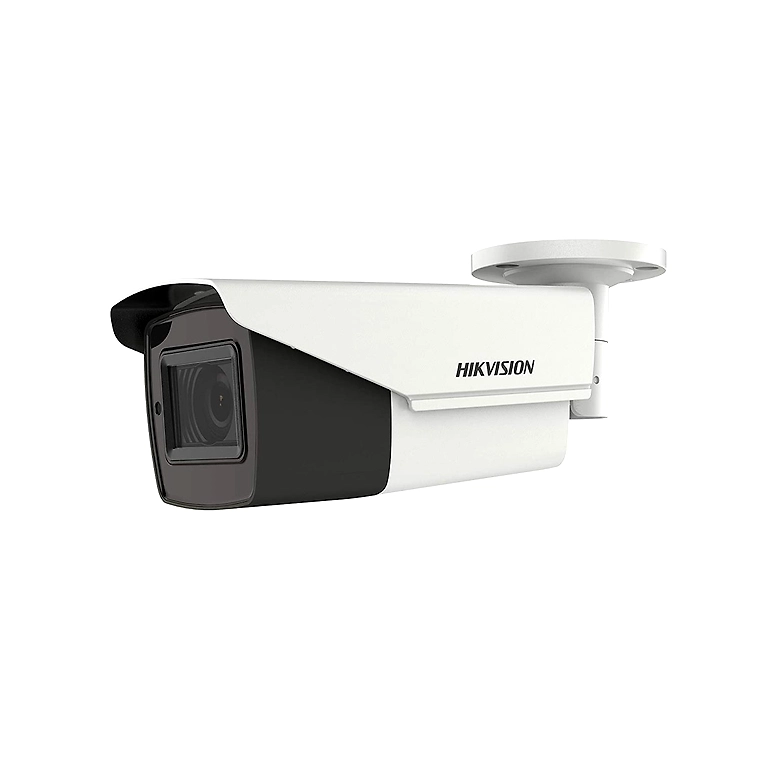

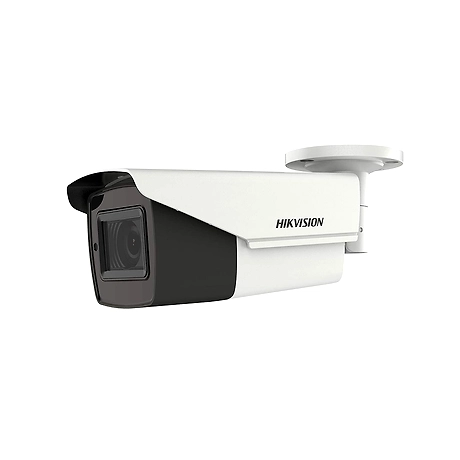

Hikvision DS-2CE1AH0T-IT3ZF 5 MP Motorized Varifocal Bullet Camera

Brand: Hikvision

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry
5MP@20fps, 4MP@25fps(P)/30fps(N)(Default), EXIR, 40m IR, Outdoor EXIR, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, DNR, OSD Menu(Up the Coax), IP67, 2.7~13.5mm Motorized Vari-focal Lens,Support TVI/AHD/CVI/CVBS video signal output
Feature*
  • Lens: 2.7~13.5mm Motorized Vari-focal Lens
  • IR Range: Up to 40m
  • Resolution: 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default)
  • Power Supply: 12 VDC
  • Signal Output: Supports TVI/AHD/CVI/CVBS video signal output
  • Weatherproof Rating: IP67

  • Additional information

    Advance Information*

    Introduction

    Esteemed for its high precision and impeccable performance, the Hikvision DS-2CE1AH0T-IT3ZF 5 MP Motorized Varifocal Bullet Camera epitomizes cutting-edge surveillance technology. Specifically designed to cater to diverse security requirements, this bullet camera provides a comprehensive solution for both residential and commercial security applications. Featuring a slew of advanced functionalities, this camera excels in delivering crystal-clear visuals, robust coverage, and adaptable usage scenarios, making it a versatile and reliable asset for any surveillance ecosystem.

    Key Features

    1. High-Resolution Imaging:

    The camera boasts a 5 Megapixel (5MP) image sensor that captures full-motion video at 20 frames per second (fps). Additionally, it supports 4MP resolution at 25fps for PAL systems and 30fps for NTSC systems, which is the default setting. This high resolution ensures that every minute detail is captured, providing superior image quality and crucial, actionable data.

    2. Motorized Varifocal Lens:

    Equipped with a 2.7~13.5mm motorized varifocal lens, this camera offers robust flexibility in focusing mechanisms. The lens can be remotely adjusted, making it easier to fine-tune the field of view (FoV) and focal length without physical interaction with the camera.

    3. EXIR Technology:

    Enhanced with EXIR (Extended Infrared) technology, the camera delivers optimal night vision capabilities by utilizing advanced infrared LEDs. It provides a remarkable 40 meters of IR distance, enabling superior nighttime performance. The EXIR LEDs are specially arranged to ensure efficient and uniform illumination, significantly reducing the “halo” effect and enhancing face detection reliability.

    4. Smart Infrared (Smart IR):

    The camera employs Smart IR technology to prevent overexposure in close-up shots. This feature dynamically adjusts the intensity of the IR LEDs to maintain balanced lighting, thereby ensuring clear and crisp night-time footage.

    5. Day/Night Functionality (ICR):

    The camera is equipped with an IR Cut Filter Removal (ICR) function, which automatically switches between day and night modes. During the day, the filter blocks IR light to avoid color distortion. At night, the filter is removed to enhance light sensitivity, ensuring optimal image quality around-the-clock.

    6. Digital Noise Reduction (DNR):

    Digital Noise Reduction (DNR) technology minimizes noise in low-light conditions, providing clear and accurate images. This feature is particularly valuable in environments with challenging lighting conditions, enhancing the camera’s overall performance.

    7. Dual IR (Infrared) Cut Filters:

    The DS-2CE1AH0T-IT3ZF comes with dual IR cut filters that further improve the fidelity and clarity of the video feed under varying lighting conditions, ensuring accurate color reproduction during the day and enhanced infrared sensitivity at night.

    Technical Specifications

    Imaging

    • Image Sensor: 5 Megapixel
    • Resolution: 5MP @ 20fps, 4MP @ 25/30fps (default)
    • Minimum Illumination: 0.01 Lux @ F1.2

    Lens

    • Lens Type: Motorized Varifocal
    • Focal Length: 2.7 - 13.5mm
    • Aperture: F1.2
    • Field of View: Adjustable

    Night Vision

    • IR Distance: Up to 40 meters
    • IR Technology: EXIR (Extended Infrared)
    • IR Feature: Smart IR for balanced lighting

    Video Output

    • Video Signal Output: TVI/AHD/CVI/CVBS

    Operational

    • Day/Night Switching: Automatic with ICR
    • Noise Reduction: Digital Noise Reduction (DNR)
    • Control Method: OSD Menu (Up the Coax)

    Mechanical and Environmental

    • Ingress Protection: IP67 (Water and dust resistant)
    • Power Supply: 12 VDC

    Design and Build

    Robust Housing:

    The camera is built with exceptional engineering, designed for maximum durability and resilience. The IP67 ingress protection rating ensures unmatched resistance to dust and water, making it highly suitable for outdoor installations without compromising on performance.

    Compact and Versatile:

    Its bullet form factor is not only aesthetically appealing but also serves practical purposes. The compact design allows for discreet surveillance while the flexibility of installation aids in covering diverse areas effectively.

    Installation and Configuration

    User-Friendly Installation:

    The camera’s motorized lens simplifies the installation process by eliminating the need for manual adjustments. This feature, combined with easy cable management and mounting options, makes installation straightforward and time-efficient.

    Versatile Mounting Options:

    Whether wall-mounted or ceiling-mounted, the versatile design facilitates various applications and setups. Depending on the field of view requirement, adjusting the motorized lens ensures optimal


    Hikvision 5MP cameraOutdoor EXIR CameraMotorized Vari-focal LensNight Vision SurveillanceSmart IRWeatherproofIP67TVI/AHD/CVI/CVBS
    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
