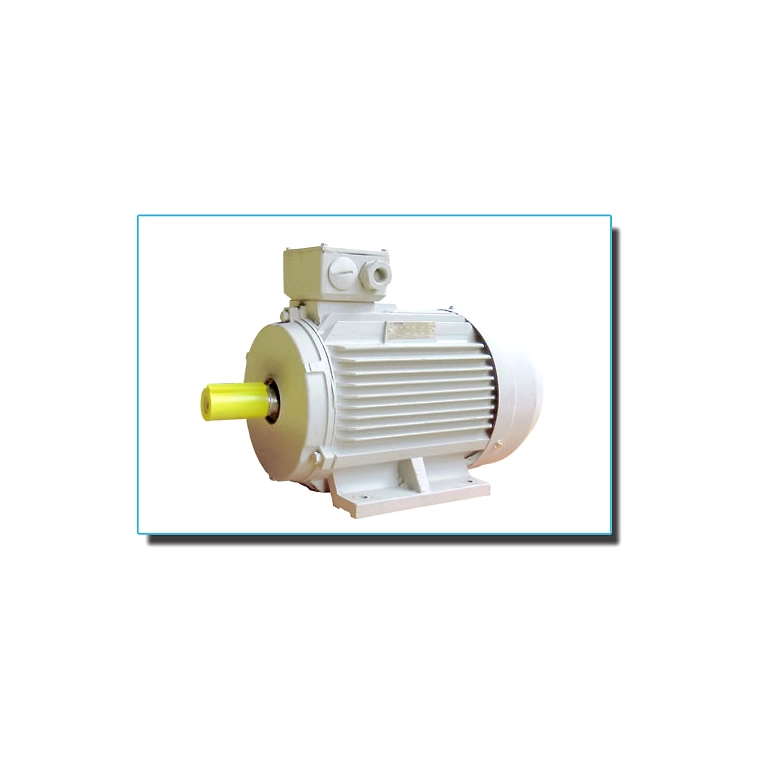

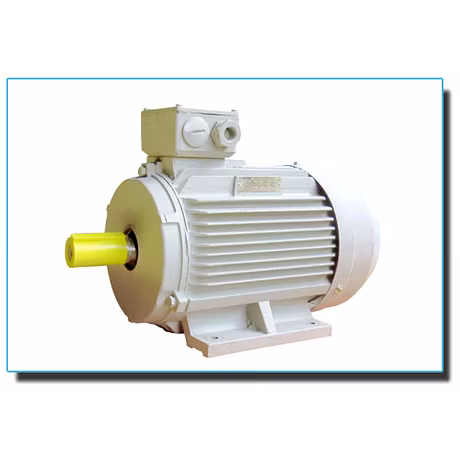

Experience unmatched efficiency and durability with the IE2 Motor from OXFORD Motors, specifically engineered for heavy-duty applications. With its robust IP55 rated construction, this totally enclosed, fan-cooled motor guarantees optimal performance in the most challenging environments. The cast iron framework ensures reduced vibration and enhances longevity, making it a top choice for a variety of industrial uses. This motor line features multiple pole configurations — 2, 4, 6, and 8 pole options with power ranging from 0.18 to 315 KW, suitable for commercial and industrial settings alike. Maintaining compliance with IE2 efficiency standards, the OXFORD IP55 Metric Motor minimizes energy consumption and reduces overall operational costs. It’s built to operate seamlessly within a broad range of voltages [415V +/- 10%], frequencies [50Hz +/- 5%], and supports an ambient temperature variation between -15 to 50 degrees Celsius. The motor is designed for easy maintenance with its durable terminal box and high-performance bearings, assuring you a long, trouble-free service life. Ideal for businesses that prioritize efficiency and reliability, we hold an extensive inventory including all standard ratings, with custom orders available on a flexible delivery schedule. OPTIMIZE YOUR OPERATIONS WITH OXFORD MOTORS!
Key Features
| Features | Description |
|---|---|
| Construction Material | Cast Iron, Totally Enclosed Fan Cooled (IP55) |
| Power Ratings | 2 pole 0.18-315 kW, 4 pole 0.12-315 kW, 6 pole 0.18-250 kW, 8 pole 0.18-200 kW |
| Efficiency Rating | Conforms to IE2 Level |
| Power Supply | 415V +/-10%, 50Hz +/-5% |
| Ambient Temperature Range | -15 to +50 degrees Celsius |
| Service Factor | 1.00 at 50Hz, Duty Class S1 |
| Bearing Life | 100,000 hours direct coupled / 25,000 hours belted |
| Warranty | One Year Warranty against defects |
| Attributes | Description |
|---|---|
| Cooling Method | IC 411 bi-directional cooling fan |
| Insulation Class | Class F insulation system (meets Class B max temp rise) |
| Rotor Material | High conductivity aluminum die-cast on carbon-steel shaft |
| Terminal Box | Cast iron construction, located on top |
| Connection Type | Star-connection for up to 3kW, Delta-connection for 4kW and above |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India
Discover superior industrial efficiency with the nan Ie2 Motor motors�engineered for precision, durability, and energy-saving performance. Perfect for high-demand applications, this motor combines powerful output with reliable operation to keep your production running at peak capacity.
OXFORD Motors is proud to introduce the IP55 Metric Motor line of rugged, all-purpose motors. The cast iron,totally enclosed fan cooled IP55 construction makes this motor the preferred choice for almost any application in even the toughest environments.
2 pole 0.18-315Kw
4 pole 0.12-315Kw
6 pole 0.18-250Kw
8 pole 0.18-200Kw
Confirm to IE2 Level & are marked.
For greater application flexibility and increase safety margin our motors are suitable for 415V +/-10%, 50Hz+/5%, combined variation allowed +/10%
-15 to 50 degree C is standard.
These motors have a 1.00 S.F. at 50Hz, typical for IEC motors, Duty class S1.
The rugged cast iron construction of the frame, endshields, integral feet and flanges absorbs shock and reduce motor vibration to provide a low-maintenance motor life.
The terminal box is of cast iron construction and is available on Top.
The stator core is built up from low loss, high permeability, silicon steel for increased efficiency. It features a class F insulation system with design for class B maximum temprature rise.
The rotor is built with the same high quality lamination steel, die cast with high conductivity aluminum, shrunk fit on to a high strength carbon-steel shaft. The rotor assembly is dynamically balanced to provide low noise and smooth, vibration-free operation for long trouble free life.
All motors use 100,000 hours direct coupled/25,000 hours belted, anti-friction, deep-grooved ball Bearings 160 frame & above of 63 series, on drive, tight fit in.
IC 411 bi directional cooling fan.
Star-connection for up to 3Kw, delta-connection for 4Kw and above.
Oxford motors are warranted to be free from defects in material, workmanship for a period of one year.
