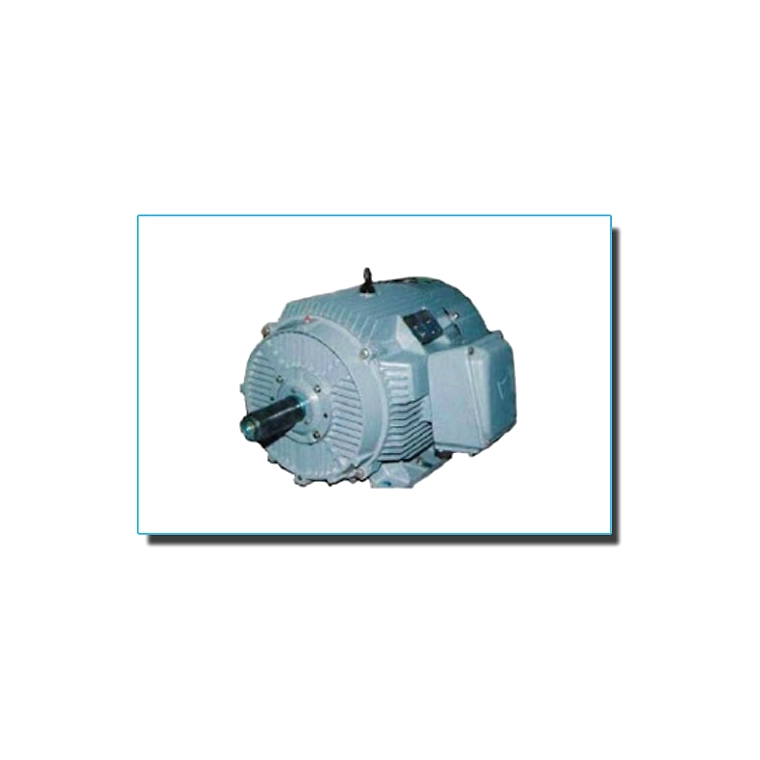

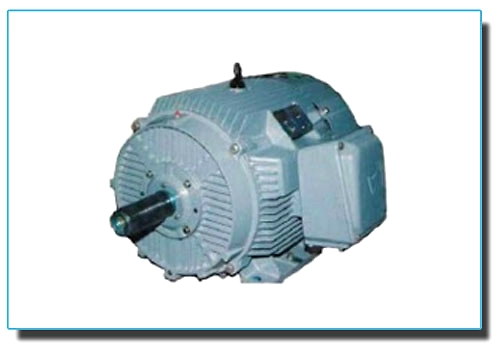

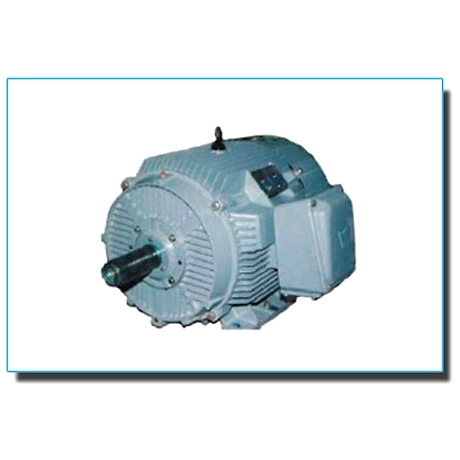

The Increased Safety Series motors are specially designed for operation in hazardous environments, featuring advanced safety measures to mitigate ignition risks and ensure dependable performance even in potentially explosive atmospheres. These motors are ideal for demanding industries such as oil & gas, chemicals, and mining. With a comprehensive range of regular rating motors in-stock, we offer non-stock models with quick, flexible delivery options to meet the customer’s unique needs. Our commitment to competitive pricing and favorable commercial terms make us a trusted partner for many corporate clients and multinational corporations. These robust motors also come equipped with versatile features tailored for efficiency and reliability, including various starting methods, insulation types, and protection ratings, ensuring they meet the rigorous standards of industrial applications.
Key Features
| Features | Description |
|---|---|
| Design Enhancements | Engineered to prevent ignition in hazardous settings |
| Industry Applications | Ideal for oil & gas, chemicals and mining industries |
| Starting Method | Direct Online (DOL) or Star Delta options for higher frames |
| Protection Rating | IP 55 ensuring suitability for dust and water exposure |
| Insulation Class | Class F with a maximum temperature rise of 70°C |
| Bi-Directional Rotation | Supports flexibility in application |
| Life Expectancy | 40,000 working hours for direct drive, 20,000 for belt drive |
| Delivery Options | Competitive pricing and flexible delivery options for non-stock motors |
| Vendor Credentials | Authorized supplier to numerous major corporates and MNCs |
| Materials Used | Cast iron and aluminum constructions for durability |
| Attributes | Description |
|---|---|
| Starting Type | DOL up to 100, Star Delta for 112 and above |
| Permissible Starts/Hour | Cold successive - 4, Hot successive - 3, Equally spread - 6 |
| Voltage Rating | Functioning at 75% rated voltage for 5 minutes |
| Degree of Protection | IP 55 |
| Cooling Method | IC 411 |
| Frame Sizes | ePM80 to 160, eSC180 to 355 |
| Body Material | Cast iron |
| T-box Material | Cast iron |
| Bearing Type | Pre-lubricated sealed from 80-160; Open type from 180; Online greasing from 180-355 |
| Noise Levels | Per IS: 12065 |
| Vibration Levels | Normal class as per IS: 12075 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: Kirloskar
Country Of Origin: India
| FEATURES | VALUES/ STANDARDS |
|---|---|
| Starting | DOL up to 100 & Star Delta for 112 above frames |
| Permissible starts/hr. | Cold successive - 4 hot successive - 3 equally spread - 6 |
| Loading at reduced volts | 75% Rated volts for 5 minutes. |
| Insulation / temp.rise | Class `F' / 70C |
| Direction of rotation | Bi-directional |
| No. Of leads | 3 up to 100 & 6 for frame 112 & above |
| Connection. | Star Up to 90 frame, 6 & 8 pole ratings of 100 frames |
| Delta 2 & 4 pole ratings of 100 frame & 112 and above all ratings | |
| Degree of protection | IP 55 |
| Method of cooling | IC 411 |
| T.box position | RHS looking from DE (towards DE up to 160) |
| Bearing life (90% survival basis) |
40,000 working hrs. For direct drive 20,000 working hrs. For belt drive |
| Vibration | Normal class as per IS: 12075 |
| Noise | As per IS: 12065 |
| Construction | Foot / 'B' flange |
| Frame sizes | 'ePM80 to 160', 'eSC180 to 355'.(For 'B' flange mounting ratings covered in 'eSC180M' to be offered in 'eVSC180L' & ratings covered in 'eSC225S' to be offered in 'eVSC225M') |
| Shaft extension. | Single cylindrical extension as per IS: 1231 |
| Body material | Cast iron |
| T.box material | Cast iron |
| Fan material | Aluminium up to 160, cast iron for 180 225, mild steel for 250 to 355 Frames |
| Accessories |
Nil |
| Paint & shade | Epoxy base RAL5012 |
| Bearing type Greasing facility |
Pre lubricated sealed Bearing from 80-160. Open type Bearing from 180. Online greasing facility is for 180 to 355 only |
