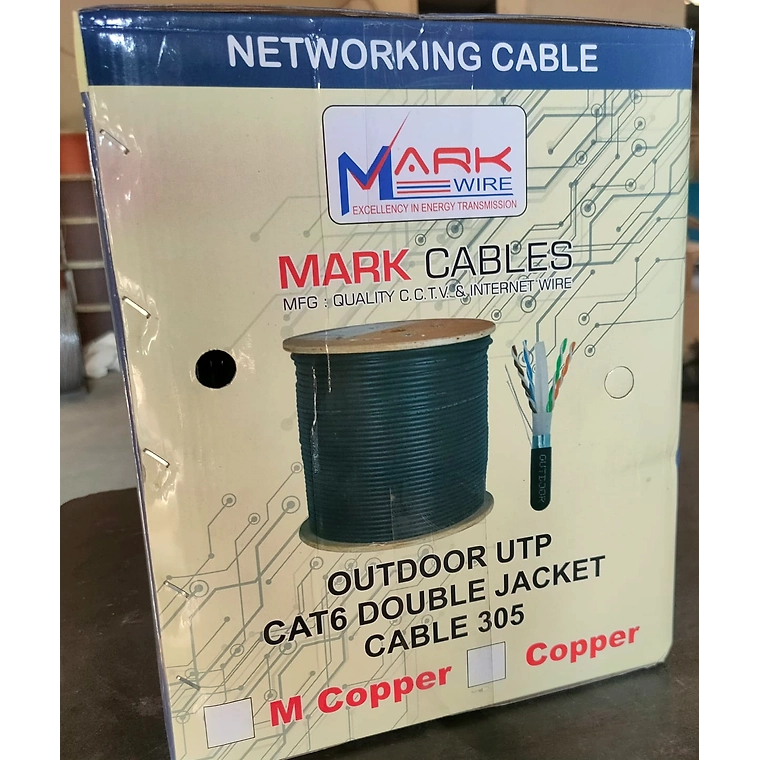

The Indoor/Outdoor Networking CAT-6 Cable is the perfect solution for businesses looking for reliable and high-performance Ethernet connectivity. With its high-grade 0.51mm inner core and 24AWG copper-clad construction, this cable ensures minimal signal loss and maximum data transmission speed. Designed for both indoor and outdoor use, the CAT-6 cable features a durable PVC jacket that provides protection against various environmental factors. With a bandwidth capacity of up to 500MHz and support for Gigabit Ethernet (1GBASE-T), it meets the demands of modern network infrastructures. The cable is composed of 4 unshielded twisted pairs (8 wires) that are individually screened to prevent crosstalk, ensuring highly efficient data communication. Its robust design, including a secondary PE jacket and high insulation diameter, makes it ideal for commercial applications, data centers, and enterprise networks. This CAT-6 cable is a stellar choice for businesses aiming to future-proof their networks with lightning-fast and dependable Ethernet connections.
Key Features
| Features | Description |
|---|---|
| Cable Construction | High Grade 0.51mm inner core, 24AWG, Grey color. |
| Bandwidth Capacity | 500MHz with Gigabit Ready 1GBASE-T. |
| Cable Type | CAT-6 UTP (Unshielded Twisted Pair) Ethernet Cable. |
| Cable Length | Available in various roll lengths. |
| Environmental Use | Designed for both indoor and outdoor applications. |
| Insulation | PVC material with a secondary PE jacket. |
| Twisted Pairs | 4 unshielded twisted pairs (8 wires) technology. |
| Conductor Material | Copper Clad Copper with a soft twist for effective transmission. |
| Attributes | Description |
|---|---|
| Inner Conductor | Single Bare Copper (0.510 mm ±0.005mm) |
| Insulation Diameter | 1.02mm ±0.05mm |
| Core Colors | White-Blue; White-Orange; White-Green; White-Brown |
| Outer Diameter | 5.98mm |
| Wall Thickness | 0.8mm |
| Conductor Resistance (DC) | 9.38Ω ohms /100m at 20˚C maximum. |
| Mutual Capacitance | 5.6 nF/100m maximum. |
| Delay Skew | ≤45 ns/100m. |
| Normal Velocity of Propagation | 69%. |
| Impedance | 100 ± 15% Ω. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India
CABLE CONSTRUCTION :
•High Grade 0.51mm Cable (inner core)
• 24AWG (American Wire Gauge)
• Colour: Gray
• Cat6 UTP, UTP 500MHz Ethernet Cable
• Gigabit Ready 1GBASE-T
• CC: Copper Clad Copper , with plastic separator
• Inner layer for extra protection
• 4 unshielded twisted pairs (8 wires per cable)
• 8 insulated wires formed into 4 pairs. Each pair is individually screened with
• Outer diameter: 5.98mm

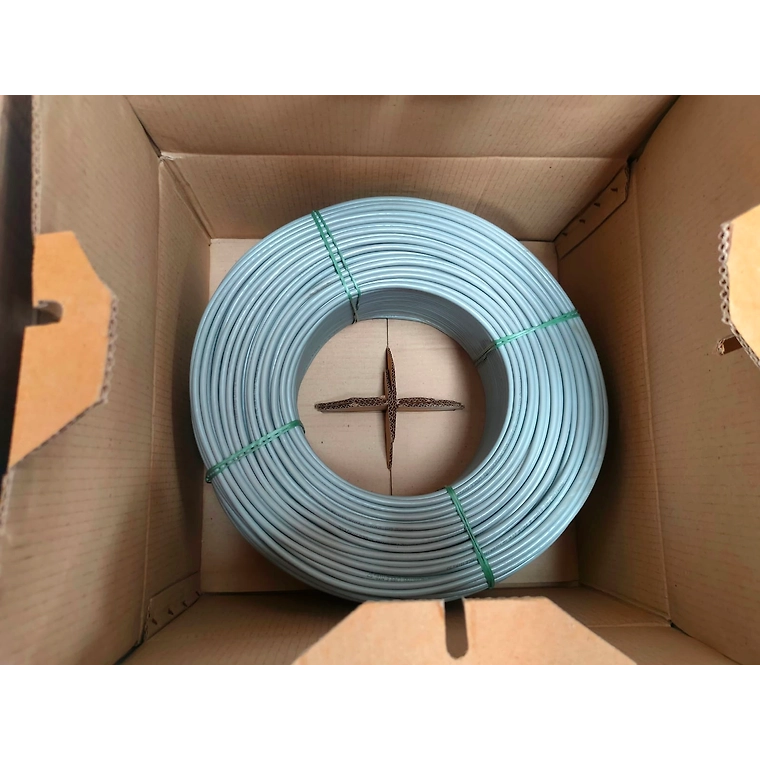

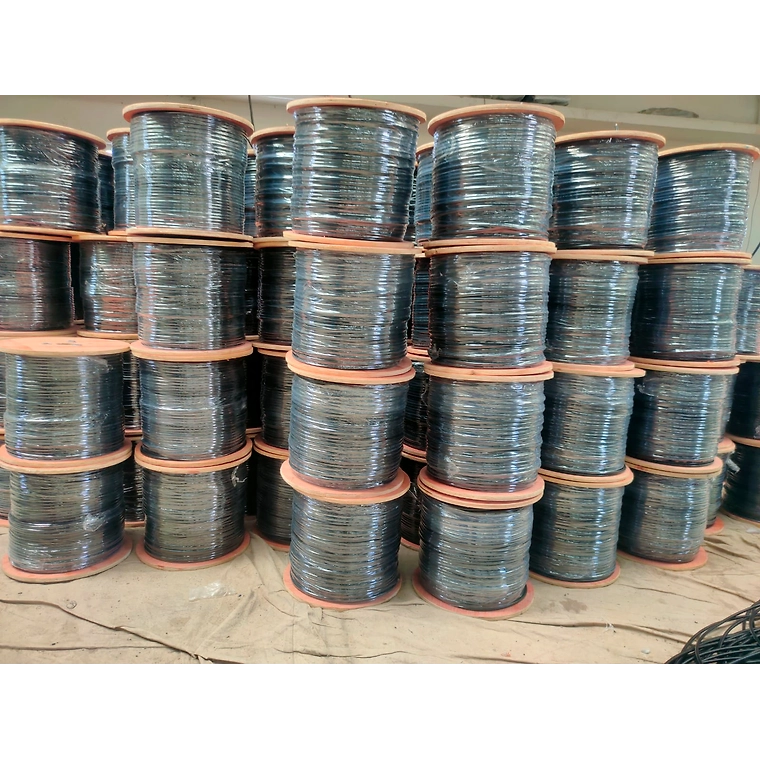

• Cable Roll, Solid CableCABLE
Electrical Parameters
• Inner conductor : Single Bare Copper (0.510 mm ±0.005mm)
• Insulation Dia : 1.02mm ±0.05mm
• Core colour : White-Blue; White-Orange; White-Green & White-Brown
• Jacket Material : PVC
• Wall thickness : 0.8mm
• Second Jacket : PE
• Colour : Grey• Size : 6.0mm ±0.2mm
ELECTRICAL PARAMETERS
• Conductor Resistance Existence (DC): 9.38Ω ohms /100mtr@20˚C. MAX.
• Resistance Unbalance : 5 %MAX
• Mutual Cwapwawcit.aznecye e: 5te.6c nhF./c10o0m mtrs MAX.
• Capacitance Unbalance Pair/round 330pF/100M MAX
• Delay Skew ≤45 nS/100M
• Normal Velocity of Propagation : 69%
• Impenance : 100 ± 15% Ώ
