The Dynemech Industrial-Grade Spring Vibration Isolation System Series MAI is an advanced vibrational control solution designed for a diverse range of applications. With over a decade of experience in providing anti-vibration solutions for the Indian industry, Dynemech has established itself as a leader by offering a comprehensive range of products, including stud mounts, wedge mounts, and air springs. Specifically engineered for heavy machinery, this spring isolator is essential for ensuring the optimal performance of equipment subject to operational vibrations. Its design allows for an adjustable natural frequency which effectively helps manage phase differences between rotating machines. The inclusion of viscous damping is crucial in curtailing excessive movements that can occur when machines operate close to resonant frequencies, particularly during slow run-ups, slow run-downs, and impact strikes in heavy presses and hammers. The MAI-E2 model is capable of supporting loads up to 32 kg and provides a natural frequency range of 3.5 to 11 Hz. Its robust specifications make it an indispensable tool for any industrial setting aiming to enhance equipment longevity and operational efficiency.
Key Features
| Features | Description |
|---|---|
| Model | MAI-E2 |
| Maximum Load Capacity | 32 Kg |
| Free Height (HI) | 101 mm |
| Height of Isolator (HO) | 76 mm |
| Bolt Size | M12x1.75x100 |
| Top Plate Dimensions (AXB) | 125 x 125 mm |
| Bottom Plate Dimensions (CXD) | 125 x 125 mm |
| Center to Center Distance | 95 mm |
| Natural Frequency Range | 3.5-11 Hz |
| Viscous Damping | Yes |
| Attributes | Description |
|---|---|
| Main Material | High-Quality Steel |
| Application | Industrial Machinery |
| Vibration Control Type | Spring Isolator |
| Maintenance Requirement | Low |
| Temperature Tolerance | Standard Industrial Range |
| Weight | Small and Compact |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India

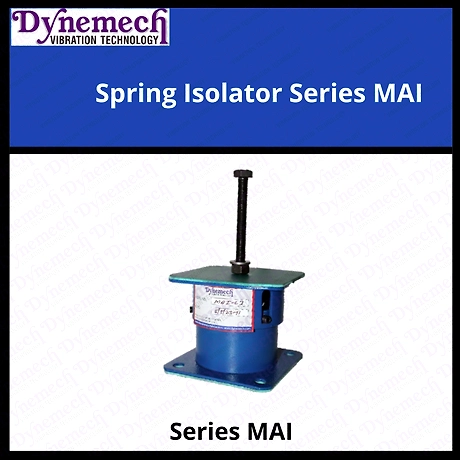

Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system.
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:MAI-E2 Load(Kg):32 HO:76 Free Height HI (mm):101 Bolt Size: M12x1.75x100 Top Plate AXB(mm):125X125 Bottom Plate CXD(mm):125X125 CC(mm):95 Natural Frequency Range(Hz):3.5-11
