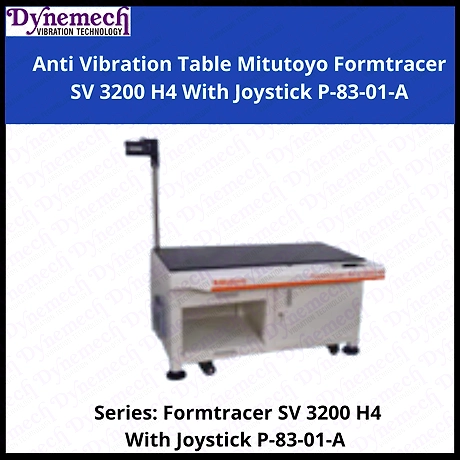

The Laboratory Anti Vibration Table P-83-01-A is a top-tier solution for testing equipment and machines in high-vibration environments such as industrial labs. With a robust granite base measuring 1000mm x 600mm x 50mm, this table features a 60mm tubular structure with cross members designed for maximum stability and vibration isolation. Tailored specifically for analytical balances and control scales, the table's innovative design includes a swiveling bracket that accommodates monitors and a laser-cut joystick pocket for easy control. The wrap-around construction promotes durability and resilience, making it an ideal addition to labs situated near machinery like presses, hammers, and VMCs. Our tables execute vibration dampening through dual layers: under the granite top and integrated leveling feet, providing not just stability but precision during sensitive measurements. Depending on lab needs, damping options can be Elastomeric, Pneumatic, or Spring-Based, ensuring optimal performance in various testing conditions. Experience unparalleled accuracy and reliability in your laboratory processes with Dynemech’s Anti-Vibration Table P-83-01-A.
Key Features
| Features | Description |
|---|---|
| Granite Base Size | 1000mm x 600mm x 50mm |
| Tubular Structure | 60mm with cross member |
| Construction Type | Wrap Around with left angular profile |
| Swiveling Bracket | For monitor support |
| Joystick Pocket | Laser-cut for joystick application |
| Vibration Dampening | At two locations; below granite top and bottom |
| Leveling Feet | Ensures proper leveling and insulation from vibrations |
| Damping Options | Elastomeric, Pneumatic or Spring Based available |
| Precision Accuracy | Grade-1 Accuracy for critical measurements |
| Design Purpose | Ideal for testing and quality laboratories in high vibration environments |
| Attributes | Description |
|---|---|
| Base Material | Granite |
| Base Dimensions | L 1000 mm x B 600 mm x T 50 mm |
| Tubular Structure Diameter | 60 mm |
| Overall Design | Wrap Around Construction |
| Compatibility | Testing/Quality Laboratories and analytical balances |
| Features | Swiveling Bracket, Joystick Pocket, Dual Vibration Dampening |
| Damping Types | Elastomeric, Pneumatic, Spring |
| Laboratory Application | High precision testing under vibration |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Granite base of size L 1000 X B 600 X T 50 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Swiveling bracket for monitor
lasercut joystick pocket for Joystick
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size L 1000 X B 600 X T 50 mm
60 mm Tubular Structure with cross member
Wrap Around Construction with left angular profile
Swiveling bracket for monitor
lasercut joystick pocket for Joystick
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
