The LIFTIT Chain Pulley Block 20 Ton Hoist is designed for heavy-duty lifting applications with a remarkable capacity of 20 tons. This hoist employs innovative technology that minimizes lifting forces by up to 35%, allowing for higher operational speeds and reduced physical strain on users. Constructed from high-quality hardened triple spur gears and Grade 80 alloy steel load chains, this durable hoist guarantees reliability and efficiency. The compact design is ideal for low headroom applications, while the reinforced double pawl brake system ensures maximum safety and control, making the LIFTIT Chain Pulley Block the ultimate solution for businesses needing a dependable hoisting tool.

Key Features

Features Description
Lifting Capacity 20 Tons
Lifting Technology Low Effort and High Speed
Material Quality Hardened Triple Spur Gears and Grade 80 Alloy Steel
Hand Chain Diameter 5 x 22.2 mm
Load Chain Diameter 10 x 30 mm
Brake System Reinforced Double Pawl Brake System
Lifting Height 3 Meters (extendable)
Net Weight 105 kg
Compact Design Suitable for Low Head Room Applications
Attributes Description
Model 20 Ton Hoist
Standing Lifting Height 3 Meters
Running Test Load 30000 Kg
Effort Required to Lift Max Load 414 x 2 N
Net - Gross Weight 105.00 - 116 Kg
Packing Size 70 x 65 x 25 CM
Extra Weight Meter of Extra Lift 19.6 Kg
Dimensions A = 215 MM, B = 650 MM, C = 890 MM, D = 110 MM, K = 85 MM

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • GST Registration Date

    24 July, 2018

  • Nature of Business

    brand owner / distributor / exporter / importer

  • GlobalLinker Member Since

    February 2024

Industry:   Hardware & Tools > Mechanical Hardware

Location(s):   Surat (India)

Brand: LIFT IT

Country Of Origin: India

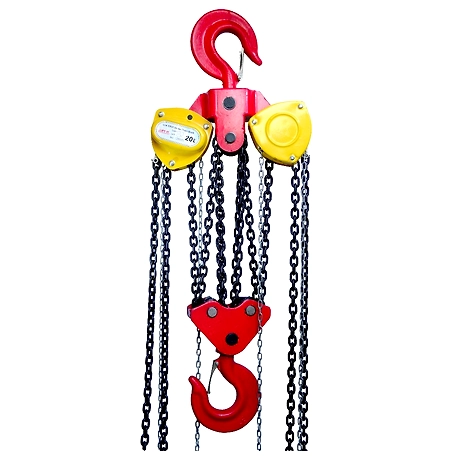

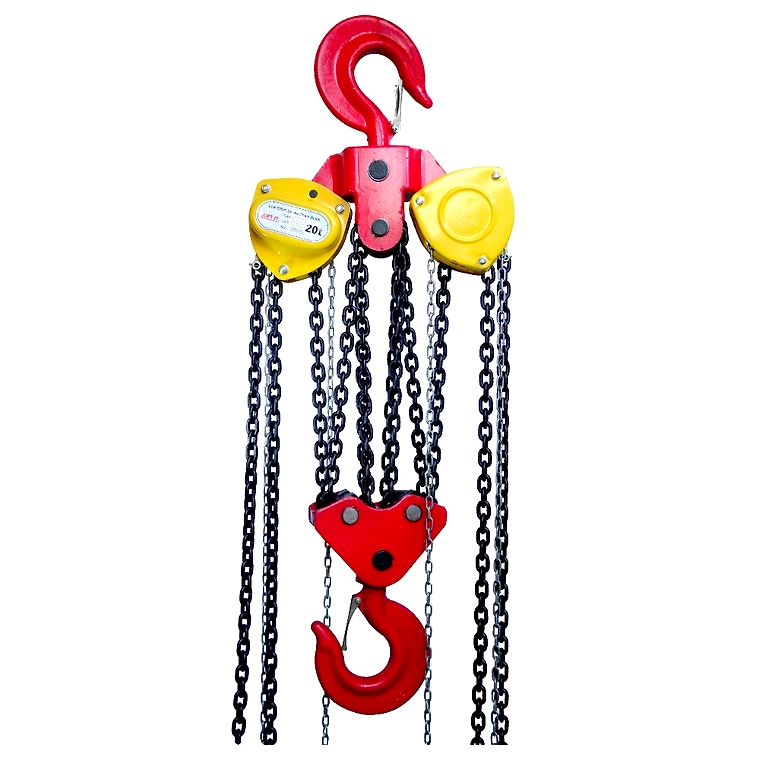

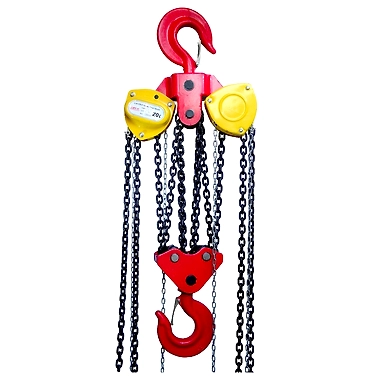

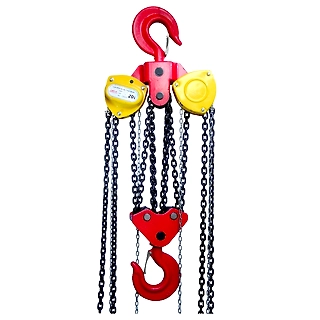

LIFTIT Chain Pulley Block 20 Ton Hoist

LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS

Reduces and Minimises the Lifting forces upto almost 35% and makes the Chain Blocks work on higher speeds

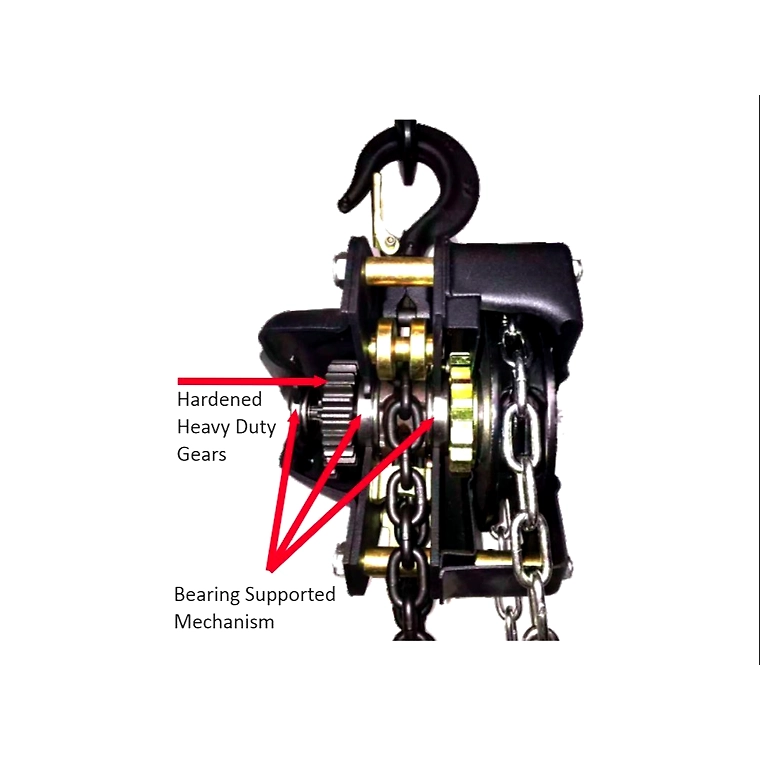

These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.

Special Features of LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS

MADE BY SPECIAL NEW TECHNOLOGY OF LOW EFFORT and HIGH SPEED MECHANISM

Meets all the Required world Standards for Lifting Chain Blocks

Light weight and High Strength Grade 80 Alloy Steel Chain

Compact Design Makes it Eligible for Low Head Room applications.

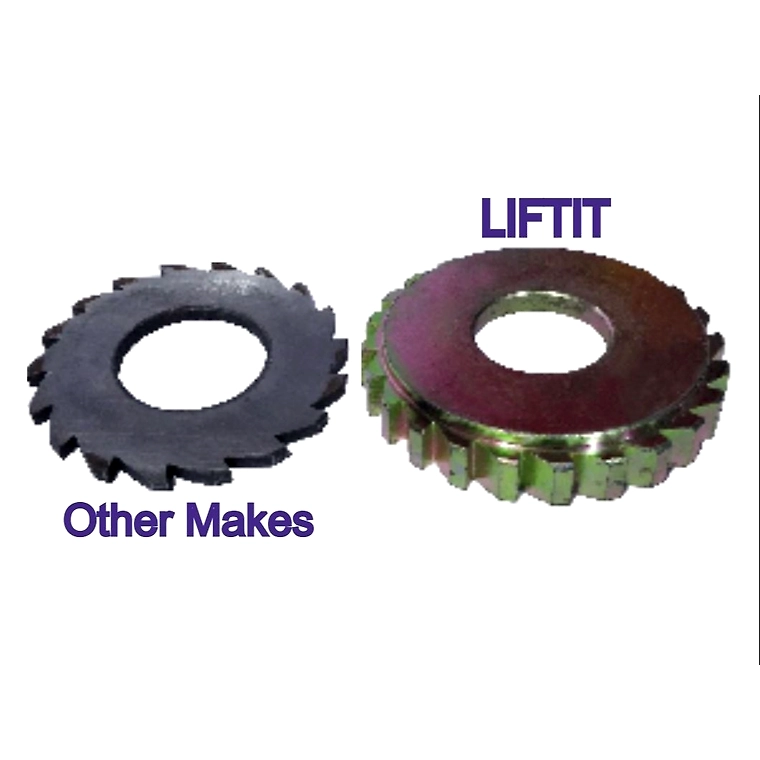

Reinforced Double Pawl Brake System and Large Dia Pawl Springs makes higher braking efficiency.

LIFTIT Chain Pulley Block 20 Ton Hoist


Technical Specification

Model 20 Ton

Capacity 20 Ton

Standing Lifting Height 3 Meter and for extra length contact us

Running test load 30000 Kg

Effort required to lift max Load 414 x 2 N

Load Chain Dia 10 x 30 mm

Hand Chain Dia 5 x 22.2 mm

Net - Gross Weight 105.00 - 116 Kg

Packing Size 70 x 65 x 25 CM

Extra weight meter of extra Lift 19.6 Kg

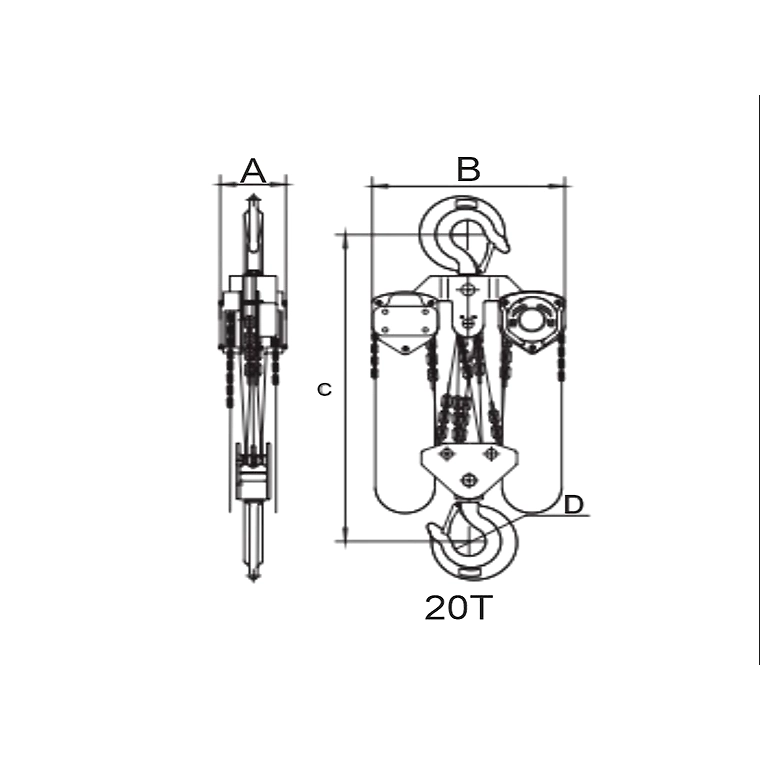

Dimension

A = 215 MM

B = 650 MM

C = 890 MM

D = 110 MM

K = 85 MM
