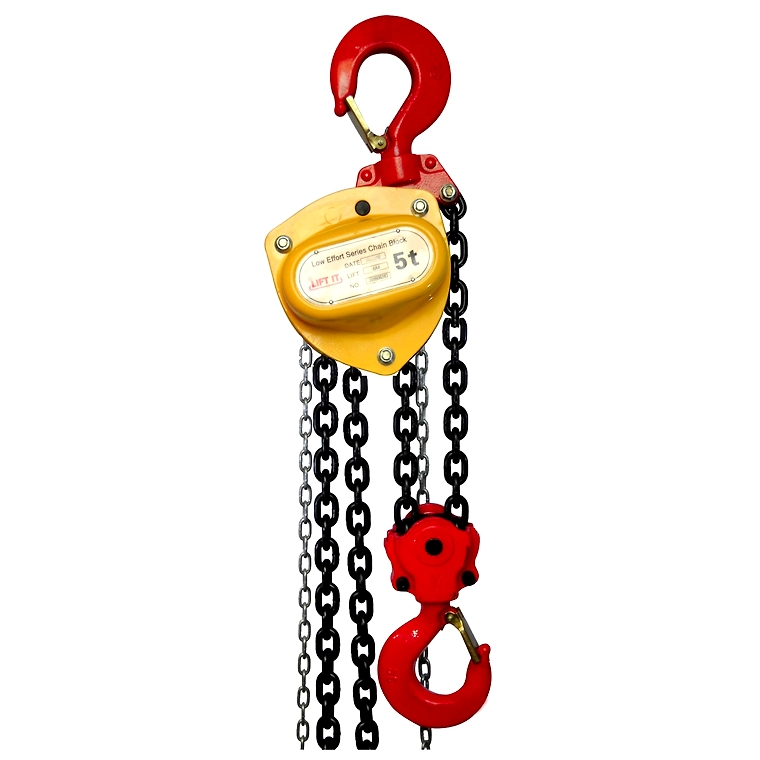

The LIFTIT Chain Pulley Block Hoist is engineered for heavy-duty performance with a remarkable 5-ton lifting capacity, making it an ideal solution for various industrial lifting applications. Constructed with the highest quality materials, including hardened triple spur gears and Grade 80 alloy steel load chains, this chain pulley block guarantees low effort and high-speed operation. Designed to meet global lifting standards, it boasts a lightweight yet high-strength structure, ensuring you can lift heavy loads with minimal force. The compact design allows for use in areas with low headroom, maximizing space efficiency while maintaining robust functionality. The reinforced double pawl brake system enhances braking efficiency, providing added safety during operations. Additionally, the open frame design facilitates easy maintenance and periodic inspections, ensuring your equipment is always in optimal condition. With a standing lifting height of 3 meters and a rugged construction that includes a tested running load of 7500 kg, the LIFTIT Chain Pulley Block is designed for those who demand excellence in their lifting operations.
Key Features
Features | Description |
---|---|
Lifting Capacity | 5 tons |
Standard Compliance | Meets world standards for lifting chain blocks |
Material Construction | Made from hardened triple spur gears and Grade 80 alloy steel |
Lightweight Design | High strength and compact design suitable for low headroom applications |
Brake System | Reinforced double pawl brake system for higher braking efficiency |
Maintenance-Friendly | Open frame design for easy maintenance and inspections |
Lifting Height | 3 meters with options for extra lifting length |
Net Weight | 38.00 kg with Gross Weight of 42 kg |
Packing Size | 43 x 35 x 23 cm |
Load Chain Diameter | 10 x 30 mm |
Hand Chain Diameter | 5 x 22.2 mm |
Extra Lift Weight | 5.4 kg per additional meter |
Attributes | Description |
---|---|
Model | LIFTIT Chain Pulley Block Hoist |
Effort Required to Lift Max Load | 414 N |
Running Test Load | 7500 kg |
Weight Dimensions | Net weight: 38.00 kg, Gross weight: 42 kg |
Dimension A | 186 mm |
Dimension B | 253 mm |
Dimension C | 636 mm |
Dimension D | 64 mm |
Dimension K | 50 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India
LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS
These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.
Special Features of LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS
Meets all the Required world Standards for Lifting Chain Blocks
Light weight and High Strength Grade 80 Alloy Steel Chain
Compact Design Makes it Eligible for Low Head Room applications.

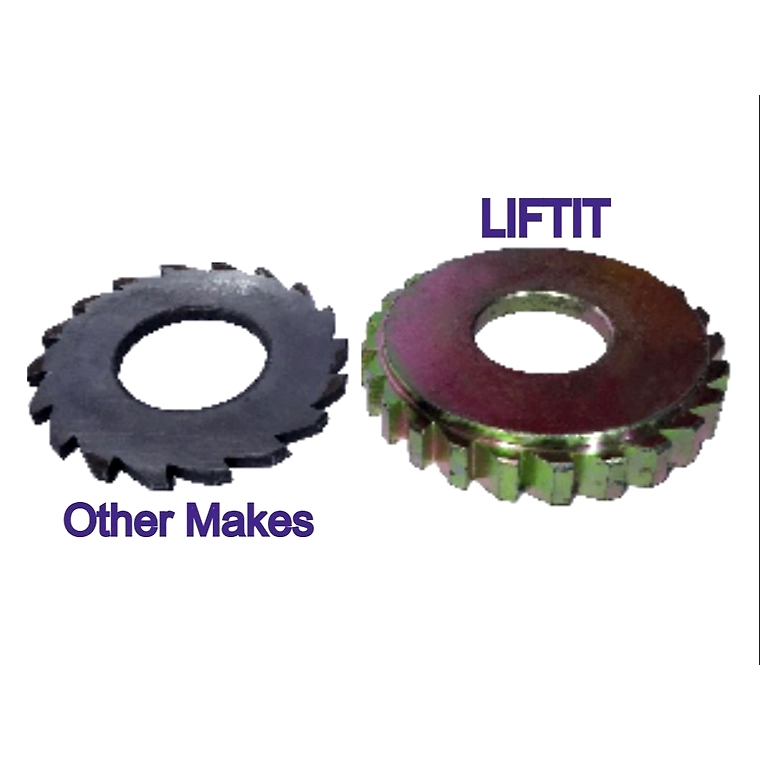

Reinforced Double Pawl Brake System and Large Dia Pawl Springs makes higher braking efficiency.
Open Frame design makes it easy for maintenance and periodic inspections,
Technical Specification
Model 5 Ton
Capacity 5 Ton
Standing Lifting Height 3 Meter and for extra length contact us
Running test load 7500 Kg
Effort required to lift max
Load 414 N
Load Chain Dia 10 x 30 mm
Hand Chain Dia 5 x 22.2 mm
Net - Gross Weight 38.00 - 42 Kg
Packing Size 43 x 35 x 23 CM
Extra weight meter of extra
lift 5.4 Kg

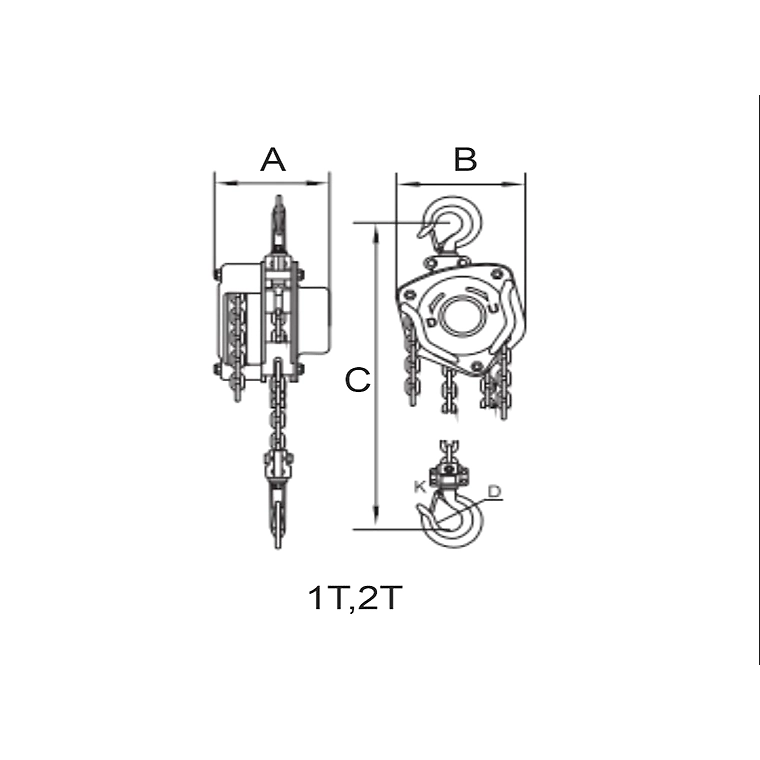

Dimension
A = 186 MM
B = 253 MM
C = 636 MM
D = 64 MM
K = 50 MM
