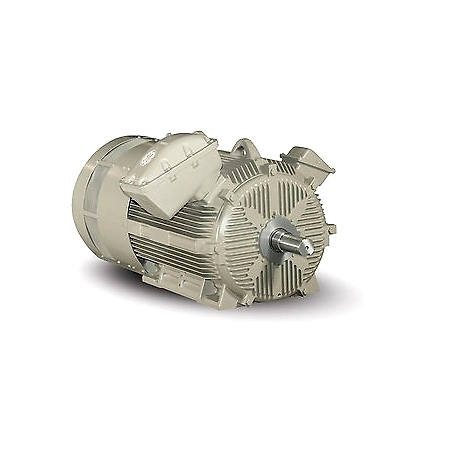

Our Medium Voltage Motors are specifically designed for applications demanding high power between 1kV and 7.5kV, catering to industries such as heavy manufacturing, utilities, and petrochemical sectors. These motors stand out due to their high efficiency and reliability in challenging environments, delivering consistent power output even in extreme conditions. The unique design incorporates patented frame D-Ducts for enhanced airflow, resulting in cooler motor operations. Optional features ensure inverter duty reliability, effectively minimizing harmful impacts from shaft voltages. Our range includes motors with specifications from 100 HP to 1750 HP, available in multiple RPM settings for both 60 Hz and 50 Hz operating conditions. With a commitment to quality and competitive pricing, our Medium Voltage Motors come with a warranty of three to five years, and we also provide flexible delivery on non-stock motors, ensuring that your operational needs are seamlessly met. Our partnerships with renowned manufacturers such as Oxford, Marathon Electric, Crompton & Greaves, and others underscore our commitment to quality and reliability, making us a trusted supplier for large corporate houses and MNCs.
Key Features
| Features | Description |
|---|---|
| Power Rating | 1kV to 7.5kV |
| Efficiency | High efficiency in demanding environments |
| Durability | Engineered for durability and performance |
| Applications | Ideal for petrochemical, power generation, mining, and manufacturing |
| Warranties | Three to Five Years (IEEE 841) |
| Frame Size Options | 440-7000 NEMA |
| Advanced Design | Internal frame air circuit with patented airflow design |
| Bearing Options | Self-aligning spherically seated sleeve bearings |
| Attributes | Description |
|---|---|
| Motor Size | 100-1750 HP |
| RPM | 900-3600 RPM (60 Hz) / 900-3000 RPM (50 Hz) |
| Voltage Options | 460V, 575V, 2300/4000V, 6600V |
| Enclosure Types | TEFC, ODP, WPI, WPII |
| Compliance | NEMA, CSA, UL, IEEE 112B, AEx nA, API 547 and 541 |
| Insulation Class | Class F insulation |
| Warranty | 3-5 Years |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: GE Industrial Motors
Country Of Origin: India
Specially engineered to excel in extreme Petrochemical, Power Generation, Mining and general process environments and applications.
Why is the Quantum LMV motor better?
Unique Design - An internal frame air circuit with patented frame D-Ducts and trapezoidal rotor vents dramatically increases airflow for a cooler operating motor. This gives more flexibility in choosing frame sizes.
Inverter Duty Reliability - Optional Insulated bearings and drive end shaft grounding ring are optional. This minimizes the impact of harmful shaft voltages. A separate blower is available for constant torque applications.
Superior Bearings - Available self-aligning spherically seated sleeve bearings allow the motor to adapt to the best position for the load. The shaft can adjust without increasing temperature, vibration or noise levels.
Technical Scope
