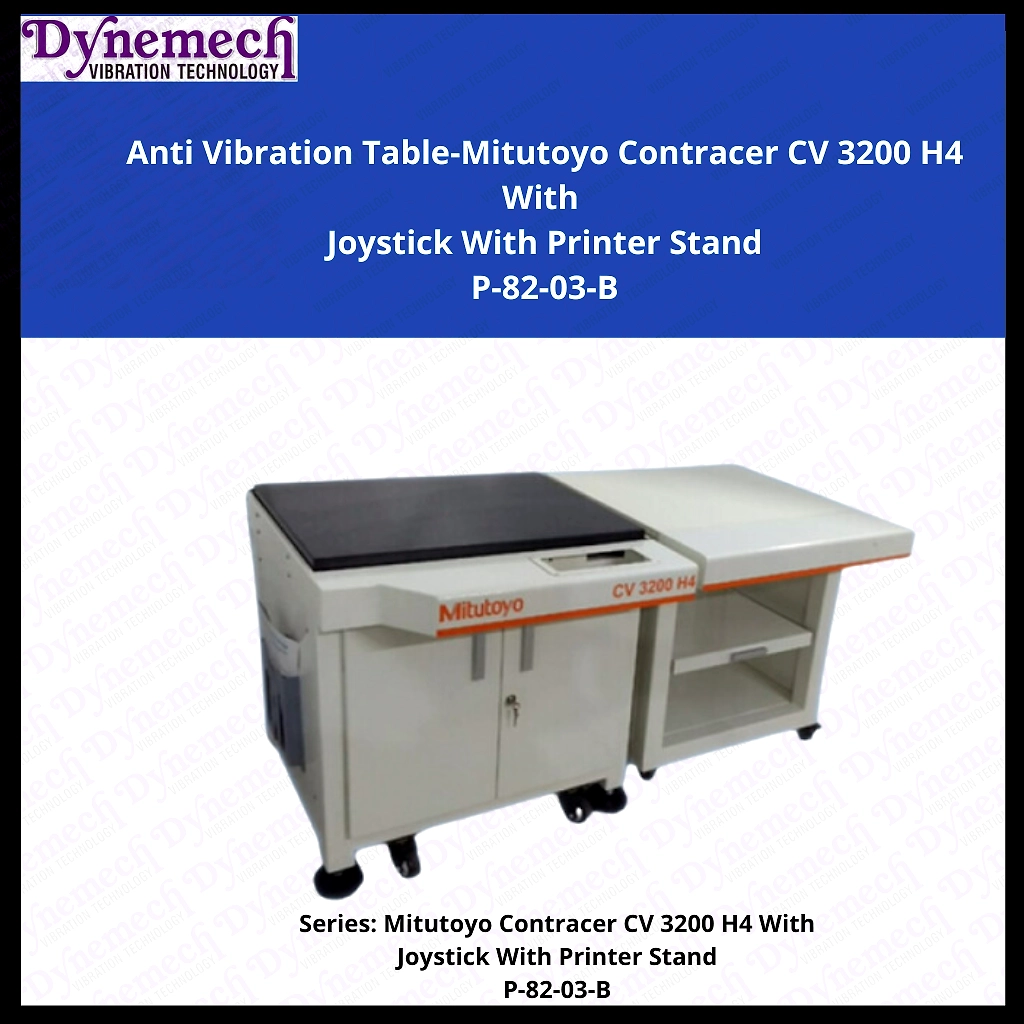

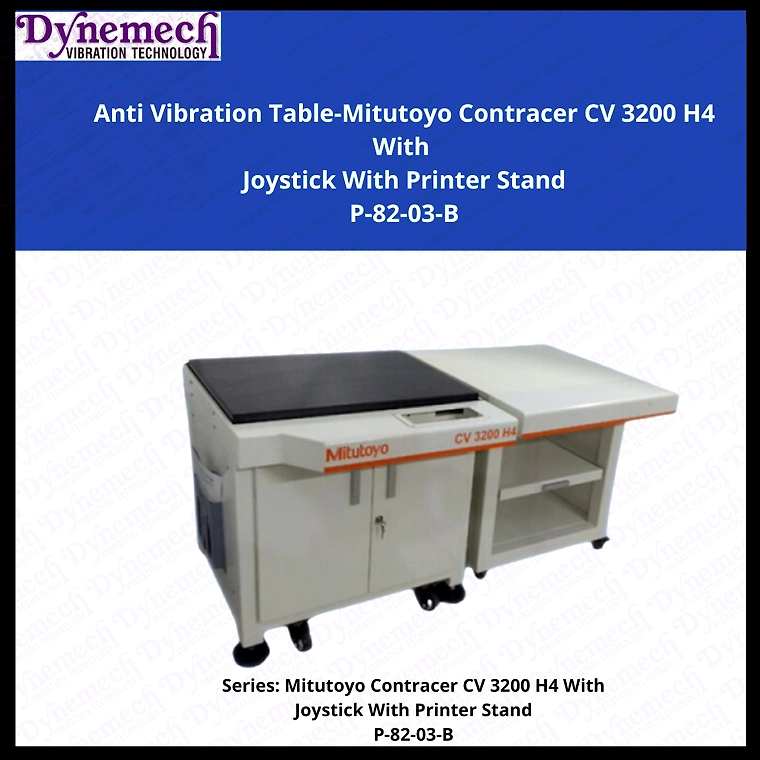

The Mild Steel Anti Vibrating Table is expertly engineered for Quality Control Laboratories, specifically designed to mitigate the effects of high vibration environments typically found in industrial settings. This model, the Contracer CV3200 W4, P-82-03-B, features a high-precision granite surface plate measuring L 750 mm x B 600 mm x T 30 mm, providing Grade-1 accuracy for critical measurements. The robust 60 mm tubular structure, reinforced with 65 x 65 mm AV pads at eight strategic points, ensures optimal stability while effectively absorbing and dampening vibrations. This makes it an ideal choice for use with analytical balances and control scales that require precise measurements. The table includes a front keyboard panel with a laser-cut joystick pocket, a dedicated printer stand accommodating additional equipment setups, and a pull-out tray for easy access to the printer. Our anti-vibration tables allow for customization, providing options for elastomeric, pneumatic, or spring-based damping systems to cater to specific vibration challenges faced in your testing laboratory. With additional features such as an insulation plate to further eliminate unwanted vibrations, the Mild Steel Anti Vibrating Table is a reliable investment in enhancing quality control and measurement accuracy in any rigorous testing environment.
Key Features
| Features | Description |
|---|---|
| Granite Surface Plate Size | L 750 mm x B 600 mm x T 30 mm |
| Tubular Structure Dimensions | 60 mm with 65 x 65 mm frame |
| Vibration Pads | 8 AV pads for maximum stability |
| Damping Options | Elastomeric, Pneumatic, or Spring Based |
| Keyboard Panel | Front panel with laser-cut joystick pocket |
| Printer Stand | Size 600 x 600 mm with a pull-out tray |
| Vibration Insulation | Insulation plate to remove unwanted vibrations |
| Grade-1 Accuracy | Ensures precision measuring capabilities |
| Attributes | Description |
|---|---|
| Material | Mild Steel and Granite |
| Vibration Isolation Method | Damping at two locations |
| Usage | For laboratory balances and control scales |
| Overall Dimensions | Customizable based on requirements |
| Weight Capacity | To be determined based on setup |
| Color | Standard industrial gray |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure 65 X 65 mm AV pads at 8 places
Front keyboard panel with laser cut joystick pocket for Joystick
Additional printer stand to accommodate CPU console, monitor, keyboard and mouse. Pull out tray for printer. Printer stand Size 600X600mm.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size L 750 X B 600 X T 30 mm
60 mm Tubular Structure 65 X 65 mm AV pads at 8 places
Front keyboard panel with laser cut joystick pocket for Joystick
Additional printer stand to accommodate CPU console, monitor, keyboard and mouse. Pull out tray for printer. Printer stand Size 600X600mm.
