Mini Irrigation Sprinkler

Advance Information*

Overview

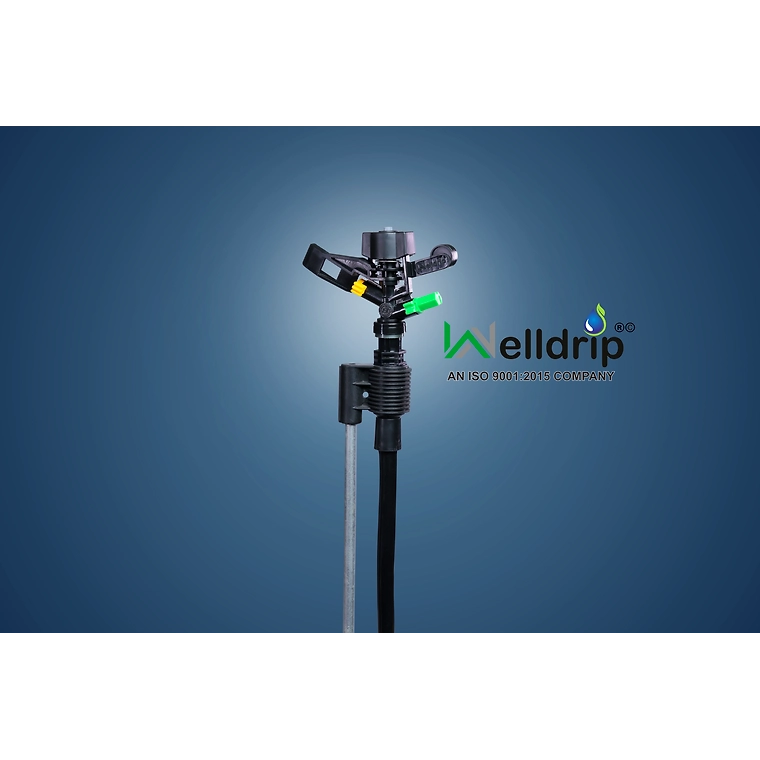

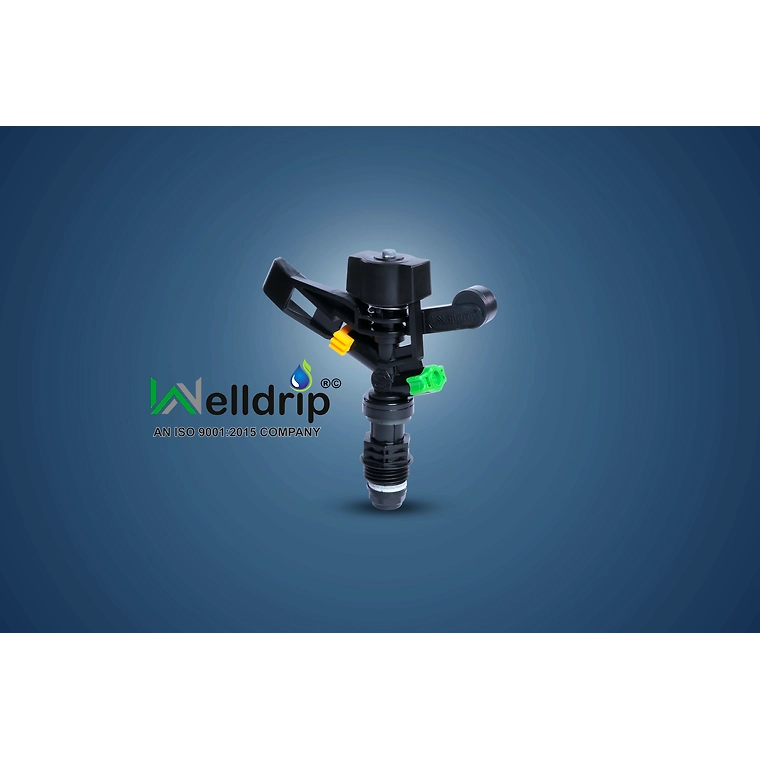

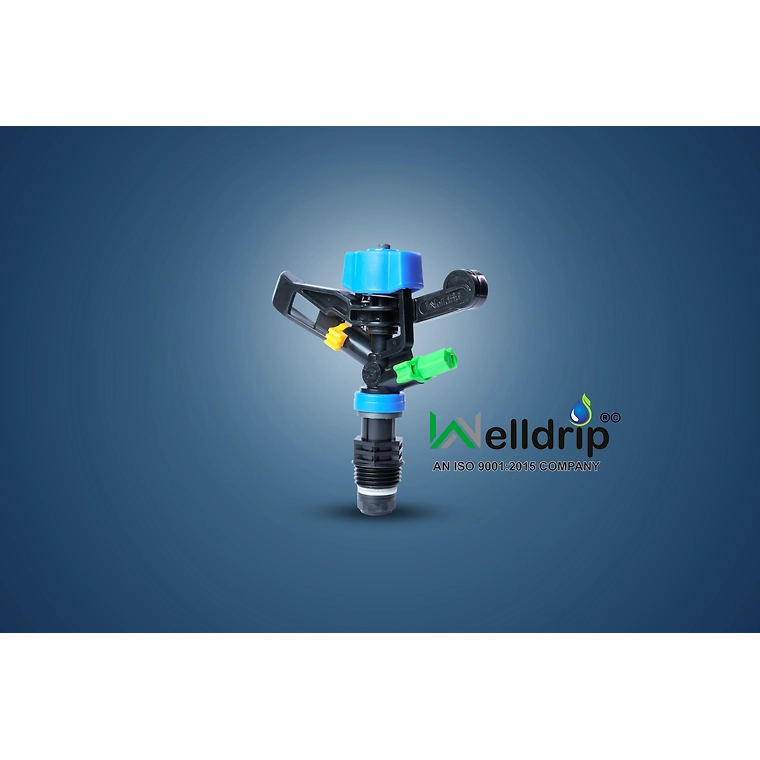

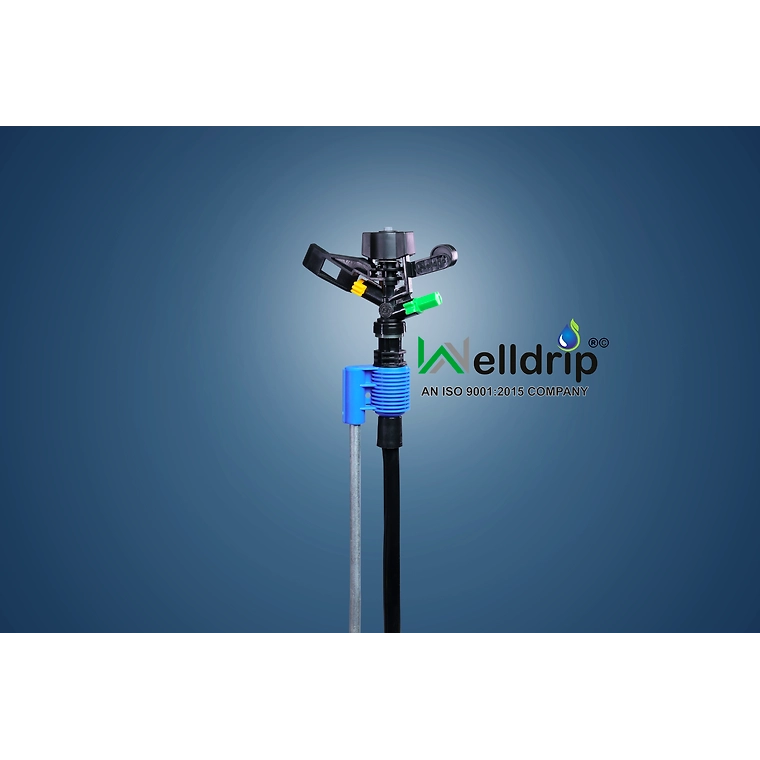

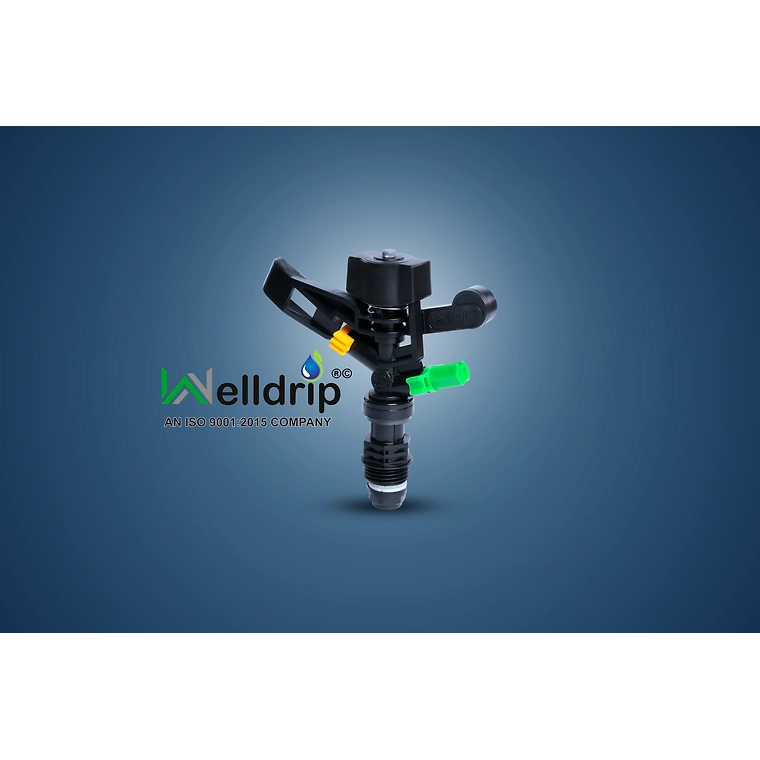

The Mini Irrigation Sprinkler from WELLDRIP is a highly efficient and specialized irrigation system designed for targeted watering needs. Unlike traditional impact sprinklers, WELLDRIP's mini sprinklers are engineered to provide precise and controlled water distribution with a low trajectory, making them ideal for under-canopy irrigation and various agricultural applications. They are particularly suited for crops requiring comprehensive area coverage such as ginger, onions, medicinal plants, vegetable plantations, and nurseries.

Design and Construction

The WELLDRIP Mini Irrigation Sprinkler features a compact, robust design, ensuring durability and ease of use. Constructed from high-quality materials, they are resistant to UV radiation and chemical damage, making them well-suited for both outdoor and greenhouse applications. The components are precisely machined to ensure consistent performance and reliability over extended periods.

Key Design Attributes:

• Material: UV-resistant plastic and corrosion-resistant metals
• Color: Available in various colors for easy identification and application purposes
• Connector Type: Standardized connectors compatible with most irrigation systems
• Mounting Options: Can be mounted on stakes or installed as part of a fixed system

Technical Specifications

The performance and technical characteristics of WELLDRIP Mini Irrigation Sprinklers are designed to meet a wide range of agricultural needs. Below are the key technical parameters:

• Operating Pressure Range: 1.0 - 2.0 bar
• Flow Rate: 50 to 300 liters per hour (dependent on nozzle size and operating pressure)
• Wet Radius: 1.5 to 3.0 meters (varies with model and operating pressure)
• Water Distribution Pattern: Uniform, with a low trajectory spray to minimize wind drift and evaporation losses
• Temperature Range: Operative from 5°C to 50°C

Technical Variants:

• Standard Model: Ideal for general use in small garden patches and nurseries
• High-Flow Model: Suitable for applications requiring higher water volumes
• Adjustable Model: Features adjustable flow rate settings for customizable irrigation

Applications

WELLDRIP Mini Irrigation Sprinklers are versatile tools that find extensive use across diverse agricultural sectors. Thanks to their precise water distribution capabilities, they ensure optimal water use, which is crucial for maximizing crop yield and minimizing water wastage.

Application Scenarios:

• Under-Tree Irrigation: Perfect for orchards and tree plantations where water needs to be delivered directly to the root zone without wetting the foliage
• Vegetable Gardens: Efficient watering for vegetable patches, ensuring even soil moisture levels and preventing waterlogging
• Nurseries: Provides gentle watering for young plants and seedlings, promoting healthy growth
• Medicinal Plantations: Ideal for precise irrigation of medicinal plants, which often require specific watering conditions
• Flower Gardens: Effective in maintaining consistent moisture levels, which is essential for flowering plants

Installation

Installing WELLDRIP Mini Irrigation Sprinklers is straightforward and can be completed within minutes. The system's modular design allows it to be easily integrated into existing irrigation setups or installed as an independent system.

Installation Steps:

1. Pre-Installation Preparation: Inspect and prepare the area where the sprinklers will be installed. Ensure that the water supply lines are free from debris.
2. Connecting the Sprinkler: Attach the mini sprinkler to the water supply line using the standard connector provided.
3. Positioning the Sprinkler: Mount the sprinkler on a stake or fix it in the designated position. Ensure it is level for even water distribution.
4. Testing the System: Turn on the water supply and check for leaks. Adjust the sprinkler position if necessary to ensure uniform coverage.
5. Adjustments: If using the adjustable model, set the desired flow rate and coverage area based on specific watering requirements.

Maintenance and Troubleshooting

To ensure that WELLDRIP Mini Irrigation Sprinklers operate efficiently, regular maintenance is recommended. Proper maintenance helps in prolonging the lifespan of the system and ensures consistent irrigation performance.

Maintenance Tips:

• Regular Cleaning: Periodically clean the nozzles and filters to prevent clogging.
• Inspection: Frequently check for wear and tear, especially in the connectors and moving parts.
• System Flushing: Flush the entire irrigation line to remove any particulates or sediment that may have accumulated.
• Seasonal Adjustments: Adjust the sprinkler settings according to seasonal water requirements.

Troubleshooting Guide:

• Inconsistent Water Flow: Check for clogged nozzles and clean as required.
• Reduced Coverage Area: Ensure that the operating pressure is within the specified range.
• Leaking Connectors: Tighten any loose connections or replace damaged O-rings.

Environmental Impact and Sustainability

The WELLDRIP Mini Irrigation Sprinkler is designed with environmental sustainability in mind. The system
