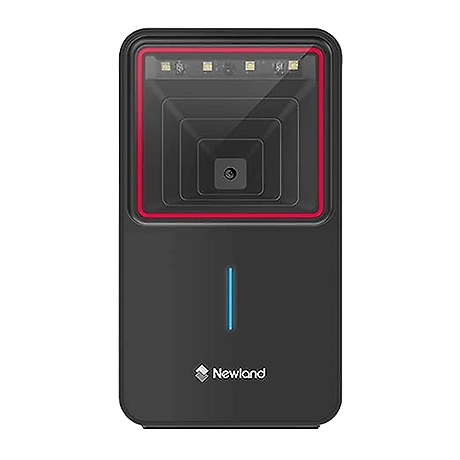

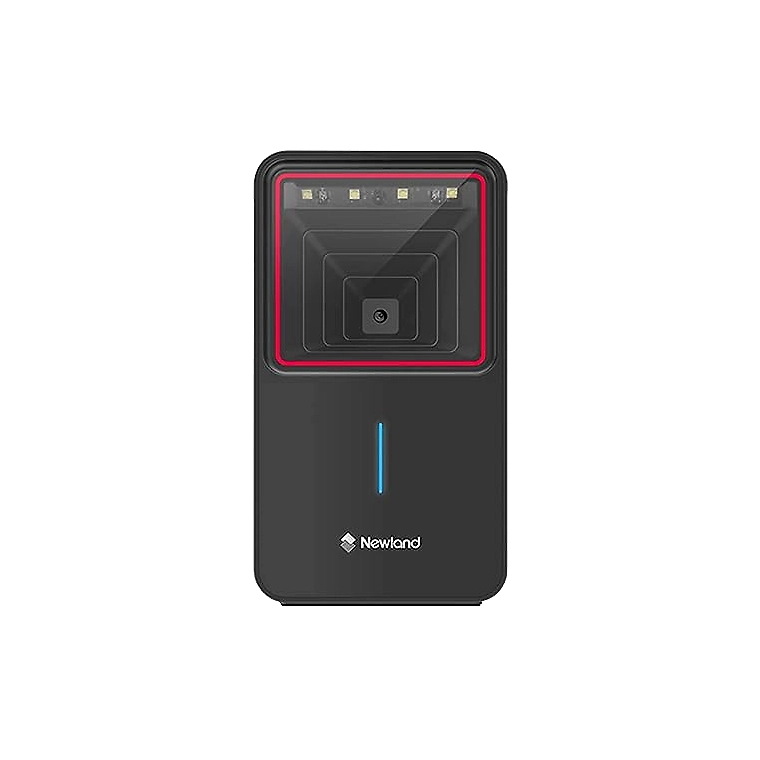

NEWLAND FR42 BT 2D TABLETOP BARCODE SCANNER

Brand: NEWLAND

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry

Image Sensor 1080*1280 CMOS

Illumination White LED

Symbologies 2D: PDF417, QR Code, Data Matrix, Micro QR, MICRO PDF 417, GM CODE, Hanxin Code, Maxicode, Aztec, Code ONE

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, 1D Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code32(Italian Pharma Code), Code 11, MSI-Plessey, Plessey

Resolution ?3mil

Typical Depth of Field EAN-13: 10mm-130mm (13mil)

QR Code: 15mm-110mm (15mil)

Code 39: 35mm-80mm (5mil)

Scan Angle Pitch: ?60?, Roll: 360?, Skew: ?65?

Min. Symbol Contrast 15%

Field of View Horizontal 62?, Vertical 54?

Motion Tolerance 1.8m/s

Physical

Dimensions (L?W?H) 82.0?77.0?146.0mm

Weight 209g

Notification Beep, LED

Interfaces Bluetooth 5.0 BLE and HID, Bluetooth Dongle CDC/KBW/HID-POS

Operating Voltage 5VDC?5%

Environmental

Operating Temperature -10?C to 55?C (14?F to 131?F)

Storage Temperature -40?C to 70?C (-40?F to 158?F)

Humidity 5%~95% (non-condensing)

ESD ?12 KV (air discharge); ?8 KV (contact discharge)

Drop 1.5m/4.9ft

Sealing IP52

Battery Charge Temperature 0?C to 45?C (32?F to 113?F)

Wireless

Radio Technology Bluetooth 5.0

Communication Distance Bluetooth 5.0: 50m/164ft (direct line of sight in the open space)

Battery 2000 mAh lithium-ion battery

Expected Charge Time 5 hours

Expected Battery Life 9.5 hours of continuous operation (scan once per 3 seconds)

16 hours of continuous operation (scan once per 10 seconds)

Certifications

IEC 62471. RoHS, CE RED (BT only), FCC ID (BT only), IEC 60068-2-31, IEC 60529

Desktop 2D barcode Scanner with 1280 x 800 CMOS image sensor for superior motion tolerence,IP52 rated seal protection agaisnt dust & water IR sensor equipped , 1.2 mtr drop protection,armed with patented 6th gen technology 1280 x 800 CMOS image sensor
RS-232,USB Interfaces, 293g Weight
83x81x148 mm Dimensions

Country Of Origin : India

  • Additional information

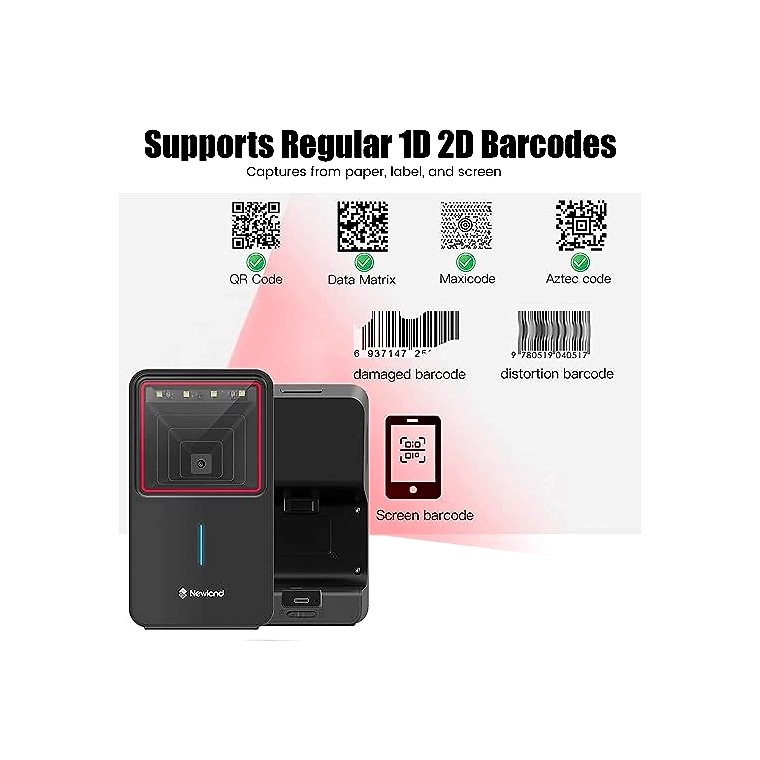

    The FR42-BT is a barcode scanning powerhouse.

    The megapixel camera allows users to scan 1D

    and 2D barcodes, including barcodes displayed

    in a variety of filmed screens, with impressive

    speed and ease.

     Reliable and Stable Wireless

    Communication

    Adopting Bluetooth 5.0 dongle which is strong

    anti-interference and stable to transmit the data.

     Superior Motion Tolerance

    Exceptional motion tolerance (1.8m/s) and large

    FOV (horizontal 62°, vertical 54°) enhance user

    experience.

    The first wireless desktop products by Newland

    whose integrated structure design can be placed on

    the desktop to scan the code without holding it, and it

    can also be flexibly grasped on both sides.

     No Fear of Power off

    The battery can be replaced easily and charged

    respectively.

     Durable Construction

    The FR42-BT, built into an IP52-sealed and drop

    resistant (1.5m) housing with no moving parts

    fortifies itself inside and out, is suitable for the tough

    outdoor environments.



    Advance Information*

    NEWLAND FR42 BT 2D Tabletop Barcode Scanner

    Introduction: The Next Evolution in Barcode Scanning

    Discover the pinnacle of barcode scanning technology with the NEWLAND FR42 BT 2D Tabletop Barcode Scanner. Combining cutting-edge hardware, superior motion tolerance, and rugged durability, the FR42 BT is designed to meet the diverse and demanding environments of today’s market. Whether you're managing a bustling retail operation, streamlining logistics, or enhancing security systems, this scanner is engineered to deliver unparalleled performance and reliability.

    Core Features and Benefits

    Advanced Imaging Technology

    At the heart of the FR42 BT lies a state-of-the-art 1280 x 800 CMOS image sensor. This megapixel camera enables the scanner to effortlessly read both 1D and 2D barcodes. The advanced sensor technology allows for rapid decoding, significantly increasing productivity and reducing wait time.

    Unmatched Motion Tolerance

    Boasting an exceptional motion tolerance of 1.8m/s, the FR42 BT handles even the fastest-moving barcodes with precision. Its generous field of view (FOV)—62° horizontally and 54° vertically—ensures that the scanner captures barcodes quickly and accurately, regardless of placement.

    Robust Build Quality

    The FR42 BT is designed for durability. Encased in an IP52-rated housing, it offers reliable protection against dust and water. Additionally, the scanner's tough construction withstands drops from heights up to 1.2 meters, making it an excellent choice for demanding industrial environments.

    Seamless Connectivity

    The FR42 BT simplifies connectivity through its versatile interface options, including RS-232 and USB connections. The integration process is smooth, allowing for immediate deployment into existing systems without requiring extensive modifications.

    Wireless Freedom with Bluetooth 5.0

    Experience the freedom and convenience of wireless operation. The FR42 BT incorporates Bluetooth 5.0 technology, ensuring stable and interference-free data transmission. This feature enables seamless connectivity with a range of devices, enhancing operational flexibility.

    Convenient, Hands-Free Operation

    The FR42 BT's integrated structure is intelligently designed for desktop use. It allows users to scan barcodes without needing to hold the device, thus freeing up hands for other tasks. If necessary, it can also be easily grasped and operated manually, providing versatility to suit different scanning needs.

    Reliable Power Management

    Never worry about downtime with the FR42 BT's efficient power management system. The scanner features a user-replaceable battery that can be charged separately, ensuring continuous operation and minimizing interruptions.

    Technical Specifications

    • Imager Type: 1280 x 800 CMOS Sensor
    • Protection Rating: IP52 (Dust & Water Resistant)
    • Drop Resistance: 1.2 meters
    • Motion Tolerance: 1.8m/s
    • Field of View:
    • Horizontal: 62°
    • Vertical: 54°
    • Housing Dimensions: 83mm (L) x 81mm (W) x 148mm (H)
    • Weight: 293g
    • Interfaces: RS-232, USB
    • Wireless Connectivity: Bluetooth 5.0

    Application Scenarios

    The FR42 BT excels in various settings, making it a versatile tool for numerous applications:

    • Retail:
    • Streamline checkout processes by scanning product barcodes quickly and efficiently.
    • Manage inventory with ease by scanning items directly on the store shelves or in the stockroom.
    • Enhance customer service by providing swift barcode-driven information updates and transactions.

    • Logistics and Warehousing:

    • Optimize asset tracking and management by capturing barcode information on packages, pallets, and inventory items.
    • Improve package sorting accuracy and reduce errors in order fulfillment.
    • Facilitate rapid data entry for incoming and outgoing shipments, enhancing overall operational efficiency.

    • Manufacturing:

    • Ensure accurate tracking of production workflows by scanning work-in-progress and finished products.
    • Maintain quality control standards by easily recording component and batch data.
    • Streamline the identification and management of raw materials and supplies across the production floor.

    • Healthcare:

    • Empower healthcare professionals to quickly and accurately scan patient ID bracelets, medication labels, and medical documents.
    • Enhance operational efficiency by integrating the scanner into electronic health record (EHR) systems.
    • Improve inventory management for medical supplies and equipment.

    • Hospitality and Entertainment:

    • Accelerate check-ins and streamline ticket validation at events and venues.
    • Improve guest experience by efficiently managing reservations and loyalty programs.
    • Enhance security and access control by verifying barcoded passes and IDs.

    • Security and Access Control:

    • Quickly and reliably scan access badges and credentials for controlled entry points.
    • Simplify day-to-day operations by integrating with existing security systems. -

    *Disclaimer: This additional description has been automatically generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
