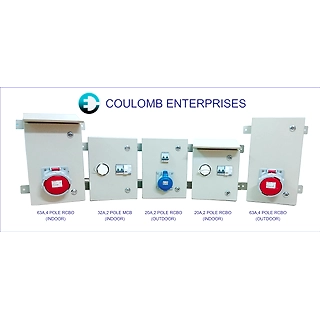

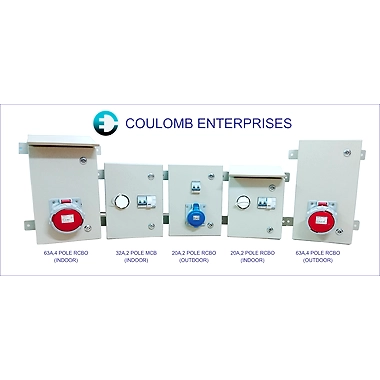

OUTDOOR TYPE DISTRIBUTION PANELS

A distribution board or distribution panel (DP) is an important part of an electricity supply system. Its job is to split an incoming electrical power feed into multiple secondary or subsidiary circuits. Most of the time, each of these secondary circuits will be protected with a fuse or breaker.

Advance Information*

Overview

OUTDOOR TYPE DISTRIBUTION PANELS from COULOMB are engineered to meet and exceed the rigorous demands of various electrical distribution requirements in both industrial and commercial settings. Recognized for their robust construction and reliable performance, these panels ensure optimal power management and safety. Designed for outdoor applications, these panels are built to handle harsh environmental conditions while maintaining functionality and durability. COULOMB’s distribution panels are pivotal in centralizing the control and distribution of electrical power, making them indispensable for any building or facility looking to manage power effectively.

Key Functions

Power Reception and Distribution

• Main Electrical Supply Reception: These panels are designed to receive electrical power primarily from a main supply line.
• Secondary Circuit Distribution: Distributes power to multiple secondary circuits, making sure that electrical energy is adequately supplied to various parts of the building or facility.

Circuit Protection

• Fuses and Breakers: Each secondary circuit is equipped with protections such as fuses or breakers to safeguard the electrical system against overloads and short circuits.

Features

Robust Construction

• Weather-Resistant Enclosures: Built to withstand harsh outdoor conditions, these panels feature weather-resistant enclosures made from high-quality materials.
• Corrosion-Resistant Coatings: The enclosures are coated with corrosion-resistant materials to extend the life and functionality of the panels.
• Heavy-Duty Hinges and Sealants: Equipped with robust hinges and reliable sealants to ensure secure closure and protect internal components.

Customization and Flexibility

• Modular Design: COULOMB offers a variety of customizable options, allowing the panels to be tailored to specific requirements.
• Different Configurations: Available in various configurations to meet a range of technical and capacity needs.
• Tailored Electrical Specifications: Custom electrical specifications according to different project requirements.

Safety and Compliance

• Safety Features: Comes with multiple safety features, including grounding kits and insulated barriers.
• Standards Compliance: Built in adherence to international electrical standards to ensure safe and reliable operation.
• Lockable Panels: Lockable doors and components enhance security and prevent unauthorized access.

Technical Specifications

Enclosure Specifications

• Material: Galvanized steel or stainless steel options for robust protection.
• IP Rating: IP65 or higher, ensuring superior protection against dust and water ingress.
• Dimensions: Available in various sizes to fit specific space requirements and electrical configurations.
• Color Options: Typically available in standard industrial color schemes like gray or white.

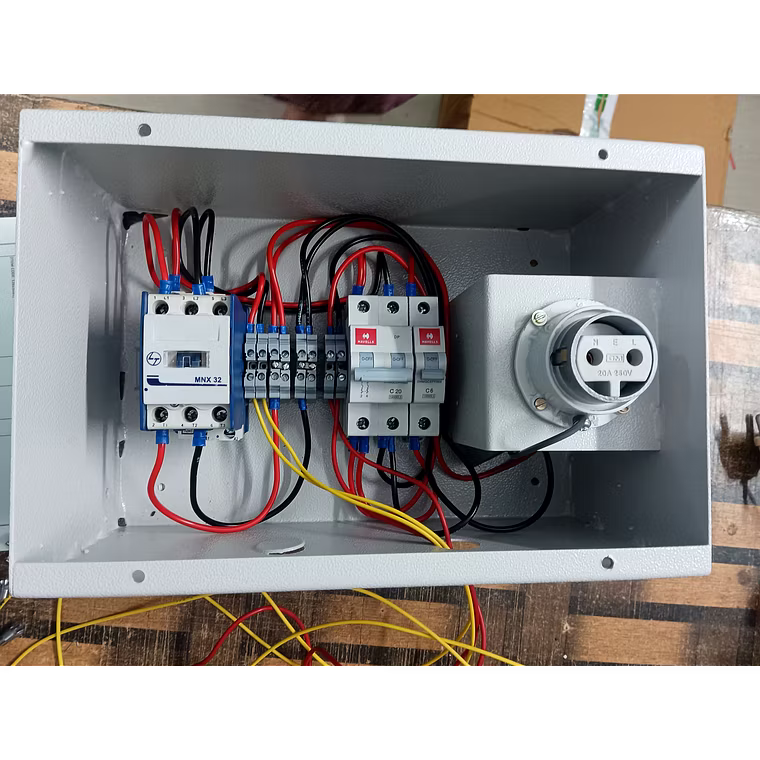

Electrical Components

• Main Switch: Heavy-duty main switch capable of handling high amperages.
• Busbar System: High-conductivity copper or aluminum busbars designed for efficient power distribution.
• Circuit Breakers: Wide range of MCBs (Miniature Circuit Breakers) and MCCBs (Moulded Case Circuit Breakers) to cater to different circuit protection needs.
• Current Rating: Supports a broad range of current ratings to accommodate various electrical loads.
• Voltage Rating: Suitable for standard voltage levels, typically up to 690V.

Installation and Maintenance

• Easy Installation: User-friendly design ensuring straightforward installation, with pre-punched knockouts for flexible conduit placement.
• Low Maintenance: Designed for minimal maintenance, featuring durable components to ensure long-term reliability.
• Accessibility: Panels feature easy-to-remove covers and well-organized internal layouts for convenient access during inspections or maintenance.

Applications

Industrial Use

• Manufacturing Plants: Ensures reliable power distribution in heavy-duty machinery and assembly lines.
• Warehouses: Efficient management of electricity for lighting and other electrical apparatuses.
• Mining Operations: Suitable for remote and rugged mining environments, ensuring consistent power distribution in demanding conditions.

Commercial Use

• Office Complexes: Ideal for managing the power needs of multi-floor office buildings.
• Retail Outlets: Maintain reliable electrical power for lighting, HVAC systems, and point-of-sale systems.
• Hospitals and Clinics: Critical in managing power for life-saving medical equipment and general building infrastructure.

Advantages

Reliability and Durability

• Long Lifespan: Built with high-quality materials and components ensuring a long operational lifespan.
• Consistency: Provides stable and reliable power distribution, minimizing downtime.
• Performance: Maintains high performance even in extreme weather conditions due to robust weatherproofing.

Safety

• Enhanced Protection: Advanced features to prevent electrical hazards and ensure user safety.
• Systemic Safety: Ensures the safety of both the electrical systems and the people working around them.

Customization

• Flexible Solution: Adaptable to various needs and application requirements.
• Scalability: Can be scaled according to growing
