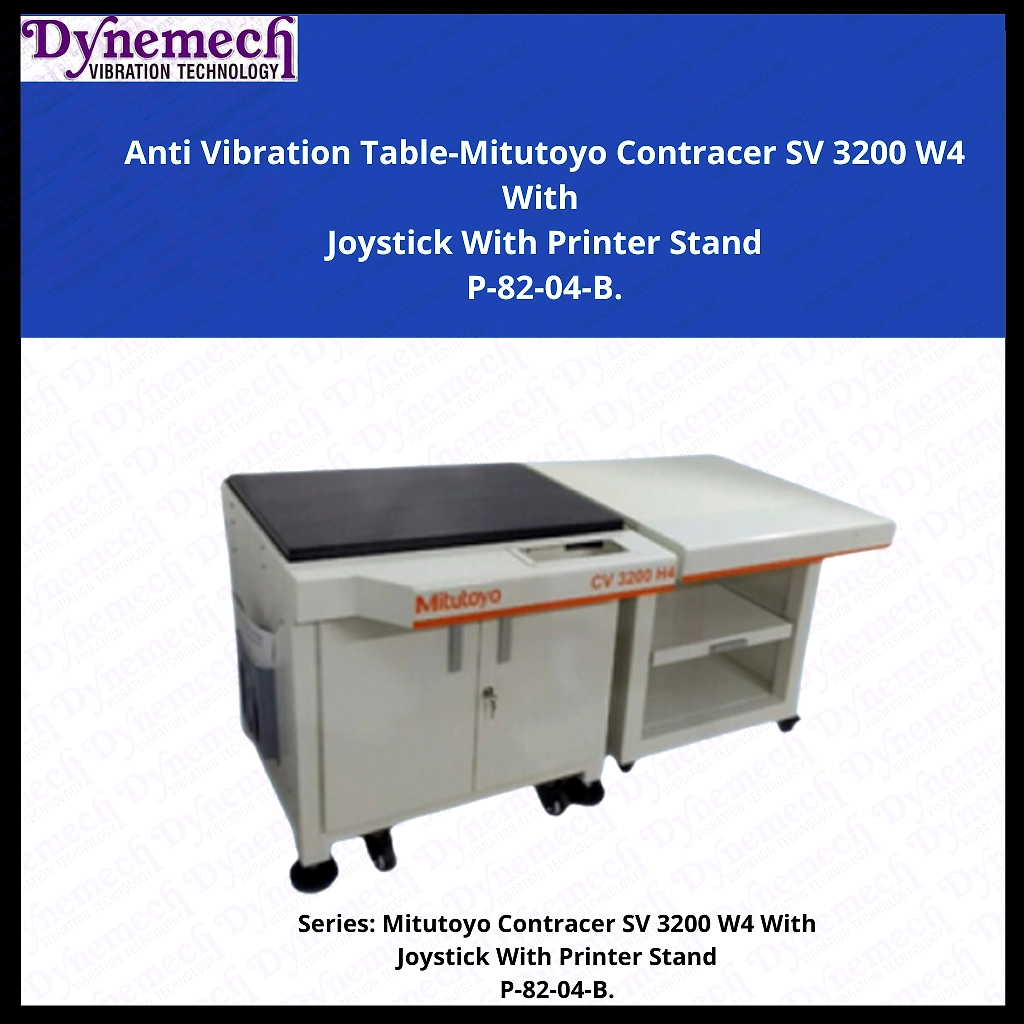

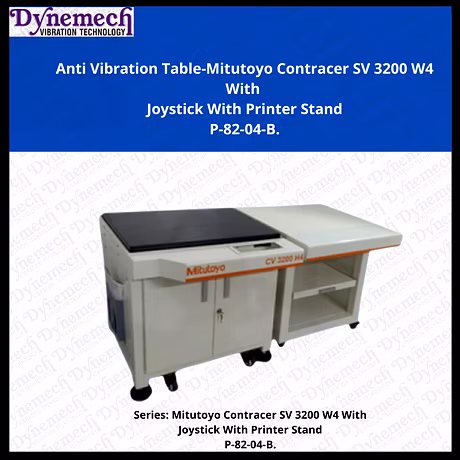

Introducing the Precision Measuring Metrology Instrument Anti Vibration Tables designed for SV 3200 W4, model P-82-04-B, which is a state-of-the-art solution for Testing and Quality Laboratories. Constructed with a durable granite base, measuring L 1100 X B 600 X T 30 mm, complemented by a robust 60 mm tubular structure (65 X 65 mm), these tables are optimized for environments rife with vibration disturbances from heavy machinery, including presses and VMCs. Featuring 8 anti-vibration pads, a front keyboard panel with a precision laser-cut joystick pocket, and an additional printer stand for your CPU console, monitor, keyboard, and mouse, these tables streamline usability while maintaining high structural integrity. A pull-out tray for easy printer access is also included, along with a printer stand measuring 600X600mm. Ideal for analytical and laboratory balances, our tables offer Grade-1 granite accuracy for critical measurements. With vibration damping strategically placed below the granite table top and leveling feet for proper table adjustment, these Anti-Vibration Tables are customizable with options for Elastomeric, Pneumatic, or Spring-Based Damping systems. Elevate your laboratory precision and efficiency with Dynemech's Anti-Vibration Tables, tailored specifically to interrupt the vibrations emanating from industrial machinery.
Key Features
| Features | Description |
|---|---|
| Granite Base Size | L 1100 x B 600 x T 30 mm |
| Tubular Structure Size | 60 mm with 65 x 65 mm tubes |
| Anti-Vibration Pads | 8 places for enhanced stability |
| Keyboard Panel | Laser cut joystick pocket for easy access |
| Printer Stand | Accommodates CPU, monitor, keyboard, and mouse |
| Printer Stand Size | 600 x 600 mm |
| Damping Options | Elastomeric, Pneumatic, or Spring Based |
| Vibration Damping Location | Below granite table top and under leveling feet |
| Granite Accuracy | Designed for Grade-1 accuracy measurements |
| Attributes | Description |
|---|---|
| Total Weight | Variable, depending on additional configurations |
| Surface Finish | Polished granite for smooth measuring surface |
| Load Capacity | Accommodates diverse laboratory and analytical equipment |
| Use Case | Ideal for laboratories experiencing vibrations from industrial units |
| Assembly | Requires minimal assembly for setup |
Key Words
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Granite base of size L 1100 X B 600 X T 30 mm
60 mm Tubular Structure
65 X 65 mm AV pads at 8 places
Front keyboard panel with laser cut joystick pocket for Joystick Additional printer stand to accommodate CPU console, monitor, keyboard and mouse. Pull out tray for printer. Printer stand Size 600X600mm.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size L 1100 X B 600 X T 30 mm
60 mm Tubular Structure
65 X 65 mm AV pads at 8 places
Front keyboard panel with laser cut joystick pocket for Joystick Additional printer stand to accommodate CPU console, monitor, keyboard and mouse. Pull out tray for printer. Printer stand Size 600X600mm.
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
