School student compound Microscope

With detachable light source also available

Advance Information*

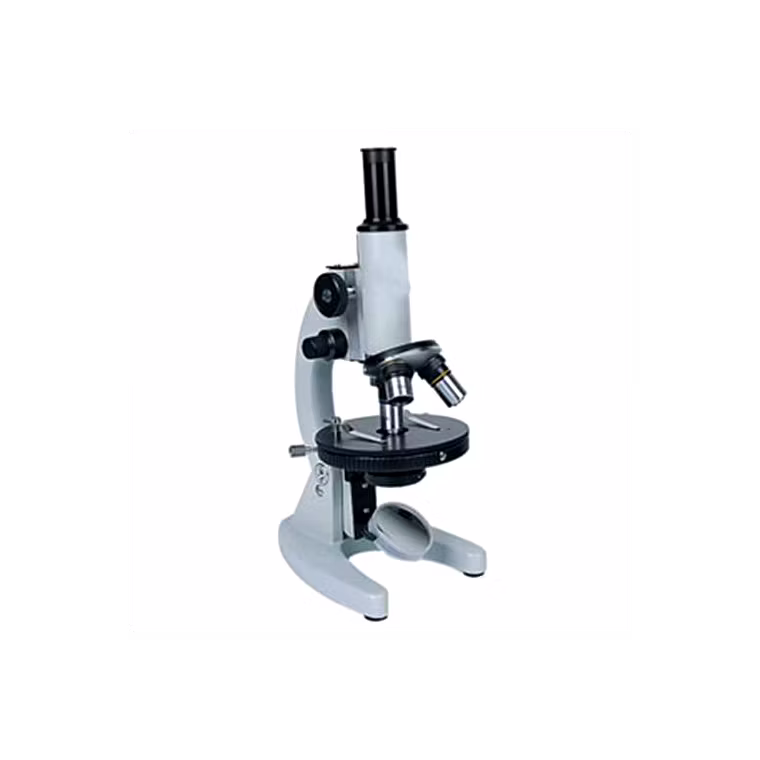

School Student Compound Microscope (RS-5) by AARSON

The School Student Compound Microscope (RS-5) by AARSON is an intermediate-level, precision instrument designed to facilitate advanced scholastic work. With superior optics and a durable build, this microscope is tailored to meet the rigorous demands of the educational environment. Its versatility is exemplified through its extensive range of magnifications, robust stand, and high-quality optics that together make it an essential tool for students venturing into the world of microscopy.

Magnifications

The AARSON RS-5 offers an impressive array of magnifications, enabling detailed observation of various biological specimens. The available magnifications include 20X, 40X, 50X, 100X, 200X, and 400X, with an option to extend up to 450X. This range allows for both low-power surveys and high-power, detailed examinations, making it a versatile tool for classroom settings.

Stand

A highlight of the RS-5 is its sturdy construction. The robust stand is inclinable through 90°, which provides flexibility and ease of use. It also includes both coarse and fine focus adjustments with a variable stop, enabling precise focusing necessary for high-resolution studies. The stand supports a plano-concave mirror and gimble mechanism, ensuring reliable illumination and stable viewing, enhancing the learning experience.

Stage

The fixed square stage of the RS-5 measures 100 x 100 mm and is equipped with stage clips to secure specimen slides. This static design provides stability during observation, important for maintaining focus during extended study sessions.

Optics

The optical system of the AARSON RS-5 is calibrated to deliver sharp, clear images essential for education.

• Eyepieces: The microscope comes with a selection of eyepieces including 5X HY and 10X WF, with an option to upgrade to a 15X eyepiece. These eyepieces provide different magnification levels, catering to various observational needs.

• Objectives: The RS-5 is equipped with achromatic objectives of 4X, 10X, 40X, and 45X. The 40X objective is spring-loaded, which helps protect the slide and the objective lens from damage, a feature crucial in educational settings.

Variants and Diaphragms

The AARSON RS-5 offers several variants, each tailored to specific needs and preferences:

• RS-5A: This variant comes with a five-aperture disc diaphragm to control illumination, priced at 2600-00.

• RS-5B: Features a fixed double lens condenser with an Iris Diaphragm, offering enhanced illumination control, priced at 2800-00.

• RS-5C: A moveable double lens condenser with an Iris Diaphragm. This variant allows adjustable condenser positioning, providing more precise lighting control, priced at 3200-00.

• RS-5D: Similar to the standard RS-5, but includes an inclined eyepiece tube for more comfortable and convenient observation, priced at 3800-00.

• RS-5E: Known as the Junior Medical Microscope, this variant is identical to the RS-5 but includes a graduated slow-motion mechanism for enhanced fine focus control, especially beneficial for detailed medical studies.

Lighting System

The RS-5 is equipped with a plano-concave mirror for natural light reflection, ensuring adequate illumination under various lighting conditions. Additionally, a detachable light source is available, providing flexibility and convenience in poorly lit environments or for more controlled lighting conditions.

Advantages and Educational Benefits

1. Enhanced Learning: With its broad range of magnifications and precision optics, students can explore biological specimens in great detail, enhancing their understanding of complex biological structures and processes.
2. Durability: The robust construction ensures that the microscope can withstand frequent use in educational settings, ensuring longevity and reliability.
3. Flexibility and Control: The inclusion of various diaphragm types and lighting systems allows students and educators to adjust the lighting precisely, improving visibility and depth of field.
4. Comfort and Convenience: Variants like the RS-5D with its inclined eyepiece tube make extended use more comfortable, increasing productivity and reducing student fatigue.

Specifications Summary

• Magnifications: 20X, 40X, 50X, 100X, 200X, 400X, 450X
• Stand: Inclinable through 90°, coarse and fine focus, plano-concave mirror, gimble mechanism, 300 mm high
• Stage: Fixed square stage, 100 x 100 mm, with stage clips
• Eyepieces: 5X HY, 10X WF, 15X optional
• Objectives: Achromatic 4X
