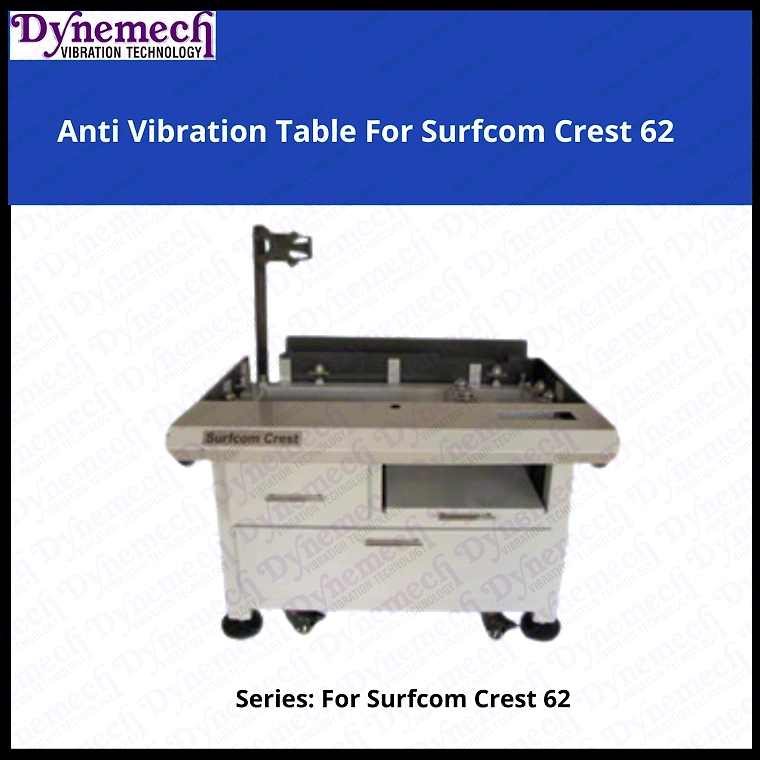

The Dynemech Scientific Lab Anti Vibration Table for Zeiss Surfcom Crest P-62 is engineered for precision and stability in testing and quality laboratories situated in high-vibration environments. With a robust granite surface plate size of L-1100mm x B-550mm x T-50mm, it ensures Grade-1 accuracy ideal for critical measurements. Its HR tubular structure is designed to withstand various industrial vibrations while providing an optimal work surface for analytical and laboratory balances or control scales. The table features advanced vibration damping technology with options for Elastomeric, Pneumatic, or Spring Based Damping to adapt to different vibration profiles. The intelligent design includes a front keyboard panel for easy access to your keyboard and mouse, a laser-cut joystick pocket, and a monitor bracket with swiveling and tilting functions to enhance usability. With anti-vibration pads strategically placed between the structure and the granite base, the table guarantees a stable environment for precise measurements, making it an indispensable tool for advanced laboratories looking for uncompromised accuracy and efficiency in their analysis and testing processes.
Key Features
| Features | Description |
|---|---|
| Granite Surface Plate | L-1100mm x B-550mm x T-50mm with Grade-1 accuracy |
| Structure Material | HR tubular with a cross member |
| Damping Options | Elastomeric, Pneumatic, or Spring Based Damping |
| Keyboard Panel | Front panel with space for keyboard & mouse, including a joystick pocket |
| Monitor Bracket | Swiveling and tilting functionality for optimal positioning |
| Vibration Pads | 9 anti-vibration pads between structure and granite base |
| Mobility | 4 nos - 3” wheels for ease of transport |
| Color & Finish | Structure RAL 9002, Side sheets, doors & keyboard panel in Graphite Grey |
| Attributes | Description |
|---|---|
| Dimensions | Granite: L-1100mm x B-550mm x T-50mm |
| Base Structure | 60x60 mm HR tubular structure with 4 nos DLP3 cross members |
| Weight Capacity | Designed for laboratory balances and control scales with standard loads |
| Leveling Feet | Incorporated for surface leveling and installation of insulation plates |
| Vibration Insulation | Implemented at two locations: beneath the granite and at the base |
| Finish Options | RAL 9002 for structure and Graphite Grey for side sheets and doors |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Granite base of size: L-1100 B-550 T-50 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front keyboard panel provided for placing
keyboard & mouse over the surface
with laser cut joystick pocket with top rim and Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-1100 B-550 T-50 mm
60x60 mm HR tubular structure with cross member
4 nos DLP3 at ground level, 4 nos - 3” wheel
9 nos AV pad between structure and granite base
Front keyboard panel provided for placing
keyboard & mouse over the surface
with laser cut joystick pocket with top rim and Monitor Bracket on L.H Rear with swivelling and tilting fecility Structure- RAL 9002, Side sheet, door & Key board panel- Graphite Grey
