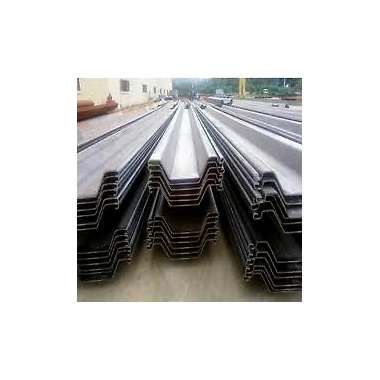

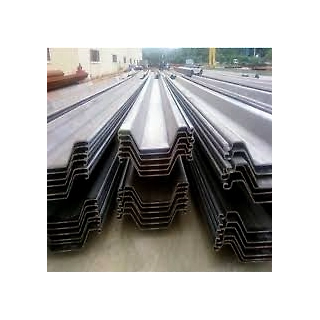

Sheet piles are sections of sheet steel with interlocking edges (or clutches) that are driven into the ground to provide earth retention and excavation support. Vibratory hammers are often used to install sheet piles, although if soils are too hard/dense impact hammers can be used.
Sheet pile walls have been used to support excavations for below-grade parking structures, basements, pump houses, and foundations, to construct cofferdams, and to construct seawalls and bulkheads. Permanent steel sheet piles are designed to provide a long service life.
Country Of Origin : India
Sheet piles are crucial components in modern construction and civil engineering projects, renowned for their versatility and effectiveness in providing earth retention and excavation support. Comprising sections of sheet steel with interlocking edges (also known as clutches), sheet piles are driven into the ground, creating a continuous barrier that can hold back soil and water. This description will cover various aspects of sheet piles, including their types, applications, benefits, installation methods, technical specifications, and more, offering a comprehensive guide for understanding and implementing these essential construction materials.
Steel sheet piles are the most common type used in construction due to their high strength and durability. They can withstand significant pressure from soil and water, making them ideal for a wide range of applications.
Types of Steel Sheet Piles: - Z-Shaped: Characterized by their zigzag form, Z-shaped sheet piles provide excellent strength and are often used in deep excavations and retaining walls. - U-Shaped: U-shaped sheet piles have a uniform cross-section that offers good resistance to bending, suitable for temporary structures. - Straight-Web: These sheet piles have a flat appearance and are often used for projects that require minimal deformation.
Vinyl and PVC sheet piles are lightweight and corrosion-resistant alternatives to steel. They are preferred for projects where exposure to saltwater or chemical pollutants is a concern.
Composite sheet piles combine materials such as steel and plastic to leverage the strengths of both. These piles are designed for specific applications where unique challenges must be addressed.
Sheet piles are incredibly versatile and are employed in various applications, including but not limited to:
Sheet piles are used to retain soil in situations where the ground is at risk of collapsing into excavations. This includes excavation support for: - Below-Grade Parking Structures: Providing support for multi-level parking facilities constructed below ground level. - Basements: Assisting in the creation of basements for residential and commercial buildings. - Foundations: Offering stability for the foundation of buildings by preventing soil movements.
Sheet piles are vital in constructing cofferdams, temporary structures designed to hold back water and create a dry work environment for bridge piers, dock repairs, and other maritime construction projects.
Building seawalls and bulkheads with sheet piles helps protect coastal and riverside areas from flooding and erosion, ensuring the safety of properties and infrastructures.
Sheet piles can create barriers that contain pollutants and prevent contamination of surrounding soil and groundwater, crucial in environmental remediation projects.
Sheet piles offer numerous advantages that make them indispensable in construction and engineering:
Steel sheet piles, in particular, provide exceptional strength and longevity, withstanding significant pressure from soil and water. They are designed for long-term performance in both temporary and permanent applications.
With various types available, sheet piles can be adapted to a wide range of soil conditions, project requirements, and environmental concerns. Their modular nature allows them to be cut, welded, and adapted to suit specific project needs.
Sheet piles can be rapidly installed, often using vibratory hammers for quick and efficient driving into the ground. This speed of installation can significantly reduce project timelines and associated costs.
Many sheet piles, especially steel ones, can be extracted and reused in other projects, offering cost efficiency and environmental benefits.
Sheet piles can be installed using several methods, depending on the soil conditions, project requirements, and available equipment.
Vibratory hammers are commonly used to install sheet piles, especially in soil conditions that are neither too hard nor too dense. These hammers use rapid vibrations to reduce soil resistance, allowing sheet piles to be driven smoothly into the ground.
For soil conditions that are too hard or dense for vibratory hammers, impact hammers (or pile drivers) may be used. These devices deliver powerful blows to the top of the sheet pile, driving them into harder soils or through obstructions such as cobbles and boulders.
Pressing techniques involve using hydraulic jacks to press the sheet piles into the ground. This method is especially beneficial in urban areas where noise and vibrations from traditional driving methods must be minimized.
In some cases, water jetting can be used to assist in sheet pile installation. High-pressure water jets are directed at the soil, loosening it and reducing the resistance encountered by the sheet pile.
The technical specifications of sheet piles include dimensions, material properties, interlocking mechanisms, and coatings. These specifications can vary significantly based on the type of sheet pile and the requirements of the project.
