Spring Washer Wire

You Save:

Inclusive of all taxes

  • Product not available

Please select seller to proceed:

Send message to seller
Send Inquiry

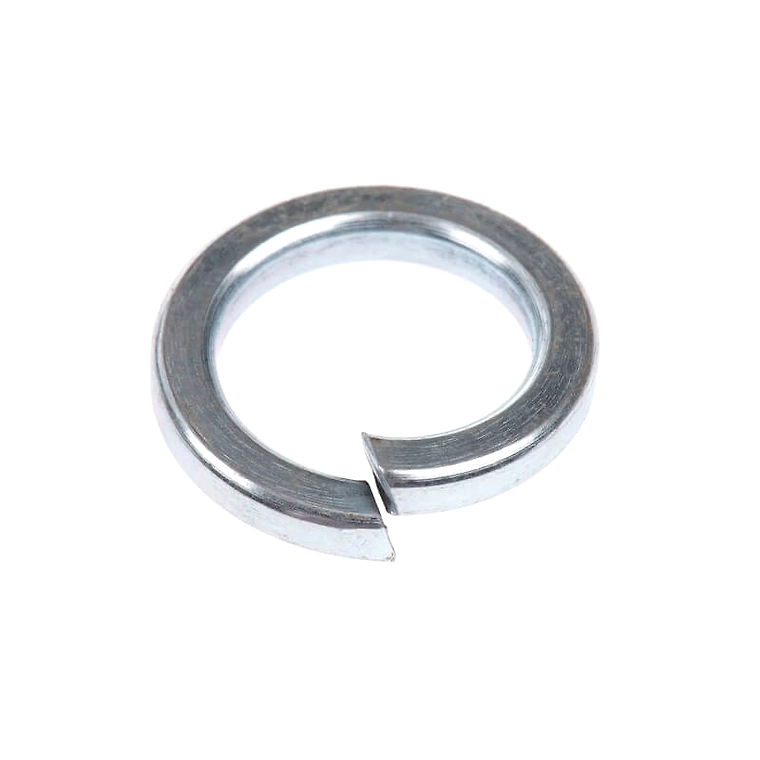

These are shaped wires in Square, Rectangular or Trapezoidal cross section manufactured from high carbon steel.The primary purpose of spring washers is to provide tension and preload in a joint assembly. This helps to maintain clamping force and prevent loosening or loss of tension due to vibration, thermal cycling, or other factors.

Country Of Origin : India

  • Additional information

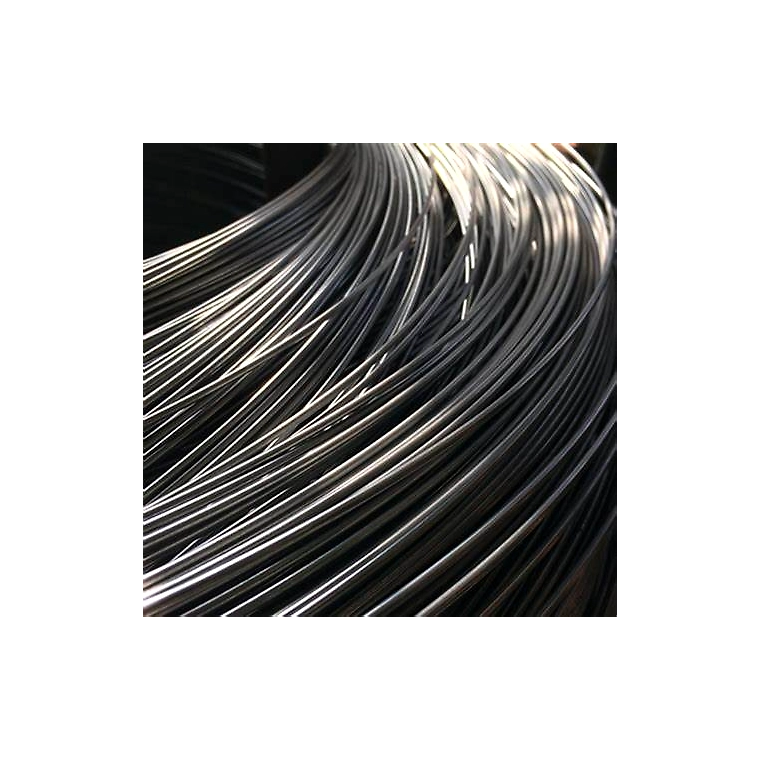

    The spring washer wires are made using the high carbon wire rods. The wires are cold drawn and annealed as per the size requirements of the customers. We manufacture such wires ranging from 3.00mm to 10.00mm diameters.



    Advance Information*

    Product Description

    Spring washer wire is an essential component in the production of spring washers, which play a critical role in various mechanical and industrial applications. These wires are meticulously crafted to ensure high performance, durability, and reliability in demanding environments. This comprehensive guide delves into the detailed aspects of spring washer wires, covering their material composition, manufacturing process, applications, and available specifications.

    Material Composition

    Spring washer wires are made from high-quality high carbon steel. The high carbon content in the steel imparts exceptional hardness and tensile strength, which are crucial for the functionality of spring washers. The high carbon steel used is specifically selected for its capability to endure significant stress and resist deformation under load. This makes the spring washer wire ideal for applications requiring high levels of tension and preload.

    • Base Material: High Carbon Steel
    • Carbon Content: Typically ranges around 0.60% - 0.90%
    • Other Alloying Elements: Manganese, Silicon, and Trace elements to enhance mechanical properties

    Cross-Sectional Profiles

    One of the defining characteristics of spring washer wires is their unique cross-sectional profiles. Unlike standard round wires, these wires are shaped into specific geometries to fulfill their functional requirements better.

    • Square Cross Section: Offers uniform load distribution and high structural integrity. Ideal for applications where equal distribution of force is crucial.

    • Rectangular Cross Section: Provides greater surface contact area, which enhances the friction and clamping force in assemblies. Suitable for diverse applications including those requiring high levels of preload.

    • Trapezoidal Cross Section: Combines benefits of both square and rectangular profiles, offering optimal load distribution and greater flexibility in design.

    Manufacturing Process

    The manufacturing of spring washer wires involves several precise and controlled steps to ensure the final product meets stringent quality standards.

    1. Raw Material Selection: High carbon wire rods are carefully chosen to serve as the base material.

    2. Cold Drawing: The wire rods undergo a cold drawing process, where they are pulled through a die to reduce their diameter and increase their length without heating. This process enhances the mechanical properties, resulting in improved strength and hardness.

    3. Shaping: The wires are then shaped into their respective cross-sectional profiles (square, rectangular, or trapezoidal) using precision tools and techniques.

    4. Annealing: To relieve the internal stresses induced during the cold drawing process, the wires are annealed. This heat treatment process involves heating the wire to a specific temperature and then cooling it slowly to achieve the desired ductility and toughness.

    5. Quality Control: The wires undergo rigorous quality control checks to ensure they meet the specified dimensional tolerances and mechanical properties.

    6. Finishing: After quality checks, the wires receive finishing treatments such as coating or plating, if required, to enhance their resistance to corrosion and wear.

    Specifications

    The spring washer wires are available in various diameters and can be customized according to specific requirements.

    • Diameter Range: 3.00mm to 10.00mm
    • Tolerance: Precise control over diameter with tolerances adhering to international standards (typically ±0.01mm to ±0.05mm depending on size)
    • Surface Finish: Smooth and uniform surface finish to eliminate imperfections and enhance performance
    • Mechanical Properties:
    • Tensile Strength: High tensile strength to withstand significant loads
    • Hardness: Rigorous hardness levels suitable for industrial applications
    • Elasticity: High elasticity to ensure effective tension and preload in assemblies

    Applications

    Spring washer wires are indispensable in various sectors due to their ability to provide tension and maintain clamping force in assemblies.

    1. Automotive Industry: Used in vehicle assemblies to prevent loosening of components due to vibrations.

    2. Aerospace Industry: Essential for high-stress environments where temperature fluctuations and vibrations are common.

    3. Construction: Utilized in building frameworks and machinery where maintaining joint integrity is critical.

    4. Electronics: Employ in devices and appliances to ensure secure connections.

    5. General Manufacturing: Applied in the production of machinery, equipment, and tools requiring reliable joints.

    Advantages

    The design and manufacturing of spring washer wires offer several advantages:

    • Superior Strength: High carbon steel composition ensures maximum strength and load-bearing capability.
    • Enhanced Durability: Exceptional resistance to wear, deformation, and fatigue under continuous load.
    • Versatility: Availability in different cross-sections and sizes to cater to various industrial needs.
    • Reliable Performance: Maintains clamping force under a wide range of environmental and mechanical conditions.
    • Customization: Can be tailored to specific requirements for unique applications.

    Spring washer wires are a testament to advanced metallurgical and manufacturing techniques aimed at producing high-performance components for critical applications. By understanding the intricate details of these wires, industries can leverage their unique properties to enhance the safety, reliability, and efficiency of
