STAINLESS STEEL PIPE FITTINGS

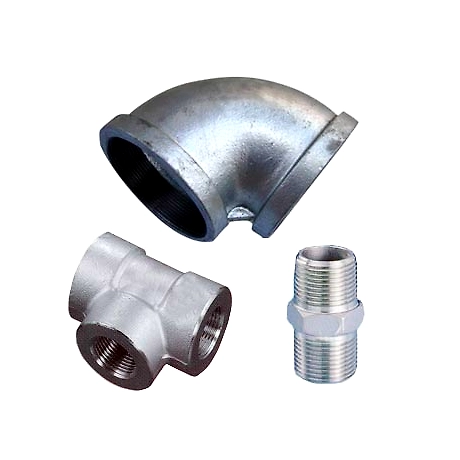

Here are some common types of stainless steel pipe fittings:

Elbows: Used to change the direction of the flow. They come in various angles, such as 45 degrees and 90 degrees.

Tees: Shaped like the letter "T," these fittings allow for branching a pipe into two directions.

Reducers: Used to connect pipes of different diameters, reducing the size of the flow from a larger to a smaller pipe.

Couplings: Used to connect two pipes together. There are full couplings for joining pipes of the same size and half couplings for joining pipes of different sizes.

Adapters: Used to connect pipes to different types of fittings or equipment.

Caps and Plugs: Used to close the end of a pipe. Caps are used for permanently closing, while plugs can be removed if needed.

Unions: Allow for easy disconnection of pipes for maintenance or replacement.

Bushings: Used to connect pipes of different sizes and are often threaded.

Crosses: Have four openings for connecting pipes and are used in some special configurations.

Flanges: Provide a method of connecting pipes, valves, pumps, and other equipment to form a piping system. They are usually welded or screwed into the pipes and then bolted together.

Advance Information*

Stainless Steel Pipe Fittings

Stainless steel pipe fittings are indispensable components utilized to connect, control, and alter the direction of pipes within numerous systems. Renowned for their robust resistance to corrosion, high temperature, and high pressure, these fittings find crucial applications across varied industrial sectors, including oil and gas, chemical processing, water treatment, food and beverage, and pharmaceuticals.

Key Characteristics of Stainless Steel Pipe Fittings

• Corrosion Resistance: Stainless steel's inherent property to resist corrosion makes these fittings ideal for environments exposed to harsh chemicals and moisture.
• High-Temperature Sustainability: With the ability to withstand extreme temperatures, these fittings ensure consistent and reliable performance in high-heat applications.
• Mechanical Strength: The robustness and durability of stainless steel ensure these fittings can handle high pressure without deformation or failure.
• Hygienic and Non-Reactive: Especially vital in food and beverage, as well as pharmaceutical industries, stainless steel does not react with or contaminate the substances it comes into contact with.

Common Types of Stainless Steel Pipe Fittings

1. Elbows

Elbows are utilized to alter the direction of the flow within a piping system. Available in various angles, typically 45 degrees and 90 degrees, they provide flexibility in configuring pipelines to meet specific spatial and process requirements.

• 45-Degree Elbows: Useful for minor directional changes, reducing friction and potential pressure drop.
• 90-Degree Elbows: Vital for sharp turns, efficiently redirecting flow with minimal space utilization.

2. Tees

Tee fittings, shaped like the letter "T", facilitate the branching of pipelines into different directions. They are indispensable for creating branch lines from main pipelines in both equal (straight tees) and unequal sizes (reducing tees).

• Equal Tees: Allows for straight branches of equal diameter.
• Reducing Tees: Connect pipes of differing diameters, combining or dividing flows at various rates.

3. Reducers

Reducers are used to connect pipes of different diameters, managing the transition in the flow size between a larger pipe and a smaller one.

• Concentric Reducers: Funnel-shaped, maintaining a symmetrical alignment of the pipeline.
• Eccentric Reducers: Off-center, providing a levelled top or bottom edge for unique flow requirements.

4. Couplings

Couplings serve the purpose of joining two pipes together. They exist in two main forms:

• Full Couplings: Join pipes of the same diameter, assuring a seamless extension.
• Half Couplings: Used for connecting pipes of disparate sizes or enabling connections with smaller diameter pipes.

5. Adapters

Adapters offer connectivity between pipes and different types of fittings or equipment. They convert one type of end connection to another, such as from threaded to slip fit or vice versa.

6. Caps and Plugs

Caps and plugs close off the ends of pipes.

• Caps: Permanently seal the pipe end, providing a secure and leak-proof closure.
• Plugs: Allow temporary closure and can be removed when necessary, facilitating maintenance or system reconfigurations.

7. Unions

Unions facilitate easy disconnection and reconnection of pipes, crucial for maintenance or replacement operations. Comprising three interconnected sections, unions can be swiftly dismantled without necessitating pipe cutting.

8. Bushings

Bushings connect pipes of varying sizes and are often threaded. They provide a secure transition between small-diameter and large-diameter pipes, preserving the integrity and flow within the system.

9. Crosses

Cross fittings have four openings at right angles from each other, employed in special configurations where branched connections are needed, ensuring even flow distribution across multiple channels.

10. Flanges

Flanges provide a robust method for connecting pipes, valves, pumps, and other equipment to complete piping systems. Typically bolted together after being welded or screwed to the pipe ends, flanges ensure a sturdy and leak-free connection.

Material and Quality Standards

The quality and performance of stainless steel pipe fittings are governed by stringent material and manufacturing standards:

• Material Composition: Predominantly composed of grades like 304, 316, and 316L for their enhanced corrosion resistance and mechanical properties.
• Standards Compliance: Adheres to international standards such as ASTM, ANSI, ASME, and DIN, ensuring uniformity, reliability, and safety.
• Surface Finish: Available in various finishes including polished, brushed, and passivated, meeting aesthetic and functional requirements.
• Dimensional Accuracy: Precision-engineered to ensure tight tolerances, guaranteeing a perfect fit and seamless assembly.

Applications Across Industries

The versatility of stainless steel pipe fittings makes them indispensable across numerous sectors:

1. Oil and Gas Industry

• Pipeline Systems: Integral in constructing extensive pipeline networks for transporting crude oil and natural gas.
• Refineries: Required for high-temperature
